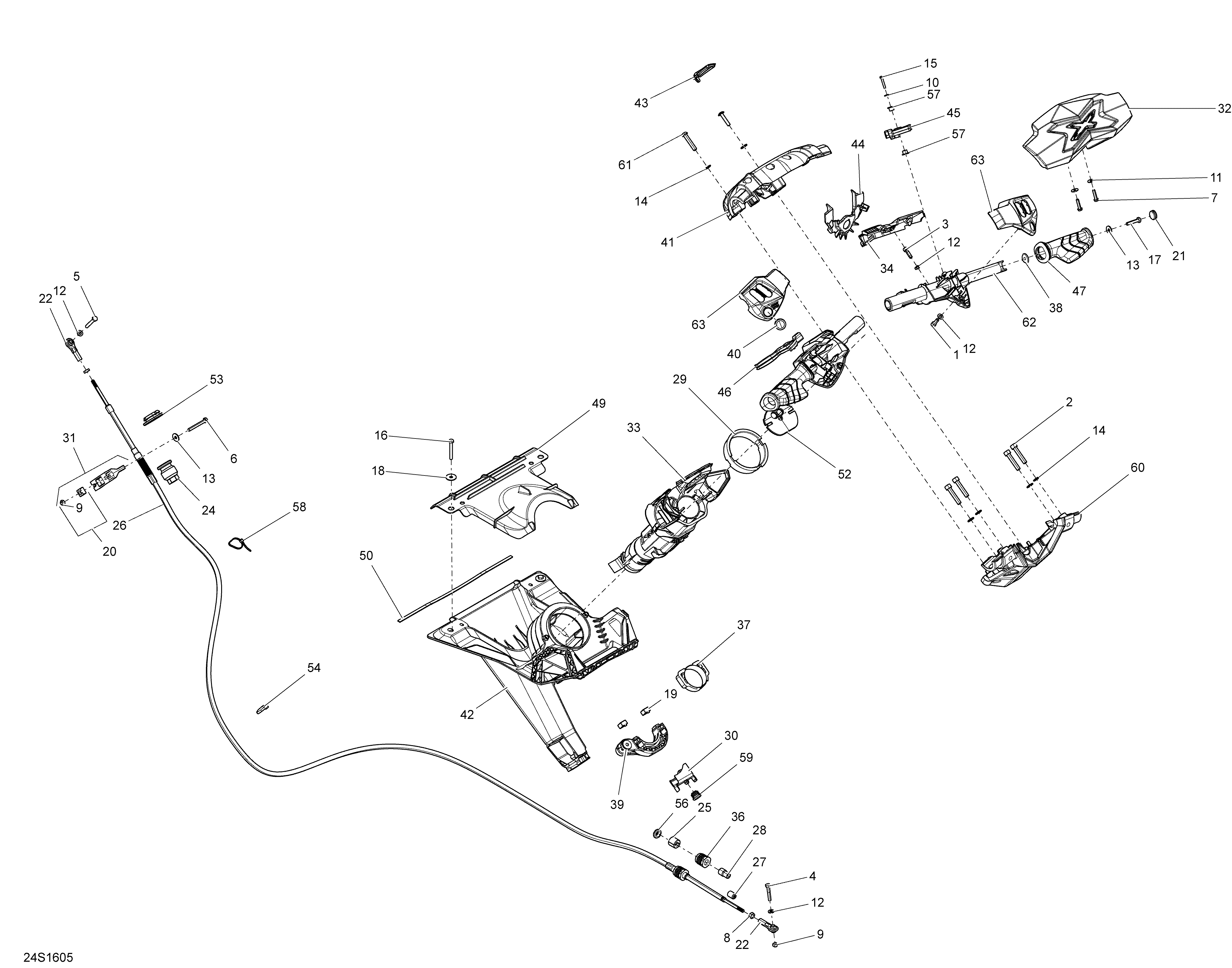

07- Steering для BRP RXP - 2016
-
№АртикулНазвание
-
1205061660 Socket Screw M6 X 16Socket Screw M6 X 16
-
2205084060 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
3205562060 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
4207063560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
4207163560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
5207064060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
6207165060 Hex. Screw M6 X 50Hex. Screw M6 X 50
-
7211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
8211100056 Hex. Nut 1/4''-28Hex. Nut 1/4''-28
-
9232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
10234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
11234052600 Flat Washer 5 mm, StainlessFlat Washer 5 mm, Stainless
-
12234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
13234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
14234080600 Flat Washer M8, StainlessFlat Washer M8, Stainless
-
15241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
16245064560 Hex Cap Screw M6X1.0X45 S.GripHex Cap Screw M6X1.0X45 S.Grip
-
17250000002 Hex. Screw M6 X 30, Scotch GripHex. Screw M6 X 30, Scotch Grip
-
18250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
19269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
20269501166 Nut Housing Ass'yNut Housing Ass'y
-
21277000203 Cap, BlackCap, Black
-
22277000775 Ball JointBall Joint
-
24277000782 Ajustment KnobAjustment Knob
-
25277001527 Half RingHalf Ring
-
26277001578 Steering Cable Ass'ySteering Cable Ass'y
-
27277001582 Small BootSmall Boot
-
28277001583 Large BootLarge Boot
-
29277001653 Wear RingWear Ring
-
30277001654 SpacerSpacer
-
31277001655 Thrust Support Ass'yThrust Support Ass'y
-
32277001683 Handle PadHandle Pad
-
33277001685 Steering ColumnSteering Column
-
34277001688 RH Upper HousingRH Upper Housing
-
34277001686 LH Upper HousingLH Upper Housing
-
36277001729 Steering Cable LockSteering Cable Lock
-
37277001741 Wear RingWear Ring
-
38277001863 Insert Grip HandleInsert Grip Handle
-
39277001872 Steering Arm Support Ass'ySteering Arm Support Ass'y
-
40277001887 Knob Switch, RedKnob Switch, Red
-
41277001909 Front Extension BlocFront Extension Bloc
-
42277001913 Steering Support Ass'ySteering Support Ass'y
-
43277001919 Aesthetic CapAesthetic Cap
-
44277001920 Radio Frequency Key SupportRadio Frequency Key Support
-
45277001944 Throttle HandleThrottle Handle
-
46277001945 Reverse HandleReverse Handle
-
47277001946 Handle Grip RHHandle Grip RH
-
47277001958 Handle Grip LHHandle Grip LH
-
49293000117 DeflectorDeflector
-
50293250008 GasketGasket
-
52293720086 GrommetGrommet
-
53293720090 Cable GrommetCable Grommet
-
54293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
56293830063 Rubber WasherRubber Washer
-
57293900091 BushingBushing
-
58414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
59517302716 CapCap
-
60277001926 Rear Extension BlockRear Extension Block
-
61250000845 Torx-Button M/S M8 X 40 Stlss S.GriTorx-Button M/S M8 X 40 Stlss S.Gri
-
62277001965 Housing LHHousing LH
-
62277001966 Housing RHHousing RH
-
63277001718 RH Housing CoverRH Housing Cover
-
63277001794 LH Housing CoverLH Housing Cover
