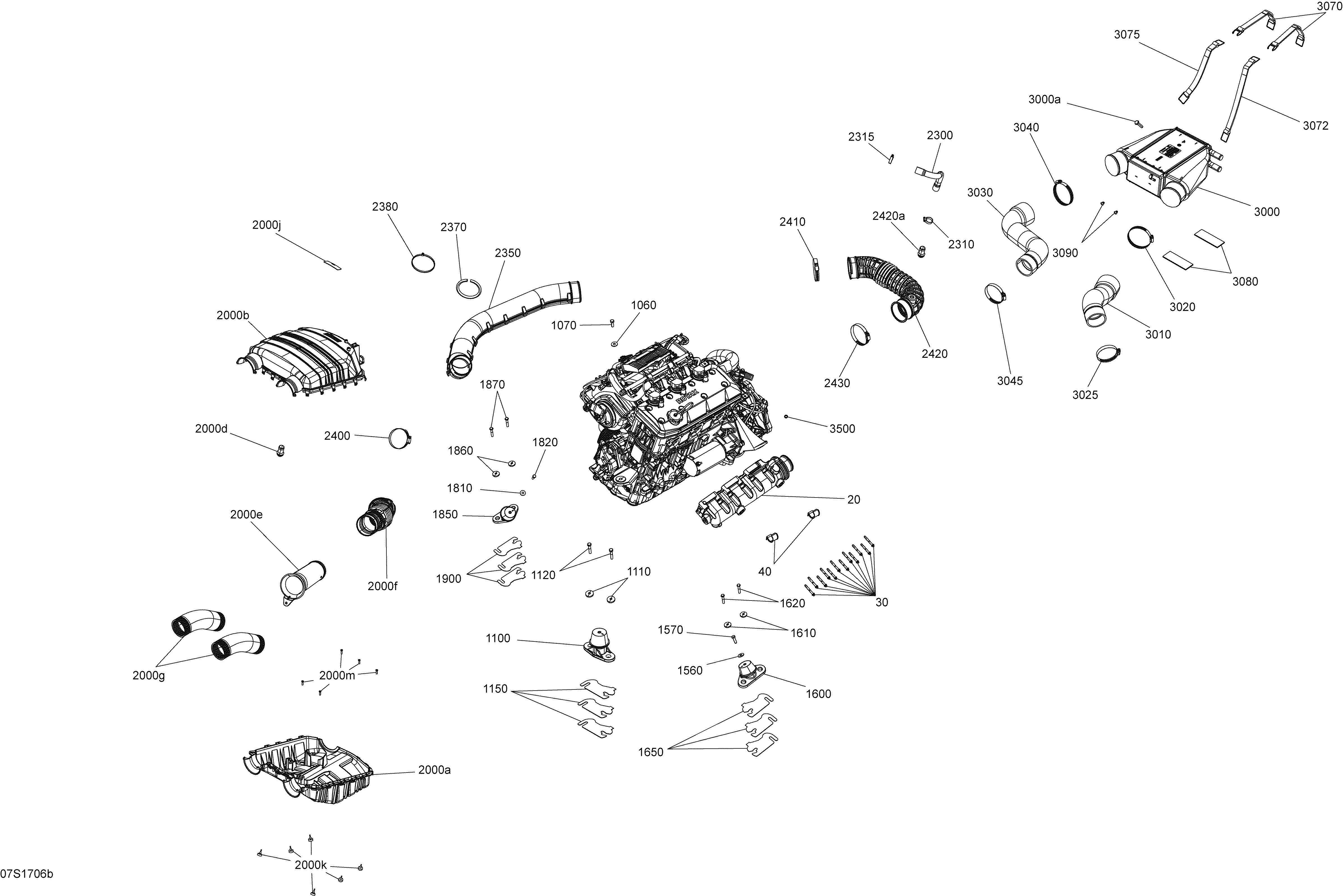

01- Engine - Except 900HO ACE для BRP GTI-GTR-GTS - 2017
-
№АртикулНазвание
-
20274001553 Engine Exhaust ManifoldEngine Exhaust Manifold
-
30420641198 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
40275500664 Retainer. Model GTIRetainer. Model GTI
-
1060234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
1070207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
1100270000885 Rubber MountRubber Mount
-
1110250200018 Cone WasherCone Washer
-
1120250000782 Hexagonal Head Cap Screw M8 X 45Hexagonal Head Cap Screw M8 X 45
-
1150270000762 Shim 1.3 mmShim 1.3 mm
-
1560234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
1570207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
1600270000882 Rubber MountRubber Mount
-
1610250200018 Cone WasherCone Washer
-
1620250000782 Hexagonal Head Cap Screw M8 X 45Hexagonal Head Cap Screw M8 X 45
-
1650270000762 Shim 1.3 mmShim 1.3 mm
-
1810234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
1820207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
1850270000882 Rubber MountRubber Mount
-
1860250200018 Cone WasherCone Washer
-
1870250000782 Hexagonal Head Cap Screw M8 X 45Hexagonal Head Cap Screw M8 X 45
-
1900270000762 Shim 1.3 mmShim 1.3 mm
-
2000a273000342 Airbox Base. Model GTRAirbox Base. Model GTR
-
2000a273000354 Airbox Base. Model GTIAirbox Base. Model GTI
-
2000b273000373 Airbox Cover. Model GTRAirbox Cover. Model GTR
-
2000b273000371 Airbox Cover. Model GTIAirbox Cover. Model GTI
-
2000d273000234 Breather. Model GTIBreather. Model GTI
-
2000e273000359 Intake Hose. Model GTRIntake Hose. Model GTR
-
2000e273000358 Intake Hose. Model GTIIntake Hose. Model GTI
-
2000f273000306 Hose Connector. Model GTRHose Connector. Model GTR
-
2000f273000292 Hose Connector. Model GTIHose Connector. Model GTI
-
2000g273000290 Air Silencer HoseAir Silencer Hose
-
2000j219903177 Notice Decal, Air SilencerNotice Decal, Air Silencer
-
2000k708000759 Rubber StopperRubber Stopper
-
2000m250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
2300270000949 Formed Hose. Model GTIFormed Hose. Model GTI
-
2300270000950 Formed Hose. Model GTRFormed Hose. Model GTR
-
2310293650051 Tridon Gear ClampTridon Gear Clamp
-
2315293650051 Tridon Gear ClampTridon Gear Clamp
-
2350273000311 Intake Hose, Center. Model GTRIntake Hose, Center. Model GTR
-
2370415110000 Polyurethane Hose 5.2 mm. Model GTRPolyurethane Hose 5.2 mm. Model GTR
-
2380293750008 Tie-Rap 350 mm. Model GTRTie-Rap 350 mm. Model GTR
-
2400293650179 Tridon ClampTridon Clamp
-
2410293650179 Tridon Clamp. Model GTRTridon Clamp. Model GTR
-
2420>2420a273000328 Hose Intake, Rear. Model GTR. Includes 2420 to 2420aHose Intake, Rear. Model GTR. Includes 2420 to 2420a
-
2420a273000234 Breather. Model GTRBreather. Model GTR
-
2430293650179 Tridon Clamp. Model GTRTridon Clamp. Model GTR
-
3000>3000a276000397 Intercooler. Model GTR. Includes 3000 to 3000aIntercooler. Model GTR. Includes 3000 to 3000a
-
3000a271001942 Anode Zinc. Model GTRAnode Zinc. Model GTR
-
3010273000367 Inlet Hose. Model GTRInlet Hose. Model GTR
-
3020293650244 Tridon Gear Clamp. Model GTRTridon Gear Clamp. Model GTR
-
3025293650179 Tridon Clamp. Model GTRTridon Clamp. Model GTR
-
3030273000368 Outlet Hose. Model GTROutlet Hose. Model GTR
-
3040293650244 Tridon Gear Clamp. Model GTRTridon Gear Clamp. Model GTR
-
3045293650179 Tridon Clamp. Model GTRTridon Clamp. Model GTR
-
3070293850094 Fuel Tank Strap. Model GTRFuel Tank Strap. Model GTR
-
3072293850123 Fuel Tank Strap. Model GTRFuel Tank Strap. Model GTR
-
3075293850123 Fuel Tank Strap. Model GTRFuel Tank Strap. Model GTR
-
3080293830178 Pad-Rubber. Model GTRPad-Rubber. Model GTR
-
3090293730016 Dart, Black. Model GTRDart, Black. Model GTR
-
3500293750002 Tie-Rap 142 mmTie-Rap 142 mm
