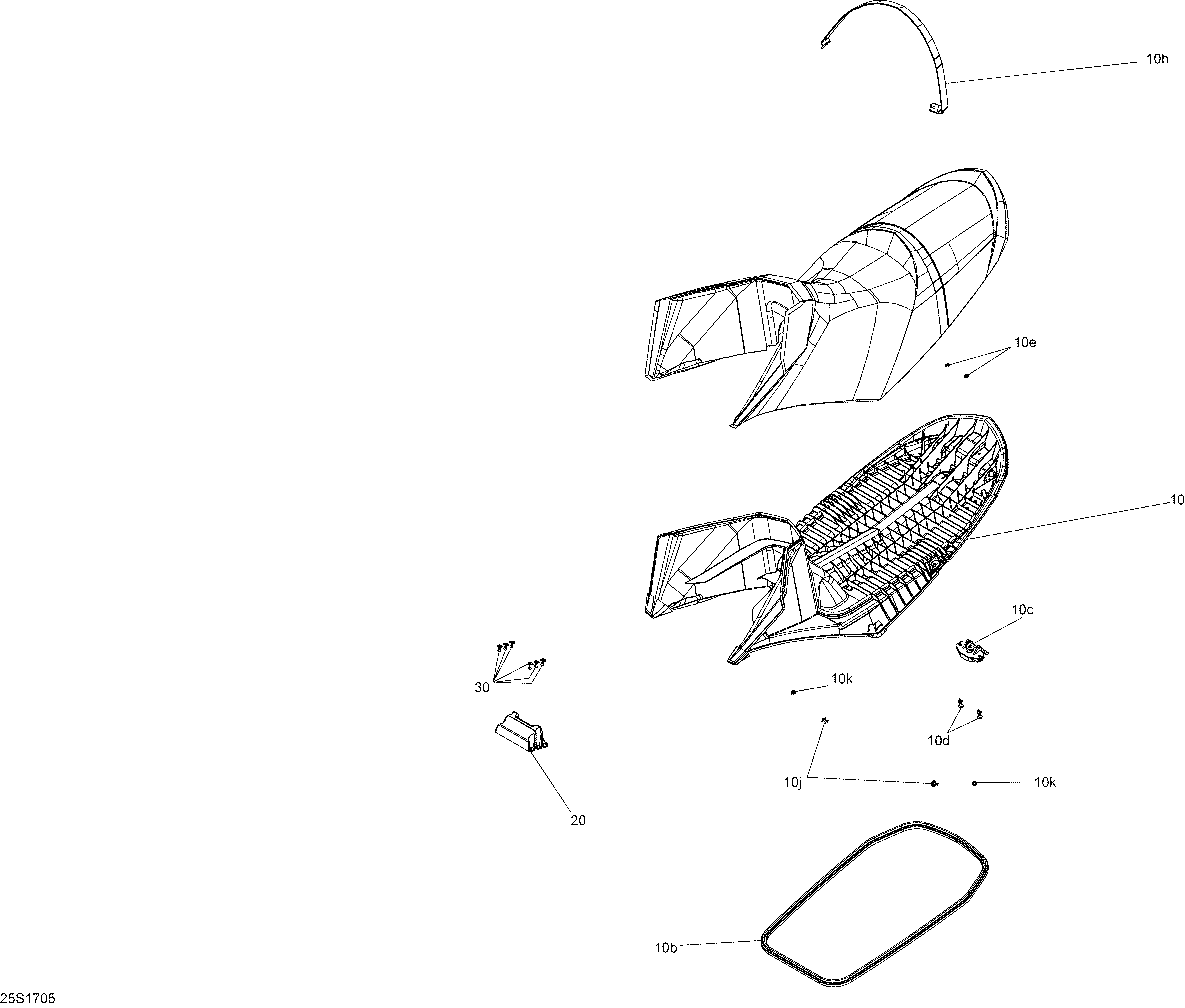

09- Seat - All Models для BRP GTI-GTR-GTS - 2017
-
№АртикулНазвание
-
10>10k269002983 Seat Ass'y. Model GTI, GTI 155. Includes 10 to 10kSeat Ass'y. Model GTI, GTI 155. Includes 10 to 10k
-
10>10k269002985 Silver Seat Ass'y. Model GTI SE, SE 130, SE 155, Black. Includes 10 to 10kSilver Seat Ass'y. Model GTI SE, SE 130, SE 155, Black. Includes 10 to 10k
-
10>10k269003047 Seat Ass'y. Model GTI SE, SE 130, SE 155, Orange. Includes 10 to 10kSeat Ass'y. Model GTI SE, SE 130, SE 155, Orange. Includes 10 to 10k
-
10>10k269002921 Seat Ass'y. Model GTI LTD 155. Includes 10 to 10kSeat Ass'y. Model GTI LTD 155. Includes 10 to 10k
-
10>10k269002987 Seat Ass'y. Model GTS. Includes 10 to 10kSeat Ass'y. Model GTS. Includes 10 to 10k
-
10>10k269003057 Seat Ass'y. Model GTR. Includes 10 to 10kSeat Ass'y. Model GTR. Includes 10 to 10k
-
10>10k269003027 Seat Ass'y. Model GTR-X. Includes 10 to 10kSeat Ass'y. Model GTR-X. Includes 10 to 10k
-
10b293200124 SealSeal
-
10c269700109 Latch Ass'yLatch Ass'y
-
10d293150151 Rivet 1/4''Rivet 1/4''
-
10e234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
10h269002849 Seat Strap. Model GTISeat Strap. Model GTI
-
10h269002087 Seat Strap. Model GTI SE BlackSeat Strap. Model GTI SE Black
-
10h269003050 Seat Strap. Model GTI SE OrangeSeat Strap. Model GTI SE Orange
-
10h269002526 Seat Strap. Model GTI LTD 155Seat Strap. Model GTI LTD 155
-
10h269001916 Seat Strap. Model GTSSeat Strap. Model GTS
-
10h269002526 Seat Strap. Model GTRSeat Strap. Model GTR
-
10h269002364 Seat Strap. Model GTR-XSeat Strap. Model GTR-X
-
10j293150067 RivetRivet
-
10k293720067 GrommetGrommet
-
20269002151 Seat Receptacle. Except Model GTR-XSeat Receptacle. Except Model GTR-X
-
30293150123 Pop Rivet 3/16''. Except Model GTR-XPop Rivet 3/16''. Except Model GTR-X
