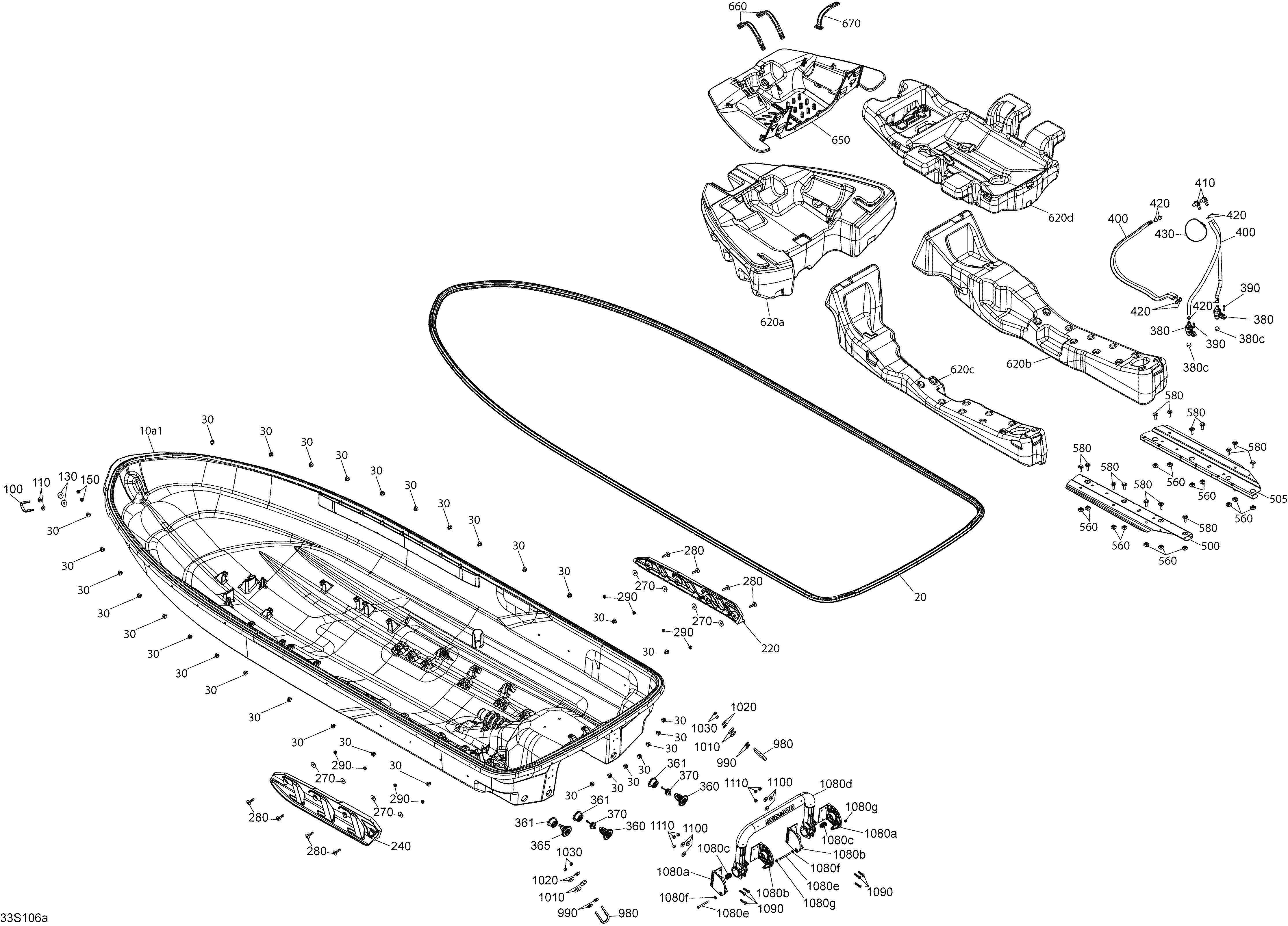

09- Hull - 900HO ACE для BRP GTI-GTR-GTS - 2017
-
№АртикулНазвание
-
10>10a1295501165 Hull. Includes 10 to 10a1Hull. Includes 10 to 10a1
-
10a>10a1295501139 Insert Hull Kit. Includes 10a to 10a1Insert Hull Kit. Includes 10a to 10a1
-
10a1250000711 Torx Screw M6 X 20Torx Screw M6 X 20
-
20292001940 SealSeal
-
30291003793 InsertInsert
-
100292000933 U-ClampU-Clamp
-
110293050001 Flat WasherFlat Washer
-
130250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
150232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
220292001953 Sponson RHSponson RH
-
240292001954 Sponson LHSponson LH
-
270250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
280250000697 Torx Screw M8 X 35Torx Screw M8 X 35
-
290232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
360292001580 Drain Ass'yDrain Ass'y
-
361292001825 Plastic NutPlastic Nut
-
365292001317 Drain Neck Ass'y. Plug 292001352Drain Neck Ass'y. Plug 292001352
-
370292001583 Plug Ass'yPlug Ass'y
-
380>380c292001636 Bailer Pick-up Ass'y. Includes 380 to 380cBailer Pick-up Ass'y. Includes 380 to 380c
-
380c293830080 Floating BallFloating Ball
-
390211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
400275000008 Hose 12 mm, MeterHose 12 mm, Meter
-
410293710152 Fitting Elbow 90°Fitting Elbow 90°
-
420293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
430293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
500292001961 Hull Stiffener LHHull Stiffener LH
-
505292001965 Hull Stiffener RHHull Stiffener RH
-
560269501943 Elastic Nut Housing M8Elastic Nut Housing M8
-
580250000888 Hexagonal Screw M8 X 30Hexagonal Screw M8 X 30
-
620a292001947 Lower Front FoamLower Front Foam
-
620b292001948 Central Foam RHCentral Foam RH
-
620c292001949 Central Foam LHCentral Foam LH
-
620d292001950 Fuel Tank FoamFuel Tank Foam
-
650292001868 Trunk ShieldTrunk Shield
-
660269500408 StrapStrap
-
670269500408 StrapStrap
-
980292000933 U-ClampU-Clamp
-
990279000164 Flat WasherFlat Washer
-
1020250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
1030232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
1080a292001509 A Section Support. SEA Section Support. SE
-
1080b292001510 B Section Support. SEB Section Support. SE
-
1080c292001259 Spring. SESpring. SE
-
1080d292001204 Overmolded Bar. SEOvermolded Bar. SE
-
1080e207066560 Hex. Screw M6 x 65. SEHex. Screw M6 x 65. SE
-
1080f234061600 Flat Washer M6, Stainless. SEFlat Washer M6, Stainless. SE
-
1080g232561600 Hex. Elastic Stop Nut M6. SEHex. Elastic Stop Nut M6. SE
-
1090250000924 Truss Cone Torx Screw M6 X 30. SETruss Cone Torx Screw M6 X 30. SE
-
1100234062600 Flat Washer M6, Stainless. SEFlat Washer M6, Stainless. SE
-
1110232561200 Elastic Stop Nut M6, Brass. SEElastic Stop Nut M6, Brass. SE
