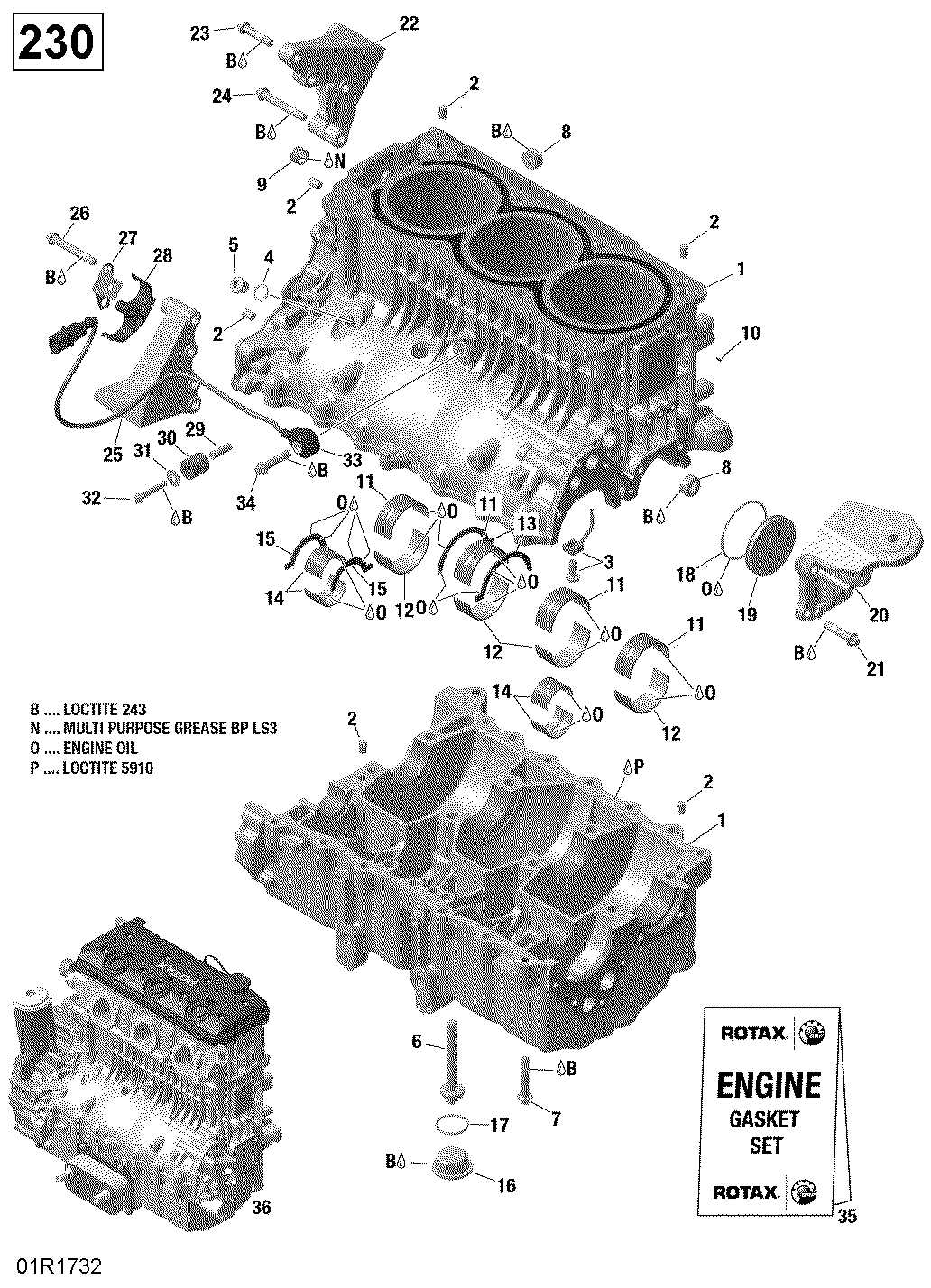

01- Engine Block - 230 для BRP GTI-GTR-GTS - 2017
-
№АртикулНазвание
-
1>9420893166 Engine Block Ass'y 1503 PlasmaEngine Block Ass'y 1503 Plasma
-
2420632010 Center Pin 8 X 12Center Pin 8 X 12
-
3420956778 Oil Hole AdaptorOil Hole Adaptor
-
4420250015 Washer, CopperWasher, Copper
-
5420841923 Plug Screw M12Plug Screw M12
-
6420641120 Torx Flanged Screw M10 X 82Torx Flanged Screw M10 X 82
-
7420641208 Hex. Flanged Screw M8 X 45Hex. Flanged Screw M8 X 45
-
8420641317 Plug Screw M20 X 1.5Plug Screw M20 X 1.5
-
9420232482 Needle BushingNeedle Bushing
-
10420249073 Grooved PinGrooved Pin
-
11420933456 Plain Half-BearingPlain Half-Bearing
-
12420933466 Plain Half-BearingPlain Half-Bearing
-
13420933475 Half-RingHalf-Ring
-
14420933442 Plain Bearing HalfPlain Bearing Half
-
15420933470 Half-RingHalf-Ring
-
16>17420641171 Plug Screw M30 X 1.5Plug Screw M30 X 1.5
-
17420631300 O-RingO-Ring
-
18420430405 O-RingO-Ring
-
19420660110 Plug CoverPlug Cover
-
20420811792 Front Engine BracketFront Engine Bracket
-
21420641188 Flanged Torx Screw M8 X 35Flanged Torx Screw M8 X 35
-
22420811787 Engine Bracket PTO, ExhaustEngine Bracket PTO, Exhaust
-
23420641188 Flanged Torx Screw M8 X 35Flanged Torx Screw M8 X 35
-
24420641213 Flanged Torx Screw M8 X 55Flanged Torx Screw M8 X 55
-
25420811782 Engine Bracket PTO, IntakeEngine Bracket PTO, Intake
-
26420641213 Flanged Torx Screw M8 X 55Flanged Torx Screw M8 X 55
-
27420851740 Retaining PlateRetaining Plate
-
28420660290 Hose BracketHose Bracket
-
29420847971 SpacerSpacer
-
30420660090 Rubber BracketRubber Bracket
-
31420827968 Flat Washer M6Flat Washer M6
-
32420641258 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
33420664031 Noise SensorNoise Sensor
-
34420641188 Flanged Torx Screw M8 X 35Flanged Torx Screw M8 X 35
-
35420889774 Gasket SetGasket Set
-
36420150332 Long Block EngineLong Block Engine
