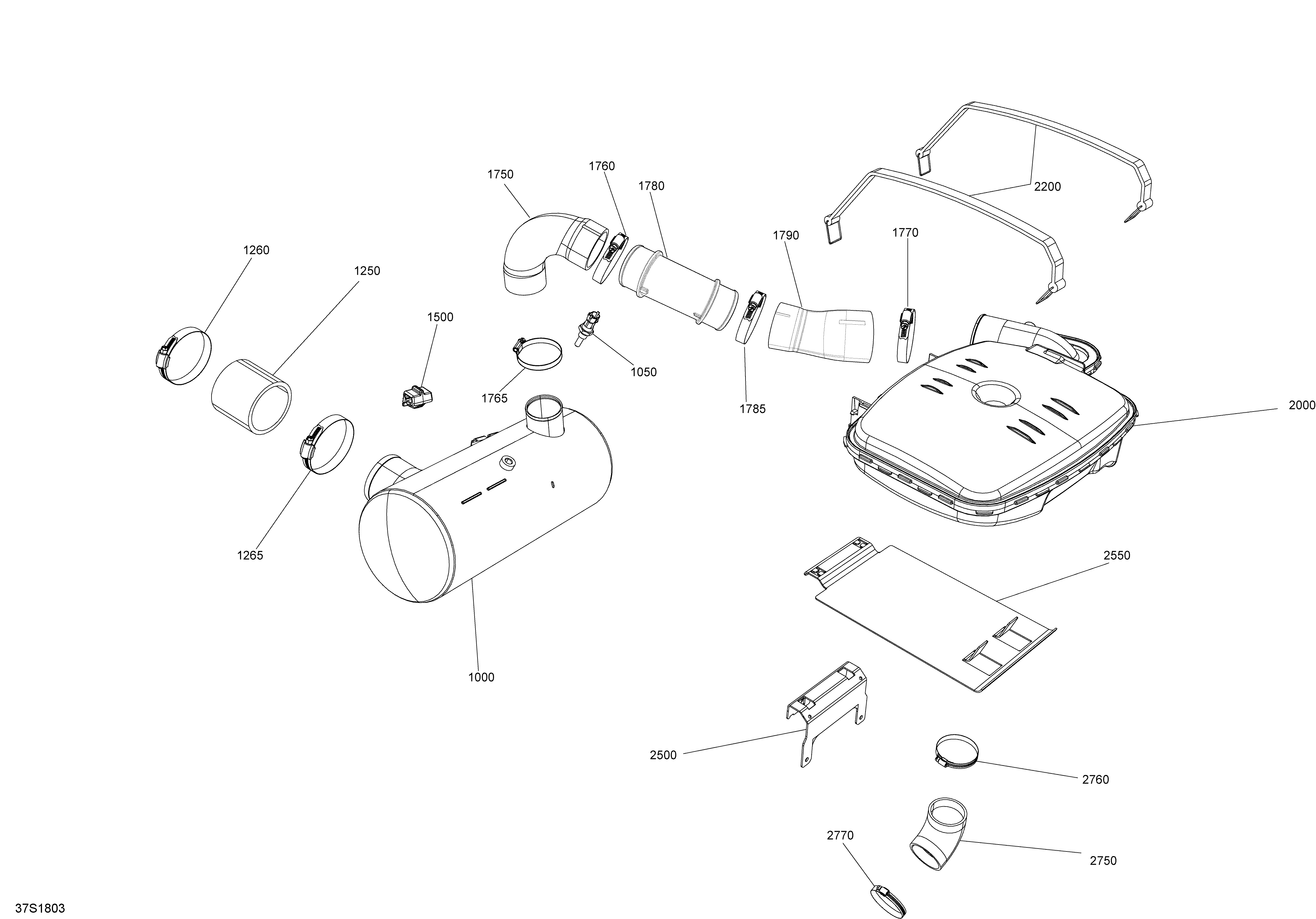

01- Exhaust 900 HO ACE для BRP 1- GTI 90 - 2018
-
№АртикулНазвание
-
1000274001618 MufflerMuffler
-
1050278002895 Temperature SensorTemperature Sensor
-
1250274001453 Hose 79.375mm - 80mmHose 79.375mm - 80mm
-
1260293650221 ClampClamp
-
1265293650221 ClampClamp
-
1500514054606 Upper StopperUpper Stopper
-
1750274001454 Exhaust HoseExhaust Hose
-
1760293650226 Tridon ClampTridon Clamp
-
1765293650081 Norma ClampNorma Clamp
-
1770293650244 Tridon Gear ClampTridon Gear Clamp
-
1780274001614 FittingFitting
-
1785293650226 Tridon ClampTridon Clamp
-
1790274001613 Central Exhaust HoseCentral Exhaust Hose
-
2000274001514 ResonatorResonator
-
2200293850120 StrapStrap
-
2500292001831 BracketBracket
-
2550293830173 Pad-RubberPad-Rubber
-
2750274001617 Rear Exhaust HoseRear Exhaust Hose
-
2760293650244 Tridon Gear ClampTridon Gear Clamp
-
2770293650244 Tridon Gear ClampTridon Gear Clamp
