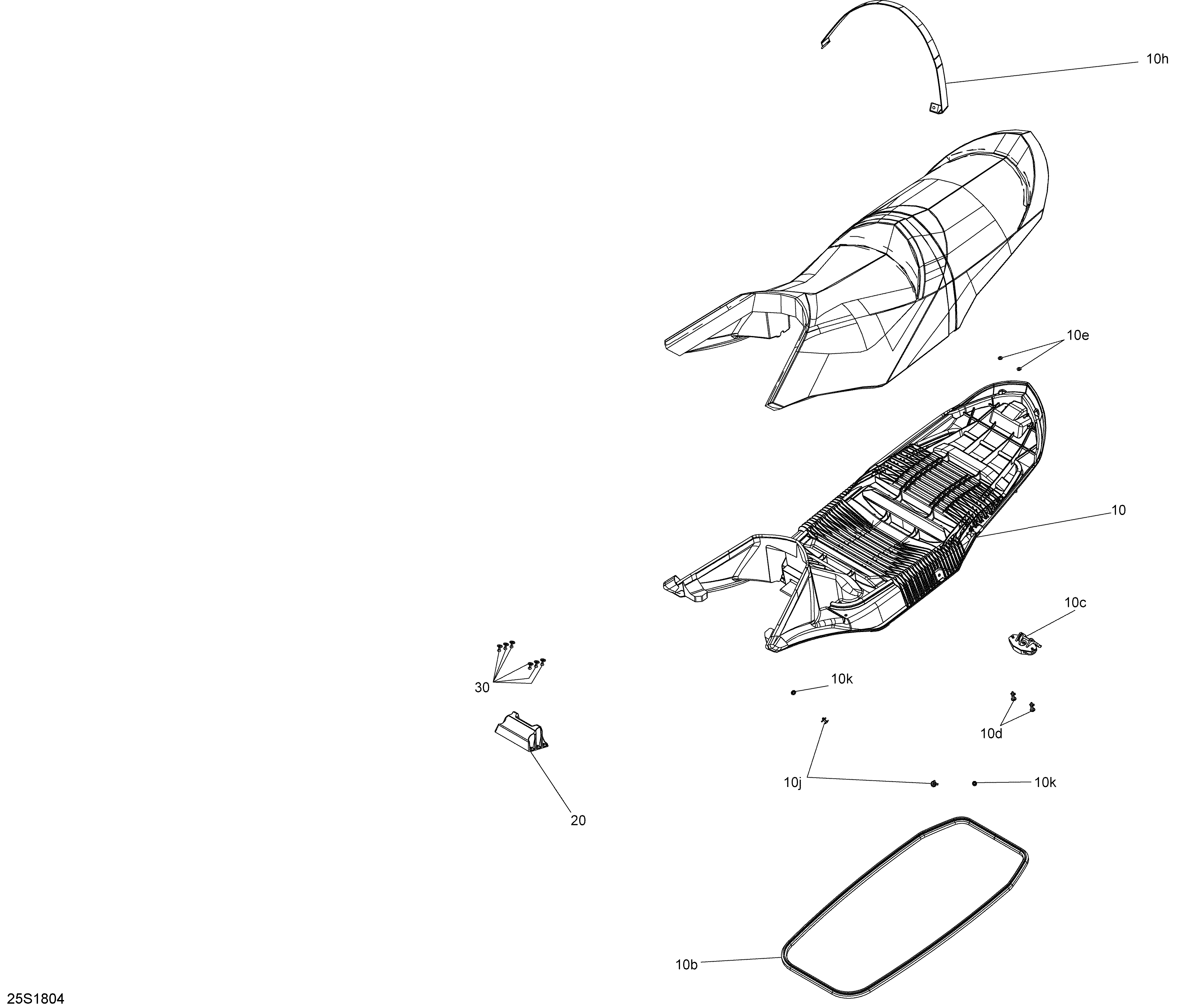

09- Seat GTI - 900 HO ACE для BRP 1- GTI 90 - 2018
-
№АртикулНазвание
-
10269003047 Seat Ass'y. Model Orange/Black, SE. Includes 10 to 10kSeat Ass'y. Model Orange/Black, SE. Includes 10 to 10k
-
10269003149 Reef Blue, Seat Ass'y. Package STD. Includes 10 to 10kReef Blue, Seat Ass'y. Package STD. Includes 10 to 10k
-
10269003151 Silver, Seat Ass'y. Model Blue/Grey, SE. Includes 10 to 10kSilver, Seat Ass'y. Model Blue/Grey, SE. Includes 10 to 10k
-
10b293200124 SealSeal
-
10c269700109 Latch Ass'yLatch Ass'y
-
10d293150151 Rivet 1/4''Rivet 1/4''
-
10e234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
10h269003050 Seat Strap. Model Orange/Black, SESeat Strap. Model Orange/Black, SE
-
10h269003143 Seat Strap. Package STDSeat Strap. Package STD
-
10h269003153 Seat Strap. Model Blue/Grey, SESeat Strap. Model Blue/Grey, SE
-
10j293150067 RivetRivet
-
10k293720067 GrommetGrommet
-
10h269002098 LH Seat ProtectorLH Seat Protector
-
10j269002097 RH Seat ProtectorRH Seat Protector
-
20269002151 Seat ReceptacleSeat Receptacle
-
30293150123 Pop Rivet 3/16''Pop Rivet 3/16''
