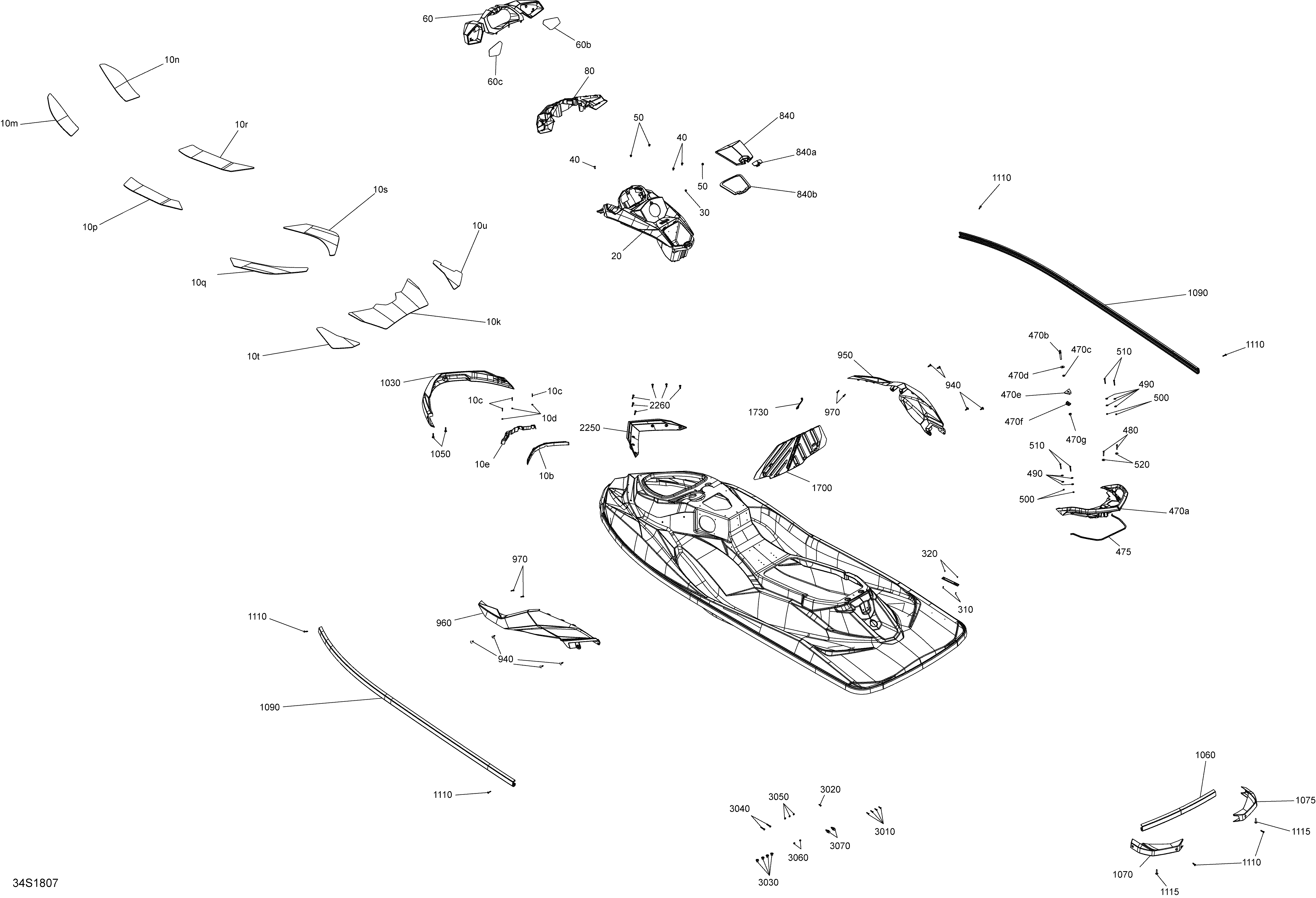

09- Body GTI - 900 ACE для BRP 1- GTI 90 - 2018
-
№АртикулНазвание
-
10e291003096 Swim Platform Carpet. Package SESwim Platform Carpet. Package SE
-
10k291003057 Swim Platform Carpet. Package STDSwim Platform Carpet. Package STD
-
10m291003058 Front Carpet LHFront Carpet LH
-
10n291003059 Front Carpet RHFront Carpet RH
-
10p291003060 Front Center Carpet LHFront Center Carpet LH
-
10q291003329 Rear Center Carpet LHRear Center Carpet LH
-
10r291003061 Front Center Carpet RHFront Center Carpet RH
-
10s291003330 Rear Center Carpet RHRear Center Carpet RH
-
10t291003062 Rear Carpet LHRear Carpet LH
-
10u291003063 Rear Carpet RHRear Carpet RH
-
15250000879 Screw-Plastite Torx M6.81X30Screw-Plastite Torx M6.81X30
-
20291004276 ConsoleConsole
-
30293830005 Rubber BumperRubber Bumper
-
40293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
50293150186 Pop Rivet 3/16Pop Rivet 3/16
-
60291004264 Manta Green Bezel Ass'y. Package STD. Includes 60 to 60cManta Green Bezel Ass'y. Package STD. Includes 60 to 60c
-
60291004489 Mango Orange Bezel Ass'y. Package SE. Includes 60 to 60cMango Orange Bezel Ass'y. Package SE. Includes 60 to 60c
-
60291004746 Stone Grey Bezzel Ass'y. Package SE. Includes 60 to 60cStone Grey Bezzel Ass'y. Package SE. Includes 60 to 60c
-
60b291003090 Mirror RHMirror RH
-
60c291003091 Mirror LHMirror LH
-
80291004271 Mirror SupportMirror Support
-
310293150016 Rivet 1/8''Rivet 1/8''
-
320293000014 Black Snap CapBlack Snap Cap
-
400292000933 U-ClampU-Clamp
-
410293050001 Flat WasherFlat Washer
-
430291001386 Black Finition PlateBlack Finition Plate
-
450234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
460232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
470291004625 Black, Rear Handle Ass'y. Package SE. Includes 470 to 470gBlack, Rear Handle Ass'y. Package SE. Includes 470 to 470g
-
470291004625 Black, Rear Handle Ass'y. Package STD. Includes 470 to 470gBlack, Rear Handle Ass'y. Package STD. Includes 470 to 470g
-
470291004626 White, Rear Handle Ass'y. Package SE. Includes 470 to 470gWhite, Rear Handle Ass'y. Package SE. Includes 470 to 470g
-
470b291003877 Stud SeatStud Seat
-
470c232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
470d234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
470e269002125 Seat Stud SpacerSeat Stud Spacer
-
470f269002126 Seat Stud SupportSeat Stud Support
-
470g232501200 Elastic Stop Nut M10, BrassElastic Stop Nut M10, Brass
-
475293250218 GasketGasket
-
480207065060 Hex. Screw M6 X 50Hex. Screw M6 X 50
-
490234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
500232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
510207164060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
520250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
840269502140 Glove Door Ass'y. Includes 840 to 840bGlove Door Ass'y. Includes 840 to 840b
-
840a264000091 Latch, BlackLatch, Black
-
840b293250236 GasketGasket
-
940293730006 Black DartBlack Dart
-
950269502191 White RH Cosmetic Panel. Package SEWhite RH Cosmetic Panel. Package SE
-
950269502331 Gray, RH Cosmetic Panel. Package SEGray, RH Cosmetic Panel. Package SE
-
950269502333 Blue, RH Cosmetic Panel. Package STDBlue, RH Cosmetic Panel. Package STD
-
960269502192 White LH Cosmetic Panel. Package SEWhite LH Cosmetic Panel. Package SE
-
960269502332 Grey, LH Cosmetic Panel. Package SEGrey, LH Cosmetic Panel. Package SE
-
960269502334 Blue, LH Cosmetic Panel. Package STDBlue, LH Cosmetic Panel. Package STD
-
970211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
1030291004277 Front BumperFront Bumper
-
1050250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
1060291004451 Side BumperSide Bumper
-
1070291004278 Corner BumperCorner Bumper
-
1075291004279 Corner BumperCorner Bumper
-
1090291004451 Side BumperSide Bumper
-
1110250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
1115250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
1700291004572 Divider Ass'yDivider Ass'y
-
1730269502111 Holding StrapHolding Strap
-
2250291004273 Body DeflectorBody Deflector
-
2260250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
3010250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
3020250000735 Torx Screw K40 X 16Torx Screw K40 X 16
-
3030293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
3040207153060 Hex. Flanged Screw M5 X 30Hex. Flanged Screw M5 X 30
-
3050211200035 Flat WasherFlat Washer
-
3060232551200 Elastic Stop Nut 5 mmElastic Stop Nut 5 mm
-
3070293150089 Tuflok Plastic RivetTuflok Plastic Rivet
