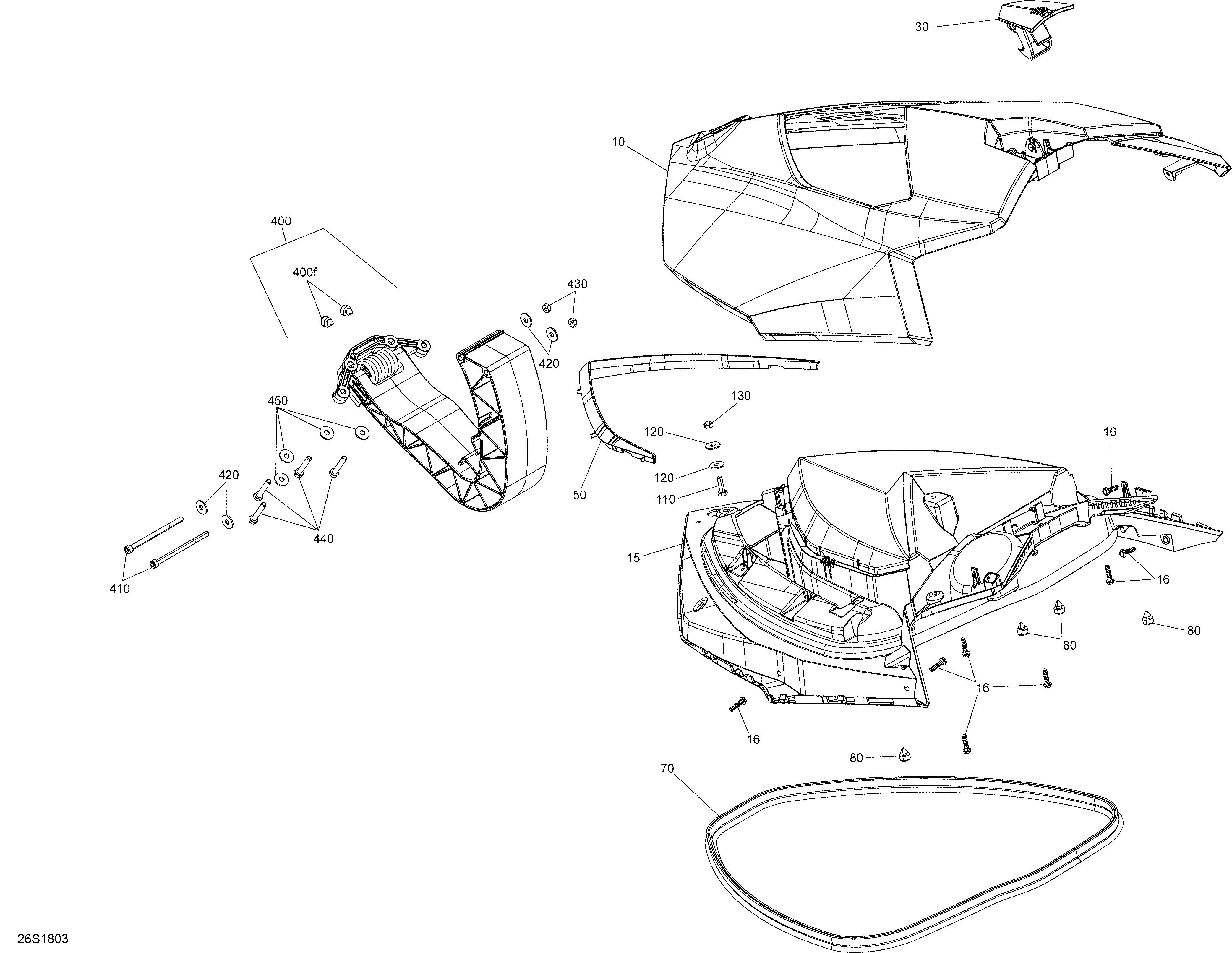

09- Front Cover GTI - 900 HO ACE для BRP 1- GTI 90 - 2018
-
№АртикулНазвание
-
10269502354 Orange, Storage Cover. Package SEOrange, Storage Cover. Package SE
-
10269502355 Black, Storage Cover. Package STDBlack, Storage Cover. Package STD
-
10269502355 Black, Storage Cover. Package SEBlack, Storage Cover. Package SE
-
15269502196 Storage CoverStorage Cover
-
16241152060 Hex. Flanged Screw K50 X 20Hex. Flanged Screw K50 X 20
-
30269700142 Latch LeverLatch Lever
-
50269502067 Manta Green Front Moulding. Package STDManta Green Front Moulding. Package STD
-
50269502290 White Front Moulding. Package SEWhite Front Moulding. Package SE
-
50269502338 Gray Front Moulding. Package SEGray Front Moulding. Package SE
-
70293250047 Neoprene SealNeoprene Seal
-
80293830005 Rubber BumperRubber Bumper
-
110207162060 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
120234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
130232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
400269501944 Hinge Ass'y. DR. Includes 400 to 400fHinge Ass'y. DR. Includes 400 to 400f
-
400269501995 Hinge Ass'y. DTR. Includes 400 to 400fHinge Ass'y. DTR. Includes 400 to 400f
-
400f293830005 Rubber BumperRubber Bumper
-
410205069060 Socket Head Screw M6 X 90Socket Head Screw M6 X 90
-
420234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
430232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
440205062560 Socket Head Screw M6 X 25. DTRSocket Head Screw M6 X 25. DTR
-
440207363560 Screw Hex. M6 X 35, Scotch Grip. DRScrew Hex. M6 X 35, Scotch Grip. DR
-
450234062600 Flat Washer M6, Stainless. DRFlat Washer M6, Stainless. DR
