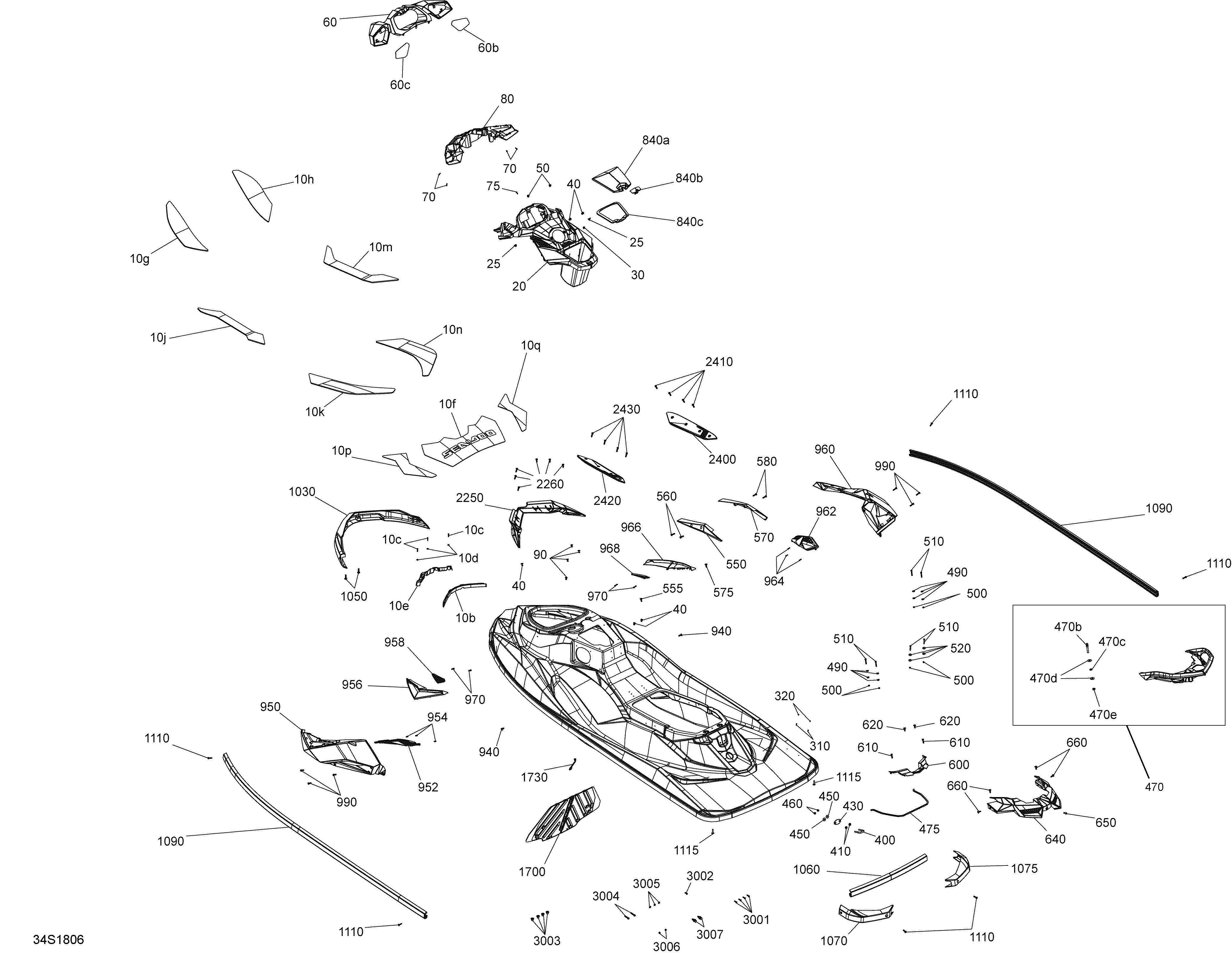

09- Body GTR - 230 - Package X для BRP 1- GTR 230 - 2018
-
№АртикулНазвание
-
10b291003897 Deck NoseDeck Nose
-
10c234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
10d241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
10f291003586 Platform CarpetPlatform Carpet
-
10g291003587 Front Carpet LHFront Carpet LH
-
10h291003588 Front Carpet RHFront Carpet RH
-
10j291003589 Center Front Carpet LHCenter Front Carpet LH
-
10k291003577 Rear Center Carpet LHRear Center Carpet LH
-
10m291003591 Center Front Carpet RHCenter Front Carpet RH
-
10n291003578 Rear Center Carpet RHRear Center Carpet RH
-
10p291003593 Rear Carpet LHRear Carpet LH
-
10q291003594 Rear Carpet RHRear Carpet RH
-
20291004654 ConsoleConsole
-
24291004718 Console CapConsole Cap
-
25414644300 DartDart
-
30293830005 Rubber BumperRubber Bumper
-
40293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
50293150186 Pop Rivet 3/16Pop Rivet 3/16
-
60291004261 Black Bezel Ass'y. Includes 60 to 60cBlack Bezel Ass'y. Includes 60 to 60c
-
60b291003090 Mirror RHMirror RH
-
60c291003091 Mirror LHMirror LH
-
80291004271 Mirror SupportMirror Support
-
310293150016 Rivet 1/8''Rivet 1/8''
-
320293000014 Black Snap CapBlack Snap Cap
-
400292000933 U-ClampU-Clamp
-
410293050001 Flat WasherFlat Washer
-
430291001386 Black Finition PlateBlack Finition Plate
-
450234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
460232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
470291004620 Black, Rear Handle Ass'y. Includes 470 to 470dBlack, Rear Handle Ass'y. Includes 470 to 470d
-
470b291003877 Stud SeatStud Seat
-
470c232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
470d234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
470e232501200 Elastic Stop Nut M10, BrassElastic Stop Nut M10, Brass
-
475293250289 SealSeal
-
490234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
500232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
510207164060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
520250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
550291004500 White Handle Cosmetic LHWhite Handle Cosmetic LH
-
555293730006 Black DartBlack Dart
-
560250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
570291004501 White Handle Cosmetic RHWhite Handle Cosmetic RH
-
575293730006 Black DartBlack Dart
-
580250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
600291003372 Vent CoverVent Cover
-
610250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
620293730006 Black DartBlack Dart
-
640291004365 Cosmetic Ass.Cosmetic Ass.
-
650250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
660293730006 Black DartBlack Dart
-
840a291004579 Glove Box DoorGlove Box Door
-
840b264000091 Latch, BlackLatch, Black
-
840c293250265 Urethane SealUrethane Seal
-
940293730006 Black DartBlack Dart
-
950291004504 Side Cosmetic LHSide Cosmetic LH
-
952291003348 Side Grill LHSide Grill LH
-
954250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
956291004505 Front Cosmetic LHFront Cosmetic LH
-
958291003343 Front Grill LHFront Grill LH
-
960291004506 Side Cosmetic RHSide Cosmetic RH
-
962291003349 Side Grill RHSide Grill RH
-
964250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
966291004507 Front Cosmetic RHFront Cosmetic RH
-
968291003344 Front Grill RHFront Grill RH
-
970211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
990250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
1030291004277 Front BumperFront Bumper
-
1050250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
1060291004451 Side BumperSide Bumper
-
1070291004278 Corner BumperCorner Bumper
-
1075291004279 Corner BumperCorner Bumper
-
1090291004451 Side BumperSide Bumper
-
1110250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
1115250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
1700291004572 Divider Ass'yDivider Ass'y
-
1730269502111 Holding StrapHolding Strap
-
2250291004367 DeflectorDeflector
-
2260250000709 Torx Screw M6.81 X 30Torx Screw M6.81 X 30
-
2400291004317 FootrestFootrest
-
2410250000710 Torx Screw M6 X 3Torx Screw M6 X 3
-
2420291004319 FootrestFootrest
-
2430250000710 Torx Screw M6 X 3Torx Screw M6 X 3
-
3001250000287 Flanged Torx Screw K40 X 16. Model EuropeFlanged Torx Screw K40 X 16. Model Europe
-
3002250000735 Torx Screw K40 X 16. Model EuropeTorx Screw K40 X 16. Model Europe
-
3003293150123 Pop Rivet 3/16''. Model EuropePop Rivet 3/16''. Model Europe
-
3004207153060 Hex. Flanged Screw M5 X 30. Model EuropeHex. Flanged Screw M5 X 30. Model Europe
-
3005211200035 Flat Washer. Model EuropeFlat Washer. Model Europe
-
3006232551200 Elastic Stop Nut 5 mm. Model EuropeElastic Stop Nut 5 mm. Model Europe
-
3007293150089 Tuflok Plastic Rivet. Model EuropeTuflok Plastic Rivet. Model Europe
