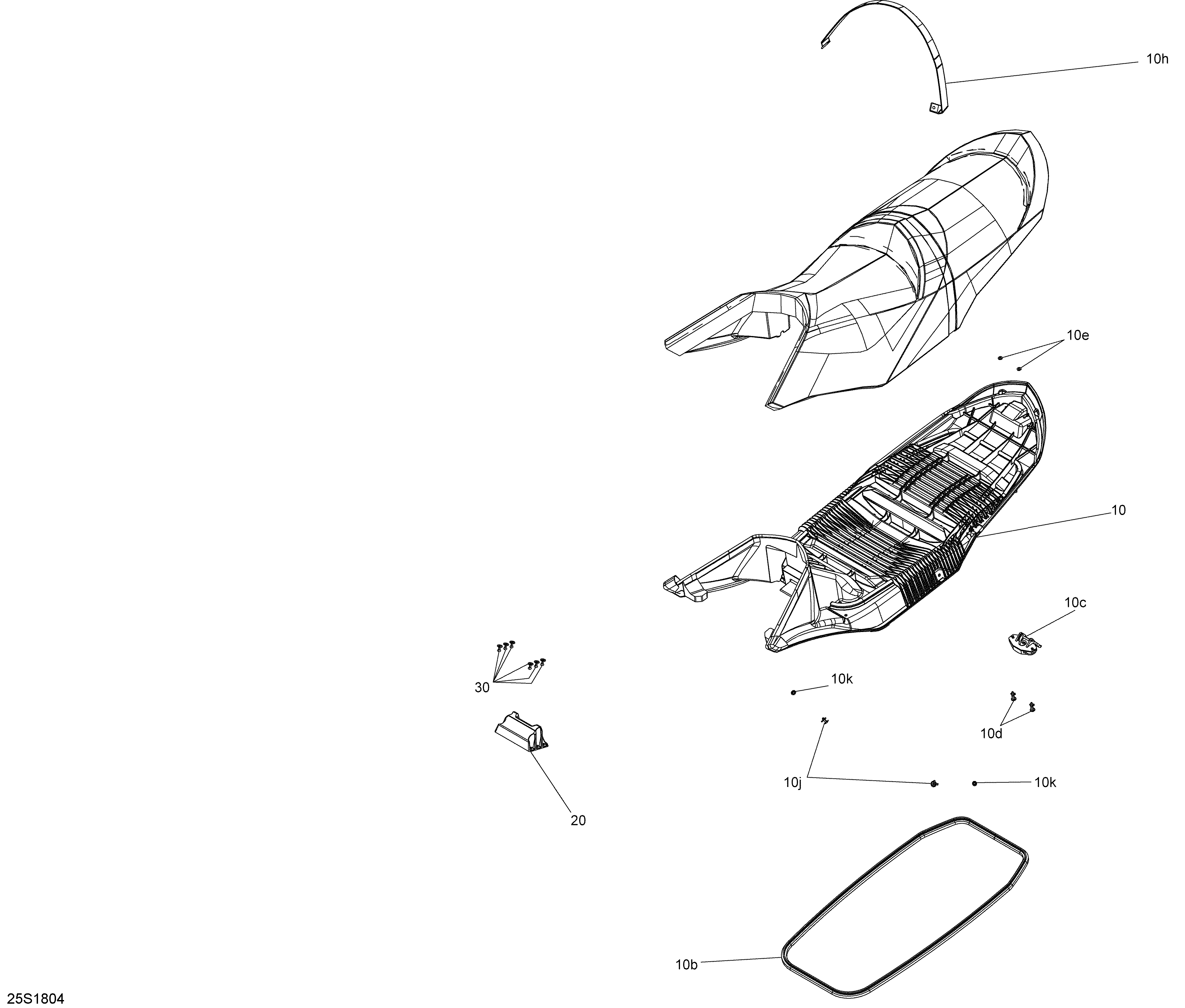

09- Seat GTR - 230 для BRP 1- GTR 230 - 2018
-
№АртикулНазвание
-
10269003057 Seat Ass'y. Package STD. Includes 10 to 10kSeat Ass'y. Package STD. Includes 10 to 10k
-
10269003170 Seat Ass'y. Package X. Includes 10 to 10kSeat Ass'y. Package X. Includes 10 to 10k
-
10b293200124 SealSeal
-
10c269700109 Latch Ass'yLatch Ass'y
-
10d293150151 Rivet 1/4''Rivet 1/4''
-
10e234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
10h269002526 Seat Strap. Package STDSeat Strap. Package STD
-
10h269002364 Seat Strap. Package XSeat Strap. Package X
-
10j293150067 RivetRivet
-
10k293720067 GrommetGrommet
-
10h269002098 LH Seat ProtectorLH Seat Protector
-
10j269002097 RH Seat ProtectorRH Seat Protector
-
20269002151 Seat ReceptacleSeat Receptacle
-
30293150123 Pop Rivet 3/16''Pop Rivet 3/16''
