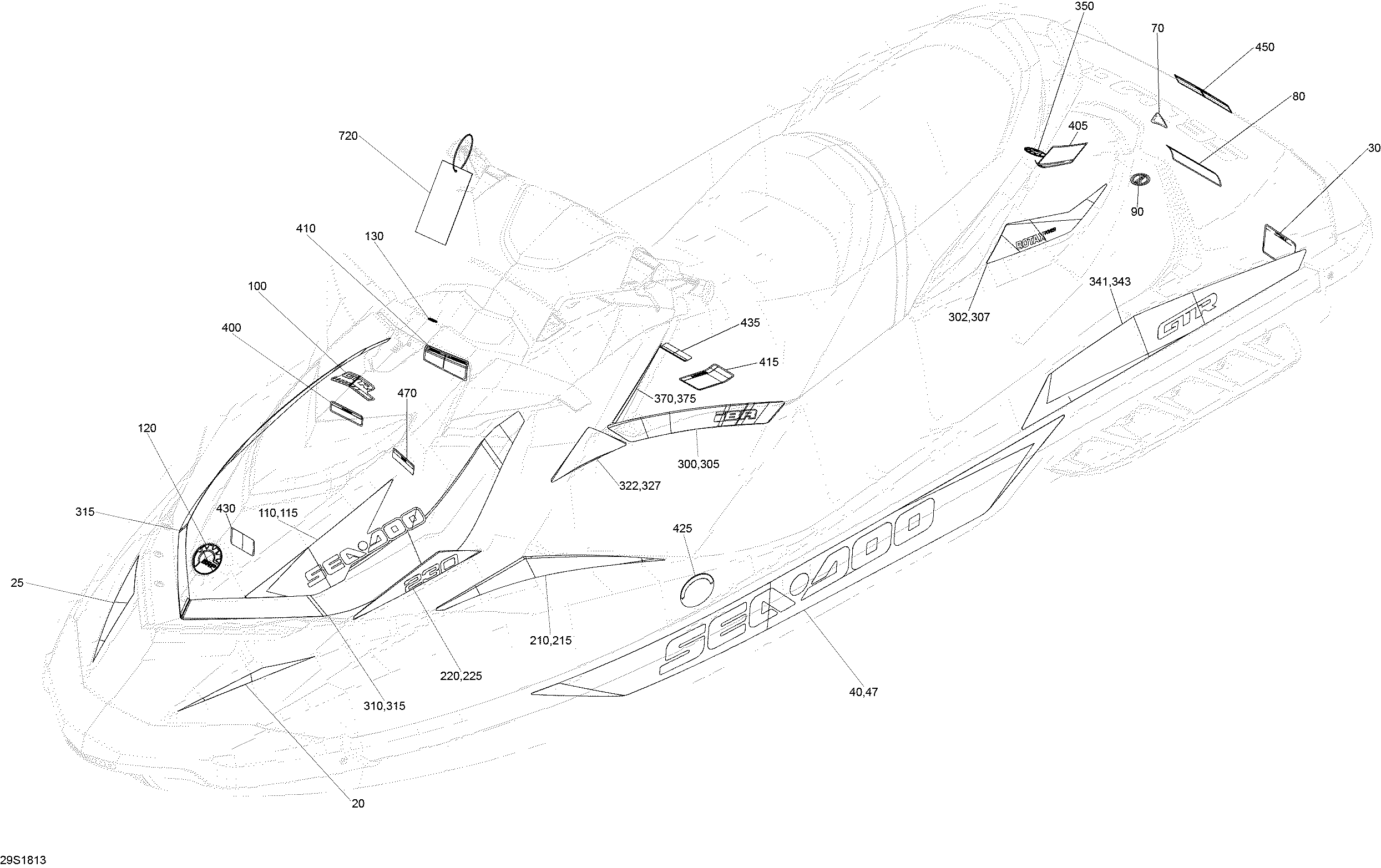

09- Decals GTR - 230 - Package STD для BRP 1- GTR 230 - 2018
-
№АртикулНазвание
-
20219904978 LH Front Lateral DecalLH Front Lateral Decal
-
25219904979 RH Front Lateral DecalRH Front Lateral Decal
-
30219903301 Warning Decal, Tip Over/HeatWarning Decal, Tip Over/Heat
-
40219904930 LH Sea-Doo Hull DecalLH Sea-Doo Hull Decal
-
47219904931 RH Sea-Doo Hull DecalRH Sea-Doo Hull Decal
-
70219903077 Decal Hand, Risk Of InjuryDecal Hand, Risk Of Injury
-
80219903078 Warning Decal, Risk Of InjuryWarning Decal, Risk Of Injury
-
90219904804 Pictogram Foot Gate LabelPictogram Foot Gate Label
-
100219905144 Deflector DecalDeflector Decal
-
110219904941 LH Sea-Doo Front DecalLH Sea-Doo Front Decal
-
115219904942 RH Sea-Doo Front DecalRH Sea-Doo Front Decal
-
120516008739 Logo BRPLogo BRP
-
130516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
210219904966 LH Front Lateral DecalLH Front Lateral Decal
-
215219904967 RH Front Lateral DecalRH Front Lateral Decal
-
220219905145 LH Side Cover DecalLH Side Cover Decal
-
225219905146 RH Side Cover DecalRH Side Cover Decal
-
300219905281 LH IBR DecalLH IBR Decal
-
302219904935 LH Rear DecalLH Rear Decal
-
305219905282 RH IBR DecalRH IBR Decal
-
307219904936 RH Rear DecalRH Rear Decal
-
310219905147 LH Decal Side FrontLH Decal Side Front
-
315219905148 RH Decal Side FrontRH Decal Side Front
-
322219903416 LH Center DecalLH Center Decal
-
327219903417 RH Center DecalRH Center Decal
-
341219905149 LH Decal Side RearLH Decal Side Rear
-
343219905150 RH Decal Side RearRH Decal Side Rear
-
350516008738 Logo BRPLogo BRP
-
370219904989 RH Center DecalRH Center Decal
-
375219904990 LH Center DecalLH Center Decal
-
400219903082 Warning Decal, BatteryWarning Decal, Battery
-
405219904272 Decal, ExemptionDecal, Exemption
-
410219903501 Warning Decal, FuelWarning Decal, Fuel
-
415219904829 Engine Oil LabelEngine Oil Label
-
425219902679 Decal, Emission ControlDecal, Emission Control
-
430219903502 Warning Decal, StorageWarning Decal, Storage
-
435219903132 Caution Decal, SecurityCaution Decal, Security
-
450219904576 Decal Warning, Re-BoardDecal Warning, Re-Board
-
470219903127 Notice Decal, Gasoline-OctaneNotice Decal, Gasoline-Octane
-
720219902678 Label, InformationLabel, Information
