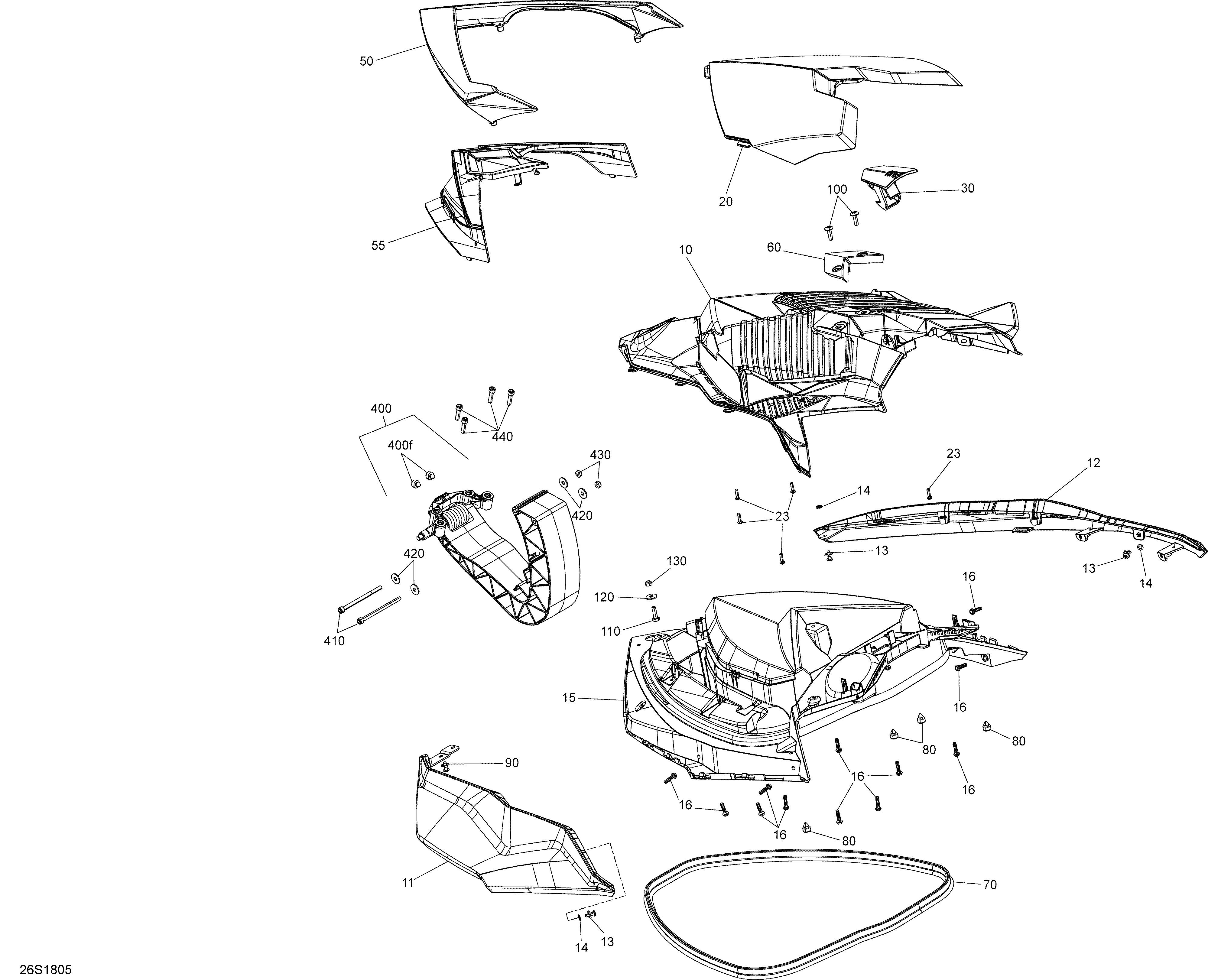

09- Front Cover GTR - 230 - Package X для BRP 1- GTR 230 - 2018
-
№АртикулНазвание
-
10269502193 Storage CoverStorage Cover
-
11269502328 LH Storage CoverLH Storage Cover
-
12269502329 RH Storage CoverRH Storage Cover
-
13293150027 Avdel RivetAvdel Rivet
-
14234051500 Flat Washer 5 mmFlat Washer 5 mm
-
15269502196 Storage CoverStorage Cover
-
16241152060 Hex. Flanged Screw K50 X 20Hex. Flanged Screw K50 X 20
-
20269502220 Black DeflectorBlack Deflector
-
23250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
30269700142 Latch LeverLatch Lever
-
50269501869 Front CosmeticFront Cosmetic
-
55269502304 SupportSupport
-
60269501941 ClampClamp
-
70293250047 Neoprene SealNeoprene Seal
-
80293830005 Rubber BumperRubber Bumper
-
90293150027 Avdel RivetAvdel Rivet
-
100250000829 Torx-Truss M/S Stlss M6 X 20Torx-Truss M/S Stlss M6 X 20
-
110207162060 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
120234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
130232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
400269501995 Hinge Ass'y. Includes 400 to 400fHinge Ass'y. Includes 400 to 400f
-
400f293830005 Rubber BumperRubber Bumper
-
410205069060 Socket Head Screw M6 X 90Socket Head Screw M6 X 90
-
420234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
430232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
440205062560 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
