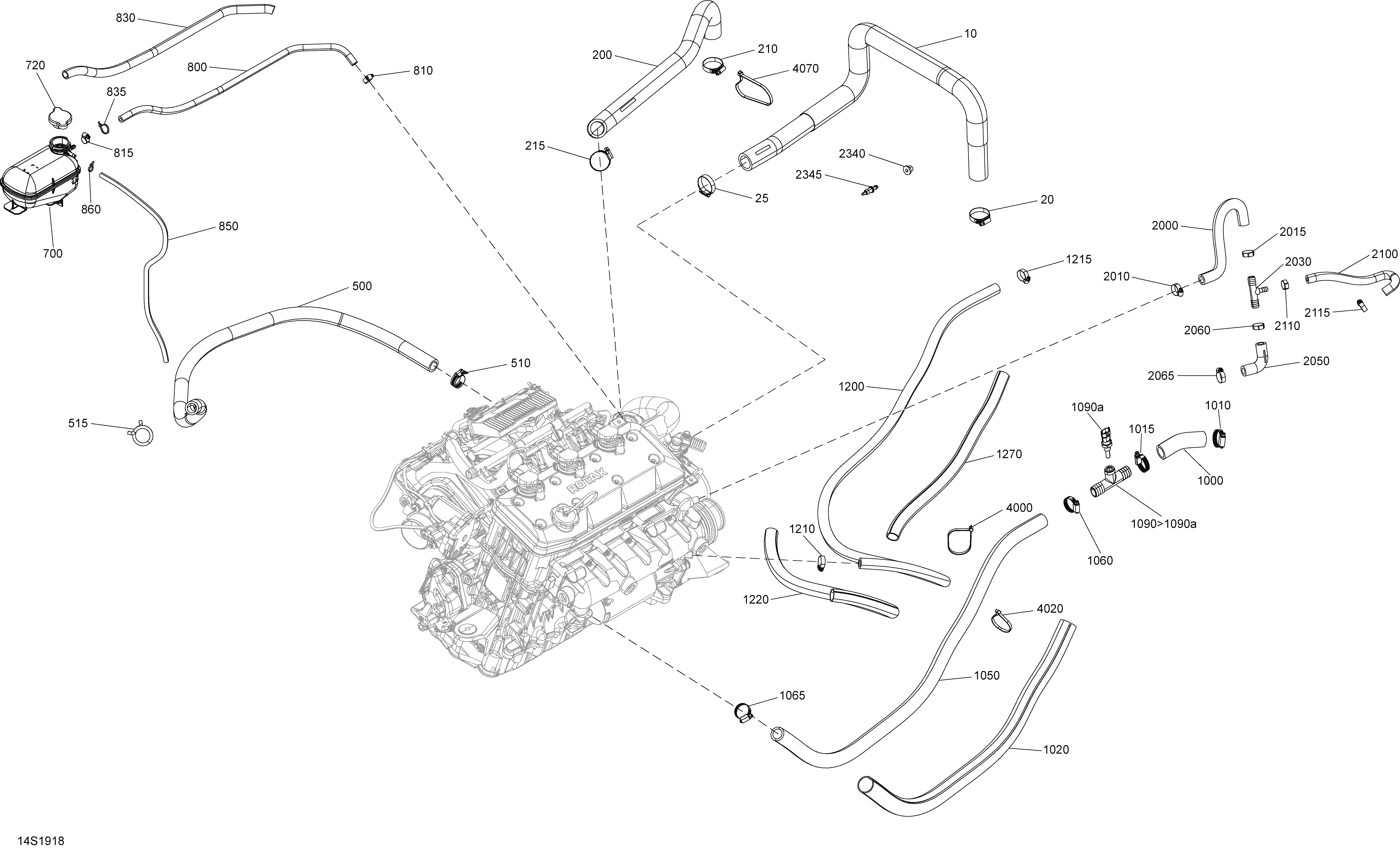

01- Cooling System для BRP 004 - FISH PRO - 2019
-
№АртикулНазвание
-
10276000420 HoseHose
-
20293650245 Norma ClampNorma Clamp
-
25293650245 Norma ClampNorma Clamp
-
200276000421 HoseHose
-
210293650245 Norma ClampNorma Clamp
-
215293650245 Norma ClampNorma Clamp
-
500276000158 Hose 19 mmHose 19 mm
-
510293650019 Tridon Gear ClampTridon Gear Clamp
-
515293650115 Spring ClampSpring Clamp
-
700276000419 Coolant TankCoolant Tank
-
720276000100 Pressure CapPressure Cap
-
800276000394 Hose 6.4 mmHose 6.4 mm
-
810293650170 Tridon Gear ClampTridon Gear Clamp
-
815293650170 Tridon Gear ClampTridon Gear Clamp
-
830409901800 Tubing 13 mmTubing 13 mm
-
835293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
850293830193 Polyurethane HosePolyurethane Hose
-
860293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
1000276000158 Hose 19 mmHose 19 mm
-
1010293650051 Tridon Gear ClampTridon Gear Clamp
-
1015293650051 Tridon Gear ClampTridon Gear Clamp
-
1020409902200 Tubing 25 mmTubing 25 mm
-
1050276000158 Hose 19 mmHose 19 mm
-
1060293650051 Tridon Gear ClampTridon Gear Clamp
-
1065293650051 Tridon Gear ClampTridon Gear Clamp
-
1090293710143 Sensor AssemblySensor Assembly
-
1200296000303 Hose 12.5 mmHose 12.5 mm
-
1210293650172 Tridon Gear ClampTridon Gear Clamp
-
1215293650172 Tridon Gear ClampTridon Gear Clamp
-
1220515175319 Tubing 22 mmTubing 22 mm
-
1270515175319 Tubing 22 mmTubing 22 mm
-
2000276000244 Formed HoseFormed Hose
-
2010293650172 Tridon Gear ClampTridon Gear Clamp
-
2015293650012 Oetiker ClampOetiker Clamp
-
2030293710116 T-FittingT-Fitting
-
2050276000245 Lower Formed HoseLower Formed Hose
-
2060293650012 Oetiker ClampOetiker Clamp
-
2065293650172 Tridon Gear ClampTridon Gear Clamp
-
2100276000246 Formed HoseFormed Hose
-
2110293650030 Oetiker ClampOetiker Clamp
-
2115293650172 Tridon Gear ClampTridon Gear Clamp
-
2340293720029 GrommetGrommet
-
2345293710133 Fitting StraigFitting Straig
-
4000293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
4020414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
4070293750008 Tie-Rap 350 mmTie-Rap 350 mm
