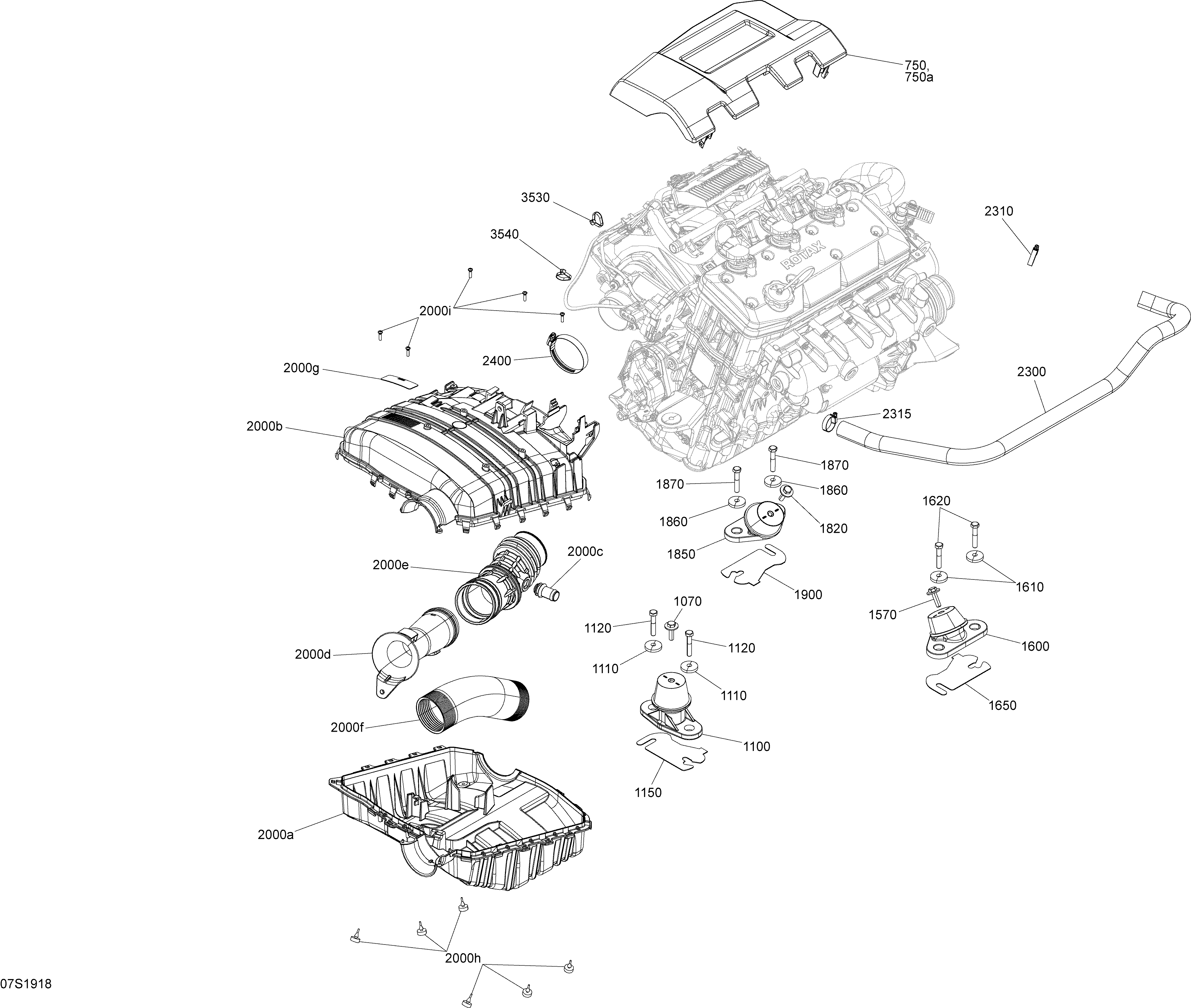

01- Engine для BRP 004 - FISH PRO - 2019
-
№АртикулНазвание
-
750>750a270001002 Cover Ass'y. Includes 750 TO 750aCover Ass'y. Includes 750 TO 750a
-
750a293250388 JOINT *SEALJOINT *SEAL
-
1070250000933 Hex Sems Screw M8 X 30 S.GripHex Sems Screw M8 X 30 S.Grip
-
1100270001029 Rubber MountRubber Mount
-
1110250200018 Cone WasherCone Washer
-
1120250000782 Hexagonal Head Cap Screw M8 X 45Hexagonal Head Cap Screw M8 X 45
-
1150270000762 Shim 1.3 mmShim 1.3 mm
-
1570250000933 Hex Sems Screw M8 X 30 S.GripHex Sems Screw M8 X 30 S.Grip
-
1600270001011 Rubber MountRubber Mount
-
1610250200018 Cone WasherCone Washer
-
1620250000782 Hexagonal Head Cap Screw M8 X 45Hexagonal Head Cap Screw M8 X 45
-
1650270000762 Shim 1.3 mmShim 1.3 mm
-
1820250000933 Hex Sems Screw M8 X 30 S.GripHex Sems Screw M8 X 30 S.Grip
-
1850270001011 Rubber MountRubber Mount
-
1860250200018 Cone WasherCone Washer
-
1870250000782 Hexagonal Head Cap Screw M8 X 45Hexagonal Head Cap Screw M8 X 45
-
1900270000762 Shim 1.3 mmShim 1.3 mm
-
2000a273000354 Airbox BaseAirbox Base
-
2000b273000389 Intake Silencer CoverIntake Silencer Cover
-
2000c273000234 BreatherBreather
-
2000d273000358 Intake HoseIntake Hose
-
2000e273000382 Hose ConnectorHose Connector
-
2000f273000290 Air Silencer HoseAir Silencer Hose
-
2000g219903177 Notice Decal, Air SilencerNotice Decal, Air Silencer
-
2000h708000759 Rubber StopperRubber Stopper
-
2000i250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
2300270000808 Formed HoseFormed Hose
-
2310293650284 Clamp GearClamp Gear
-
2315293650284 Clamp GearClamp Gear
-
2400293650283 Clamp GearClamp Gear
-
3530414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
3540414115200 Tie-Rap 180 mmTie-Rap 180 mm
