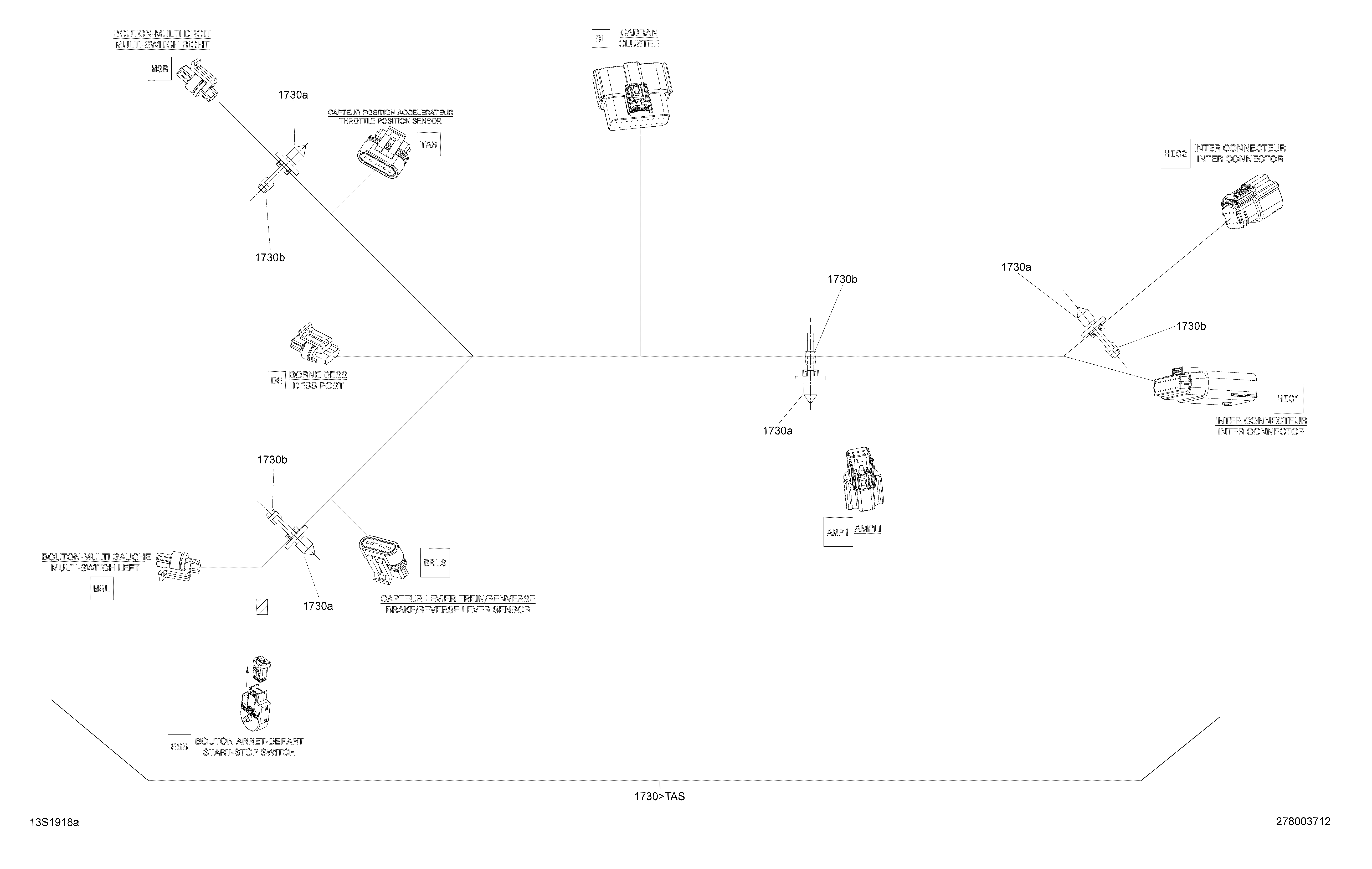

10- Steering Harness 278003712 для BRP 004 - FISH PRO - 2019
-
№АртикулНазвание
-
1730>TAS278003712 Wiring Harness HandlebarWiring Harness Handlebar
-
1730a293730040 Mount DartMount Dart
-
1730b710002714 Tie-RapTie-Rap
-
AMP1278002642 Female TerminalFemale Terminal
-
AMP1515178024 HousingHousing
-
BRLS278002299 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
BRLS710001119 Female TerminalFemale Terminal
-
CL278002453 Female TerminalFemale Terminal
-
CL278002858 Female Housing, 20 CircuitsFemale Housing, 20 Circuits
-
CL278002860 Sealing CapSealing Cap
-
DS710000925 TerminalTerminal
-
DS710001153 Seal WireSeal Wire
-
DS710001161 HousingHousing
-
HIC1278002454 Male TerminalMale Terminal
-
HIC1278002852 Housing, 20 CircuitsHousing, 20 Circuits
-
HIC1278002860 Sealing CapSealing Cap
-
HIC1278003226 Male TerminalMale Terminal
-
HIC2278002453 Female TerminalFemale Terminal
-
HIC2278002894 Housing, 6 CircuitsHousing, 6 Circuits
-
MSL278002387 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
MSL710001163 Wire SealWire Seal
-
MSL710001164 Female TerminalFemale Terminal
-
MSR278002387 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
MSR710001163 Wire SealWire Seal
-
MSR710001164 Female TerminalFemale Terminal
-
SSS278002676 Switch Start/StopSwitch Start/Stop
-
SSS278002856 Housing JAE, 2 CircuitsHousing JAE, 2 Circuits
-
SSS278002857 Female TerminalFemale Terminal
-
TAS278002299 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
TAS710001119 Female TerminalFemale Terminal
