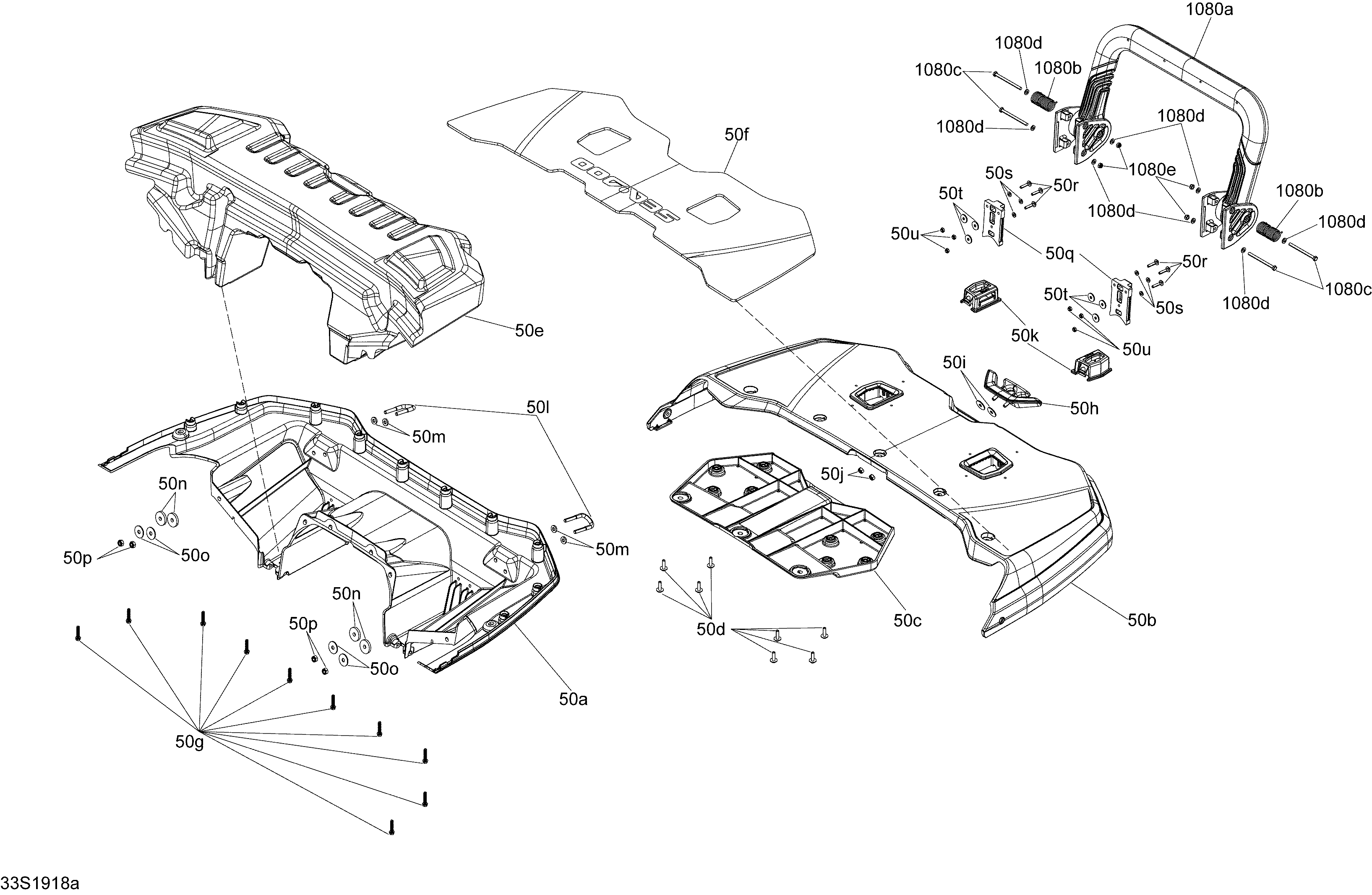

09- Hull Extension and Ladder для BRP 004 - FISH PRO - 2019
-
№АртикулНазвание
-
50a292002138 Hull ExtensionHull Extension
-
50b292002139 Body ExtensionBody Extension
-
50c292002140 Reinforcement Body ExtensionReinforcement Body Extension
-
50d250001070 Hexagonal Cap Screw M6.8 X 25Hexagonal Cap Screw M6.8 X 25
-
50e292002142 Extension FloatExtension Float
-
50f292002210 Extension CarpetExtension Carpet
-
50g243163560 Plastite Hex. Screw M6.8 X 35Plastite Hex. Screw M6.8 X 35
-
50h291004597 CleatCleat
-
50i250200175 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
50j232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
50k295100858 LinQ Bases KitLinQ Bases Kit
-
50l292000933 U-ClampU-Clamp
-
50m293050001 Flat WasherFlat Washer
-
50n293830037 Rubber WasherRubber Washer
-
50o250200175 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
50p232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
50q292002113 Ladder AttachmentLadder Attachment
-
50r250000924 Truss Cone Torx Screw M6 X 30Truss Cone Torx Screw M6 X 30
-
50s234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
50t250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
50u232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
1080a295100869 Ladder Ass'yLadder Ass'y
-
1080b292002107 SpringSpring
-
1080c207068060 Hex. Screw M6 x 80Hex. Screw M6 x 80
-
1080d234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1080e232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
