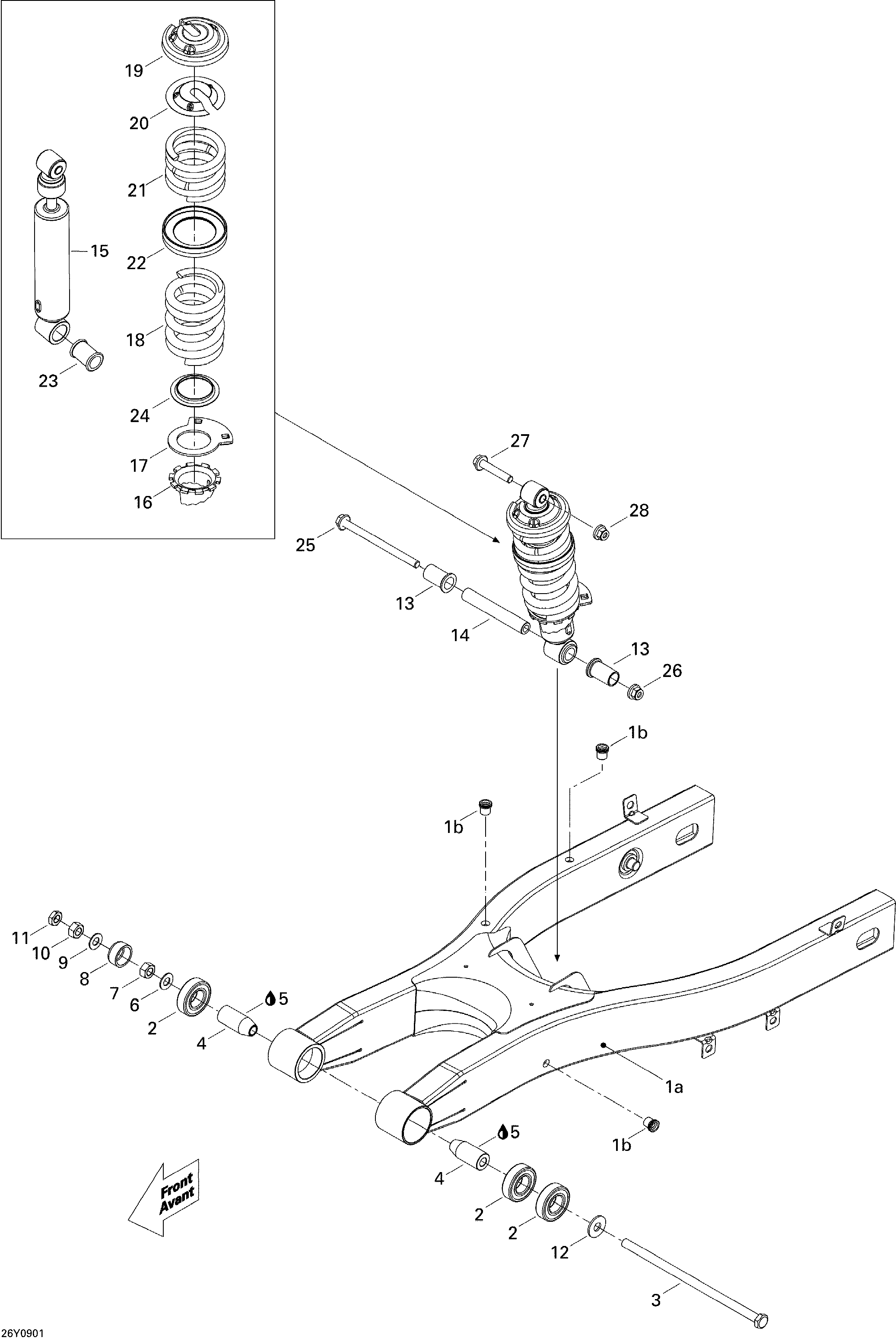

08- Suspension, Rear SE5 Electronic для BRP Spyder GS Roadster with SE5 transmission - 2009
-
№АртикулНазвание
-
1a706000671 Swing Arm. SE5 Electronic, A29B, A29C, A29D, A29E, A29F, A29GSwing Arm. SE5 Electronic, A29B, A29C, A29D, A29E, A29F, A29G
-
1a706000365 Swing Arm. SE5 Electronic, A29H, A29J, A29K, A29L, A29M, A29NSwing Arm. SE5 Electronic, A29H, A29J, A29K, A29L, A29M, A29N
-
1b415107300 InsertInsert
-
2293350055 Ball BearingBall Bearing
-
3250000367 Hex. Screw M12 X 265, Scotch Grip. SE5 Electronic, A29B, A29C, A29D, A29E, A29F, A29GHex. Screw M12 X 265, Scotch Grip. SE5 Electronic, A29B, A29C, A29D, A29E, A29F, A29G
-
3250000264 Hex. Screw M12 X 260, Scotch Grip. SE5 Electronic, A29H, A29J, A29K, A29L, A29M, A29NHex. Screw M12 X 260, Scotch Grip. SE5 Electronic, A29H, A29J, A29K, A29L, A29M, A29N
-
4706000474 Internal BushingInternal Bushing
-
5293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
6503191435 WasherWasher
-
7232021486 Hex. Nut M12Hex. Nut M12
-
8706000486 BushingBushing
-
9503191435 WasherWasher
-
10232021486 Hex. Nut M12Hex. Nut M12
-
11232120434 Hex. Jam Nut M12Hex. Jam Nut M12
-
12506136400 Flat WasherFlat Washer
-
13706000410 SpacerSpacer
-
14706000409 Shock Absorber ShaftShock Absorber Shaft
-
15706000411 Shock AbsorberShock Absorber
-
16706000603 Adjustment CamAdjustment Cam
-
17706000592 Adjustment RingAdjustment Ring
-
18706000469 SpringSpring
-
19503191604 Spring StopperSpring Stopper
-
20503191605 CapCap
-
21706000529 SpringSpring
-
22706000540 SpacerSpacer
-
23503191609 Urethane CushionUrethane Cushion
-
24503191872 Spring GuideSpring Guide
-
25230604034 Flanged Hex. Screw M10 X 140Flanged Hex. Screw M10 X 140
-
26233201434 Hex. Flanged Elastic NutHex. Flanged Elastic Nut
-
27207605534 Hex. Flanged ScrewHex. Flanged Screw
-
28233201434 Hex. Flanged Elastic NutHex. Flanged Elastic Nut
