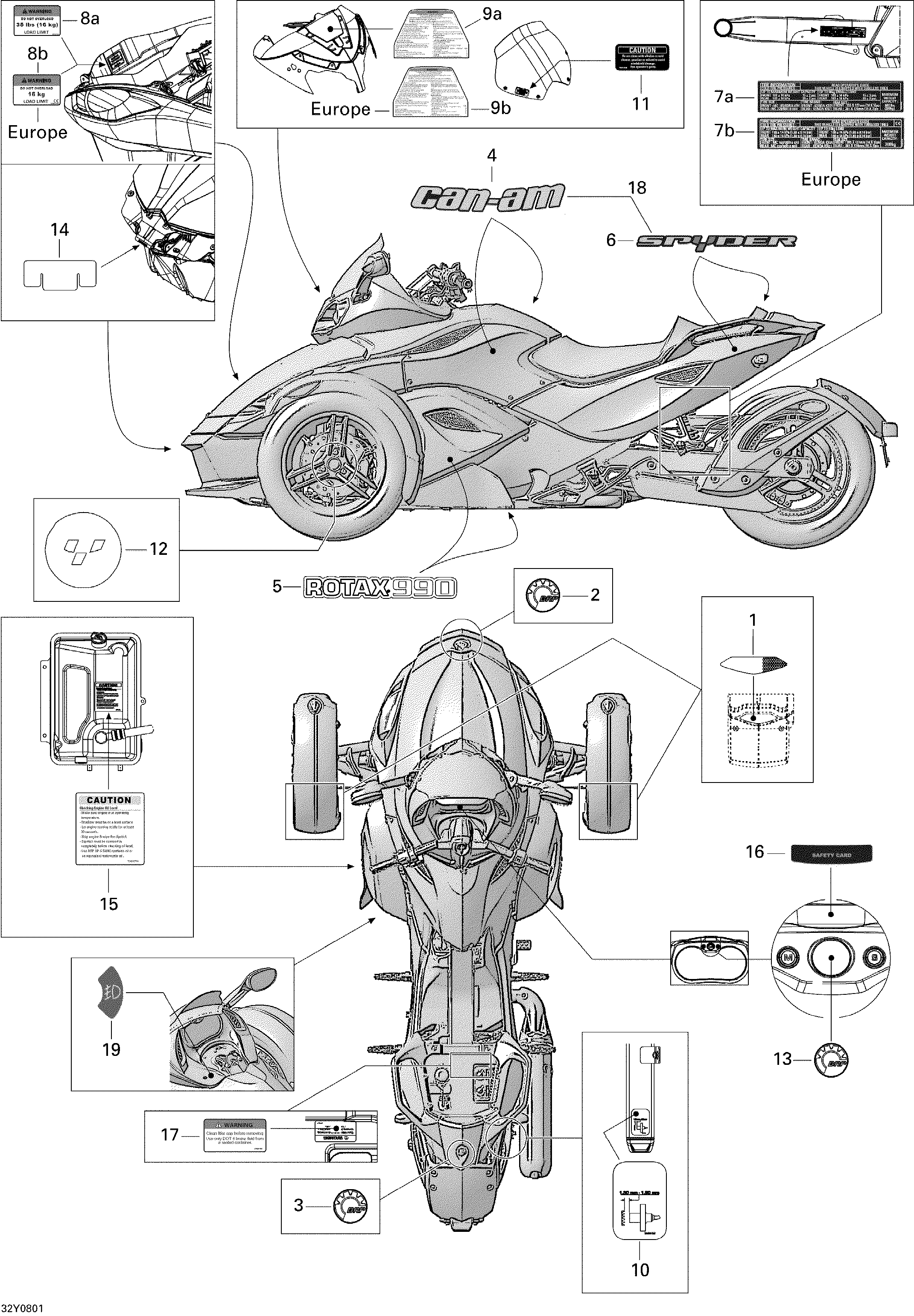

09- Decals для BRP Spyder GS Roadster with SE5 transmission - 2009
-
№АртикулНазвание
-
1704901160 Reflective StripeReflective Stripe
-
2219902469 Logo, BRP 68 mmLogo, BRP 68 mm
-
3219902468 Logo, BRP 48 mmLogo, BRP 48 mm
-
4704901338 CAN-AM DecalCAN-AM Decal
-
5704901339 ROTAX 990 Decal. YellowROTAX 990 Decal. Yellow
-
5704901362 ROTAX 990 Decal. Full MoonROTAX 990 Decal. Full Moon
-
5704901801 ROTAX 990 Decal. RedROTAX 990 Decal. Red
-
6704901340 SPYDER DecalSPYDER Decal
-
7A704901343 Tire LabelTire Label
-
7b704901778 Tire Label. EuropeTire Label. Europe
-
8a704901344 Warning Decal, Maximum LoadWarning Decal, Maximum Load
-
8b704901770 Warning Decal, Maximum Load. EuropeWarning Decal, Maximum Load. Europe
-
9a704901347 Warning Decal, Safety ProceduresWarning Decal, Safety Procedures
-
9b704901776 Warning Decal, Safety Procedures. EuropeWarning Decal, Safety Procedures. Europe
-
10704901348 Speed Sensor DecalSpeed Sensor Decal
-
11704901353 Caution Decal (Windshield)Caution Decal (Windshield)
-
12704901380 Wheel Decal, Logo SPYDERWheel Decal, Logo SPYDER
-
13219902677 Logo, BRP 20 mmLogo, BRP 20 mm
-
14704901420 Hood MaskHood Mask
-
15704901786 Caution Decal, Engine Oil LevelCaution Decal, Engine Oil Level
-
16704901464 Decal Safety CardDecal Safety Card
-
17704901803 Warning Decal, Liquide De FreinWarning Decal, Liquide De Frein
-
18219400097 Decal Kit, CAN-AM And SPYDER. GS Black A19N ModelDecal Kit, CAN-AM And SPYDER. GS Black A19N Model
-
19704901383 Console Decal. GS Black A19N ModelConsole Decal. GS Black A19N Model
