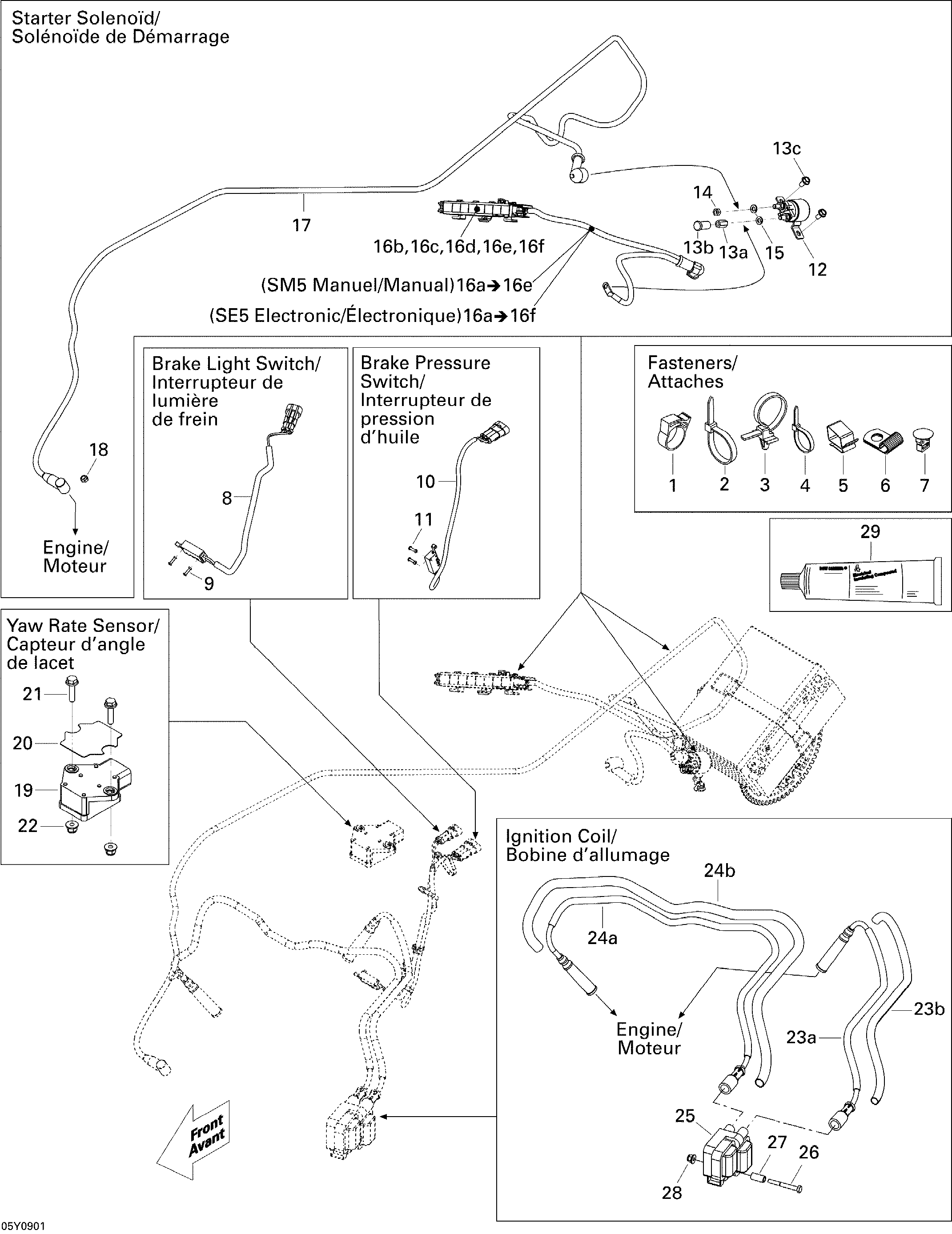

10- Electrical Accessories SE5 Electronic для BRP Spyder GS Roadster with SE5 transmission - 2009
-
№АртикулНазвание
-
1293650082 ClampClamp
-
2293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
3293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
4414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
5414227300 ClipClip
-
6415052400 AttacheAttache
-
7293750044 Tie Rap MountTie Rap Mount
-
8710001357 Brake Light Switch Ass'yBrake Light Switch Ass'y
-
9293150150 Pop RivetPop Rivet
-
10710001379 Brake Pressure Switch Ass'yBrake Pressure Switch Ass'y
-
11293150150 Pop RivetPop Rivet
-
12710001364 Starter RelayStarter Relay
-
13a250100117 Hex. Coupling Nut M6Hex. Coupling Nut M6
-
13b710001610 BootBoot
-
13c210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
14232061600 Hex. Nut M6Hex. Nut M6
-
15234161601 Lock Washer Helical M6Lock Washer Helical M6
-
16a710001641 Positive Cable. SE5 Electronic, A29B, A29C, A29D, A29E, A29F, A29GPositive Cable. SE5 Electronic, A29B, A29C, A29D, A29E, A29F, A29G
-
16a710001197 Positive Cable. SE5 Electronic, A29H, A29J, A29K, A29L, A29M, A29NPositive Cable. SE5 Electronic, A29H, A29J, A29K, A29L, A29M, A29N
-
16b710001046 Fuse, 25 AMPFuse, 25 AMP
-
16c710001200 Fuse 30 amp.Fuse 30 amp.
-
16d710001047 Fuse, 40 AMPFuse, 40 AMP
-
16e710001048 Fuse, 50 AMPFuse, 50 AMP
-
16f710001078 Fuse, 20 AMP. SE5 ElectronicFuse, 20 AMP. SE5 Electronic
-
17710000794 Positive CablePositive Cable
-
18232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
19710000790 Yaw Rate SensorYaw Rate Sensor
-
20293830127 Rubber BumperRubber Bumper
-
21207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
22233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
23a707000399 Cable Ass'yCable Ass'y
-
23b415079900 Tubing 10 mmTubing 10 mm
-
24a707000518 Cable Ass'yCable Ass'y
-
24b415079900 Tubing 10 mmTubing 10 mm
-
25278001546 Ignition CoilIgnition Coil
-
26207065044 Hex. Cap Screw M6 X 50Hex. Cap Screw M6 X 50
-
27512059812 SpacerSpacer
-
28233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
29293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
