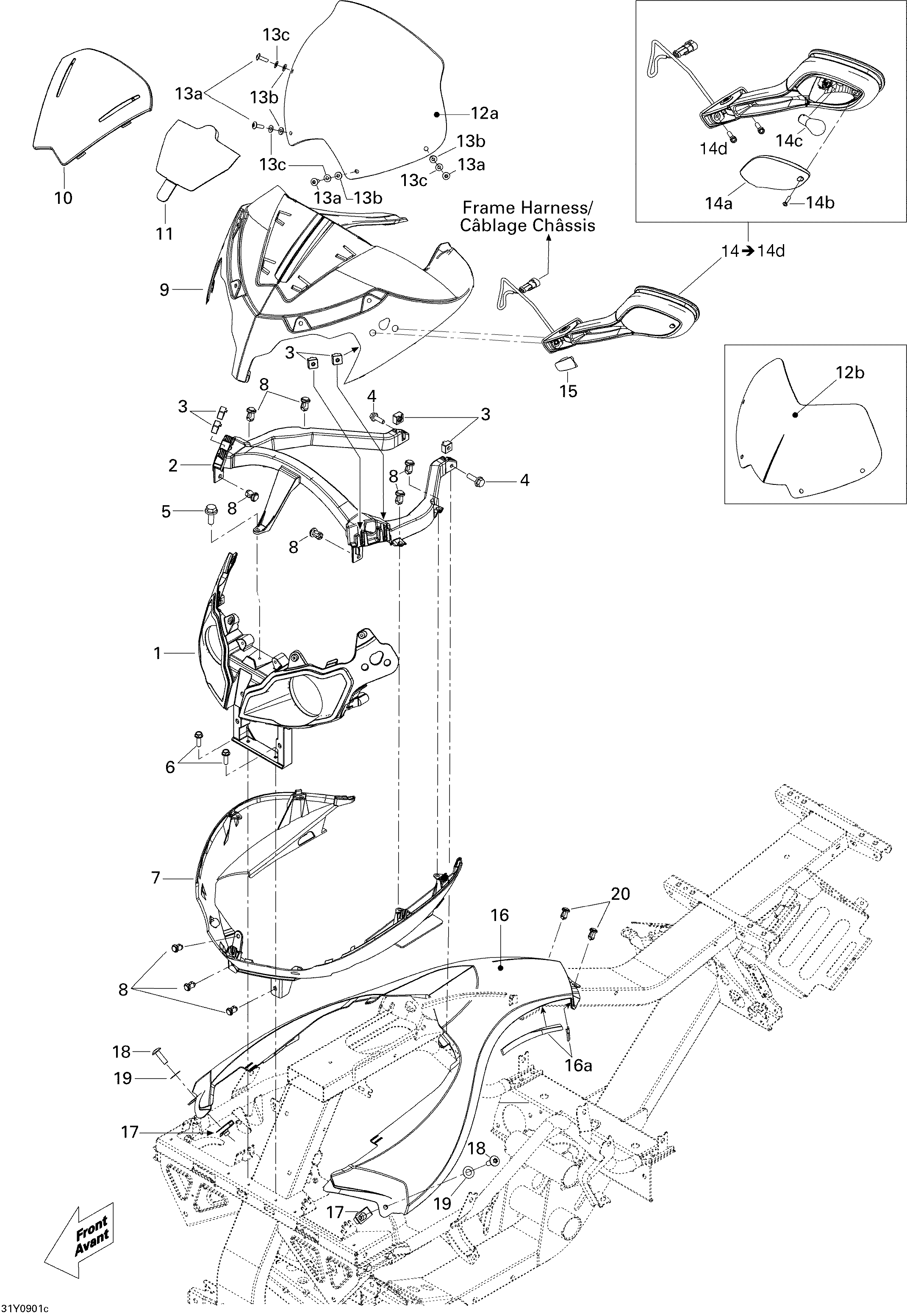

09- Body And Accessories Console для BRP Spyder GS Roadster with SE5 transmission - 2009
-
№АртикулНазвание
-
1705003035 Upper Headlamp SupportUpper Headlamp Support
-
2705001548 Console SupportConsole Support
-
3269500725 Nut Housing Ass'yNut Housing Ass'y
-
4207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
6210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
7705001427 Lower ConsoleLower Console
-
8293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
9705002082 Upper ConsoleUpper Console
-
10705002712 Upper Console DeflectorUpper Console Deflector
-
11705002715 Chart GuideChart Guide
-
12a705002939 WindshieldWindshield
-
12b705002645 Windshield. GS Black A19N ModelWindshield. GS Black A19N Model
-
13a250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
13b250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
13c234062670 Flat WasherFlat Washer
-
14705003372 LH Mirror Ass'y. Includes 14 to 14dLH Mirror Ass'y. Includes 14 to 14d
-
14705003373 RH Mirror Ass'y. Includes 14 to 14dRH Mirror Ass'y. Includes 14 to 14d
-
14a219800047 LH Mirror LensLH Mirror Lens
-
14a219800048 RH Mirror LensRH Mirror Lens
-
14b219800049 Screw M3.9 X 19Screw M3.9 X 19
-
14c219800046 Bulb 12V 21W, AmberBulb 12V 21W, Amber
-
14d250000417 Hex. Socket Screw M6 X 30Hex. Socket Screw M6 X 30
-
15705002704 LH Mirror CapLH Mirror Cap
-
15705002705 RH Mirror CapRH Mirror Cap
-
16705002603 Center Panel, Full Moon. Full MoonCenter Panel, Full Moon. Full Moon
-
16705002604 Center Panel, Yellow. YellowCenter Panel, Yellow. Yellow
-
16705003190 Center Panel, Red. RedCenter Panel, Red. Red
-
16705003172 Center Panel, Black. GS Black A19N ModelCenter Panel, Black. GS Black A19N Model
-
16a293250087 GasketGasket
-
17250100113 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
18250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
19705003207 Plastic WasherPlastic Washer
-
20293150089 Tuflok Plastic RivetTuflok Plastic Rivet
