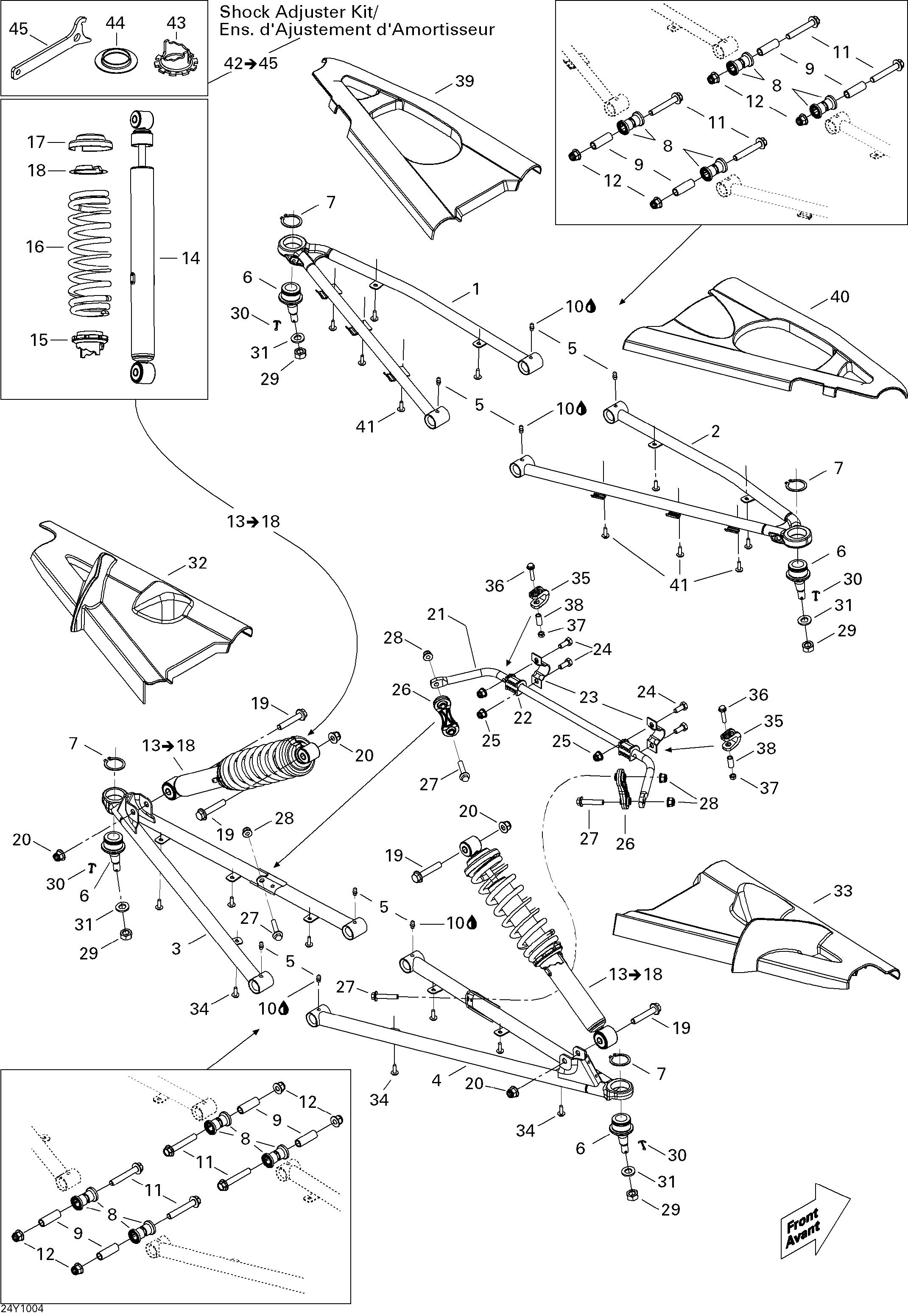

07- Suspension, Front SE5 Electronic для BRP Spyder RS Roadster SE5 - 2010
-
№АртикулНазвание
-
1505072406 LH Upper ArmLH Upper Arm
-
2505072407 RH Upper ArmRH Upper Arm
-
3505071697 LH Lower ArmLH Lower Arm
-
4505071703 RH Lower ArmRH Lower Arm
-
5408200700 Grease FittingGrease Fitting
-
6505072362 Ball JointBall Joint
-
7293370035 CirclipCirclip
-
8706200181 CushionCushion
-
9706200618 BushingBushing
-
10293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
11207606536 Hex Flange Screw M10 X 65Hex Flange Screw M10 X 65
-
12233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
14505071705 Front ShockFront Shock
-
15219800217 Shock Adjuster KitShock Adjuster Kit
-
16505071707 SpringSpring
-
17706200881 Spring StopperSpring Stopper
-
18503191610 CapCap
-
19207605534 Hex. Flanged ScrewHex. Flanged Screw
-
20233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
21505071708 Sway BarSway Bar
-
22505072287 Torsion BushingTorsion Bushing
-
23506095800 ClampClamp
-
24207182034 Hex. Cap Screw M8 X 20Hex. Cap Screw M8 X 20
-
25233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
26706200671 Tie RodTie Rod
-
27207684034 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
28233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
29250100099 Nut M12Nut M12
-
30250400035 Cotter PinCotter Pin
-
31250200086 Flat WasherFlat Washer
-
32706200629 LH DeflectorLH Deflector
-
33706200630 RH DeflectorRH Deflector
-
34243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
35706200649 Sway Bar StopperSway Bar Stopper
-
36207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
37232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
38517302179 BushingBushing
-
39706200870 LH Upper Deflector. SE5 ElectronicLH Upper Deflector. SE5 Electronic
-
40706200871 RH Upper Deflector. SE5 ElectronicRH Upper Deflector. SE5 Electronic
-
41243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
42219800217 Shock Adjuster Kit. Includes 42 to 45Shock Adjuster Kit. Includes 42 to 45
-
43706001061 Adjuster RingAdjuster Ring
-
44706001062 Ring ProtectorRing Protector
-
45529000059 Adjustment WrenchAdjustment Wrench
