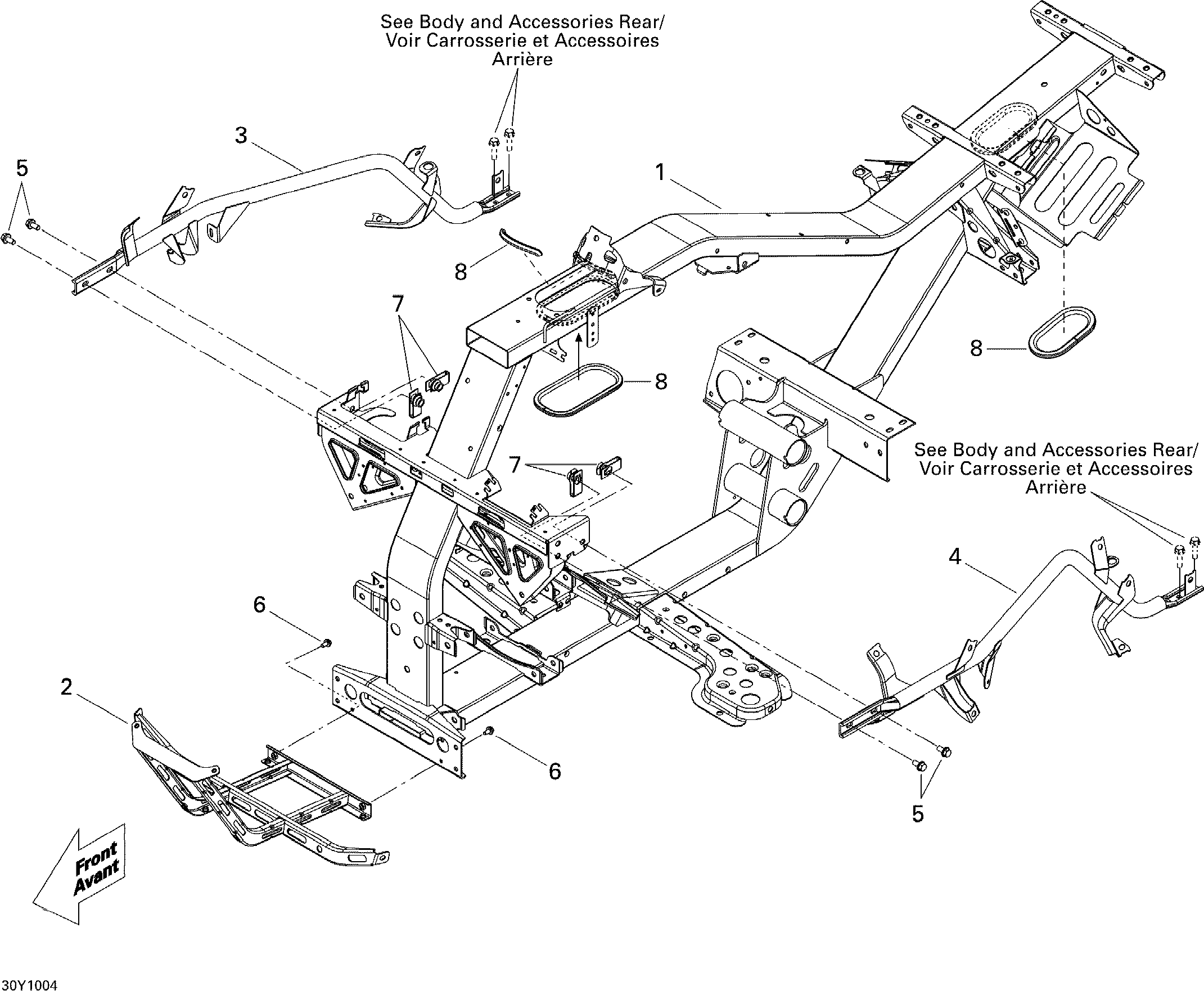

09- Frame для BRP Spyder RS Roadster SE5 - 2010
-
№АртикулНазвание
-
1705201987 FrameFrame
-
2705201326 Front FrameFront Frame
-
3705201354 Support RHSupport RH
-
4705201355 Support LHSupport LH
-
5207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
6207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
7250100118 Panel Nut M8 X 1,25Panel Nut M8 X 1,25
-
8271001530 TrimTrim
