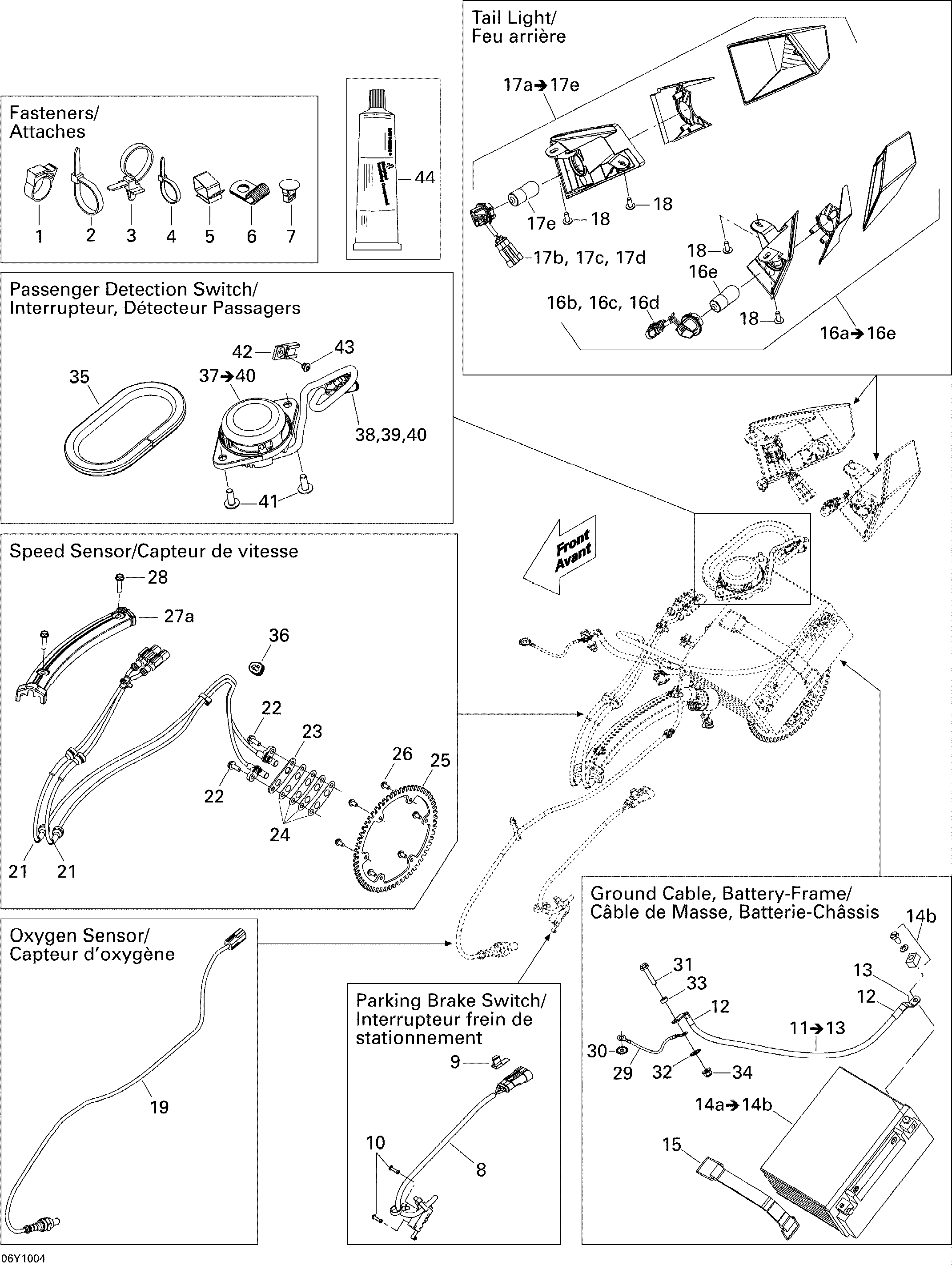

10- Electrical Accessories, Rear для BRP Spyder RS Roadster SE5 - 2010
-
№АртикулНазвание
-
1293650082 ClampClamp
-
2293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
3293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
4414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
5414227300 ClipClip
-
6415052400 AttacheAttache
-
7293750044 Tie Rap MountTie Rap Mount
-
8710001379 Brake Pressure Switch Ass'yBrake Pressure Switch Ass'y
-
9710001343 ClipClip
-
10293150150 Pop RivetPop Rivet
-
11710000830 Ground Cable, Battery/frame. Includes 11 to 13Ground Cable, Battery/frame. Includes 11 to 13
-
12710000483 Shrink TubingShrink Tubing
-
13710000518 Open BarrelOpen Barrel
-
14a410922962 Battery, 12 Volts, 21 Amperes. Includes 14a to 14bBattery, 12 Volts, 21 Amperes. Includes 14a to 14b
-
14b295500849 Battery Fastener KitBattery Fastener Kit
-
15515176044 Battery StrapBattery Strap
-
16a710000706 Tail Light Ass'y. Includes 16a to 16eTail Light Ass'y. Includes 16a to 16e
-
16b710000568 HousingHousing
-
16c409012900 Male TerminalMale Terminal
-
16d278001013 Wire SealWire Seal
-
16e410504100 Tail Light BulbTail Light Bulb
-
17a710000869 Tail Light Ass'y. Includes 17a to 17eTail Light Ass'y. Includes 17a to 17e
-
17b710000568 HousingHousing
-
17c409012900 Male TerminalMale Terminal
-
17d278001013 Wire SealWire Seal
-
17E410504100 Tail Light BulbTail Light Bulb
-
18250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
19707600557 Oxygen SensorOxygen Sensor
-
21706200560 Speed SensorSpeed Sensor
-
22210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
23710001212 ShimShim
-
24710001213 ShimShim
-
25705600573 Tone WheelTone Wheel
-
26207551034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
27a710001035 ProtectorProtector
-
28210263080 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
29710001165 Ground HarnessGround Harness
-
30250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
31207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
32250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
33293900054 BushingBushing
-
34233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
35271001530 TrimTrim
-
36293720080 GrommetGrommet
-
37710001346 Passenger Detection Switch. Includes 37 to 40Passenger Detection Switch. Includes 37 to 40
-
38409207400 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
39278000632 Female TerminalFemale Terminal
-
40409207200 (Female) Secondary Lock (3 Circuits) (Deutsch)(Female) Secondary Lock (3 Circuits) (Deutsch)
-
41250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
42270000141 ClipClip
-
43390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
44293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
