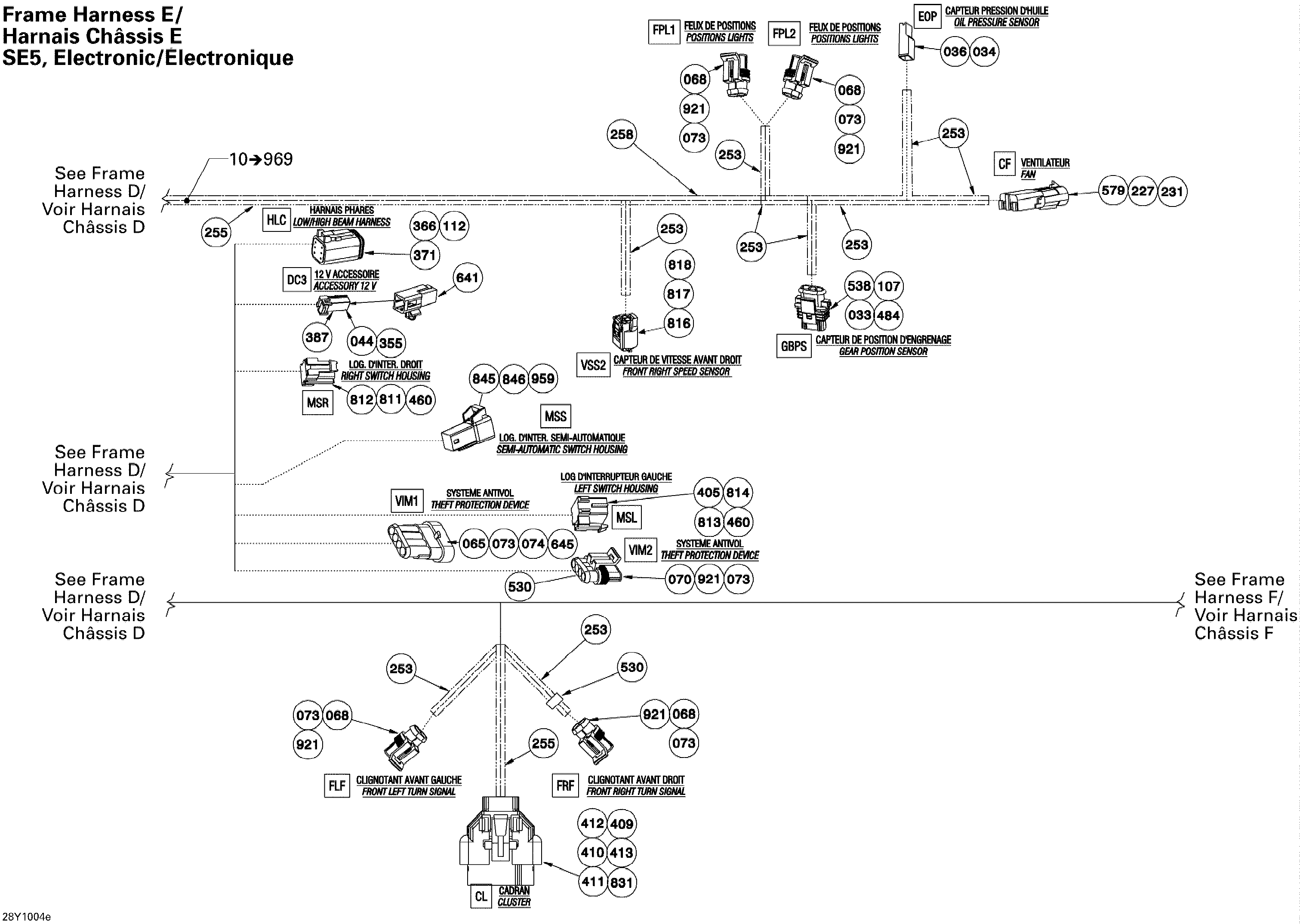

10- Frame Harness E_SE5 Electronic для BRP Spyder RS Roadster SE5 - 2010
-
№АртикулНазвание
-
10710001653 Frame Harness Ass'y. Includes 10 to 969Frame Harness Ass'y. Includes 10 to 969
-
21409004800 Female TerminalFemale Terminal
-
33278000999 Wire SealWire Seal
-
34409010100 Female TerminalFemale Terminal
-
36409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
44515175231 Female TerminalFemale Terminal
-
61409012900 Male TerminalMale Terminal
-
62278001014 Female TerminalFemale Terminal
-
65710000576 Housing, 4circuitsHousing, 4circuits
-
68409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
69409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
70409209700 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
73278001013 Wire SealWire Seal
-
74409013700 PlugPlug
-
107278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
112278000632 Female TerminalFemale Terminal
-
120409207300 Female Connector, 2 CircuitsFemale Connector, 2 Circuits
-
124278001473 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
127409207600 Male Lock, 3 CircuitsMale Lock, 3 Circuits
-
132409207100 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
136278001744 Secondary Lock, 8 CircuitsSecondary Lock, 8 Circuits
-
186515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
188409902000 Tubing 12 mmTubing 12 mm
-
196293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
203278001113 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
227409004300 Male TerminalMale Terminal
-
231278000217 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
253515175442 Tubing 6 mmTubing 6 mm
-
254409901700 Tubing 9 mmTubing 9 mm
-
255409901800 Tubing 13 mmTubing 13 mm
-
256415080000 Tubing 16 mmTubing 16 mm
-
257409901600 Tubing, 19 mmTubing, 19 mm
-
258415079900 Tubing 10 mmTubing 10 mm
-
260515175319 Tubing 22 mmTubing 22 mm
-
301409012700 DiodeDiode
-
331710000244 Protector Tube, 4 mmProtector Tube, 4 mm
-
339278001012 Male Housing, 1 CircuitMale Housing, 1 Circuit
-
355515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
359515175666 Male HousingMale Housing
-
365515175672 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
366515175673 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
370515175677 Male Wedge, 4 CircuitsMale Wedge, 4 Circuits
-
371515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
387293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
388278001750 Female TerminalFemale Terminal
-
391278001751 Male Housing, 41 CircuitsMale Housing, 41 Circuits
-
405515175808 Female TerminalFemale Terminal
-
409515175812 PlugPlug
-
410515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
411515175802 Retainer BlockRetainer Block
-
412515175803 Wire SealWire Seal
-
413515175804 BlockBlock
-
415515175806 Female TerminalFemale Terminal
-
420414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
426515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
437515175886 SealSeal
-
438515175883 LatchLatch
-
439515175884 LockLock
-
440515175885 CoverCover
-
460515175941 Female TerminalFemale Terminal
-
475710000643 SealSeal
-
476278001482 SealSeal
-
484415128501 SealSeal
-
524512059668 Shrink TubingShrink Tubing
-
538278001210 Female TerminalFemale Terminal
-
579710000504 Wire SealWire Seal
-
596710000670 CapCap
-
641710000667 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
645515176164 Male TerminalMale Terminal
-
652515176221 Female HousingFemale Housing
-
653515176222 Wire SealWire Seal
-
654515176223 Female Terminal Housing, 36 CircuitsFemale Terminal Housing, 36 Circuits
-
655515176224 Terminal SupportTerminal Support
-
663710000739 Relay, 10 AmperesRelay, 10 Amperes
-
666710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
668710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
669710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
675710000660 Fuse Box Ass'yFuse Box Ass'y
-
684710000781 Fuse PullerFuse Puller
-
702710000836 Female TerminalFemale Terminal
-
703710000837 Female TerminalFemale Terminal
-
706710000840 CapCap
-
732710000877 TerminalTerminal
-
734710000879 Housing, 3 CircuitsHousing, 3 Circuits
-
736710000881 SealSeal
-
737710000882 CapCap
-
750710000913 TerminalTerminal
-
766278002164 Female TerminalFemale Terminal
-
770710001008 Little Fuse, 3 AmpereLittle Fuse, 3 Ampere
-
773710001026 Fuse CoverFuse Cover
-
784710001050 Male TerminalMale Terminal
-
785710001051 Male TerminalMale Terminal
-
787710001053 Fuse HolderFuse Holder
-
788710001054 Fuse HolderFuse Holder
-
789710001055 Fuse HolderFuse Holder
-
790710001057 Fuse HolderFuse Holder
-
805710001132 HousingHousing
-
806710001133 LockLock
-
807710001134 Female TerminalFemale Terminal
-
808710001138 HousingHousing
-
809710001139 LockLock
-
810710001140 Female TerminalFemale Terminal
-
811710001124 HousingHousing
-
812710001125 LockLock
-
813710001126 HousingHousing
-
814710001127 LockLock
-
815710001121 Female TerminalFemale Terminal
-
816710001116 HousingHousing
-
817710001117 Female TerminalFemale Terminal
-
818710001118 Wire SealWire Seal
-
820710001128 HousingHousing
-
822710001122 HousingHousing
-
823710001123 HousingHousing
-
824710001136 HousingHousing
-
825710001135 Wire SealWire Seal
-
826710001137 Female TerminalFemale Terminal
-
827710001119 Female TerminalFemale Terminal
-
828710001120 HousingHousing
-
830710001130 Female TerminalFemale Terminal
-
831710001131 Female TerminalFemale Terminal
-
835710001141 Wire SealWire Seal
-
845710001155 HousingHousing
-
846710001156 LockLock
-
847710001157 HousingHousing
-
849710001159 Wire SealWire Seal
-
850710001160 Female TerminalFemale Terminal
-
851710001161 HousingHousing
-
852710001162 LockLock
-
853710001163 Wire SealWire Seal
-
854710001164 Female TerminalFemale Terminal
-
875710000968 Fuse DecalFuse Decal
-
880710001114 CapCap
-
894710001225 CapCap
-
915710001315 HousingHousing
-
921710001340 Female TerminalFemale Terminal
-
928710001348 Male TerminalMale Terminal
-
933710001338 CapCap
-
946278002172 FoamFoam
-
959710001420 Male TerminalMale Terminal
-
969710001463 Wire SealWire Seal
