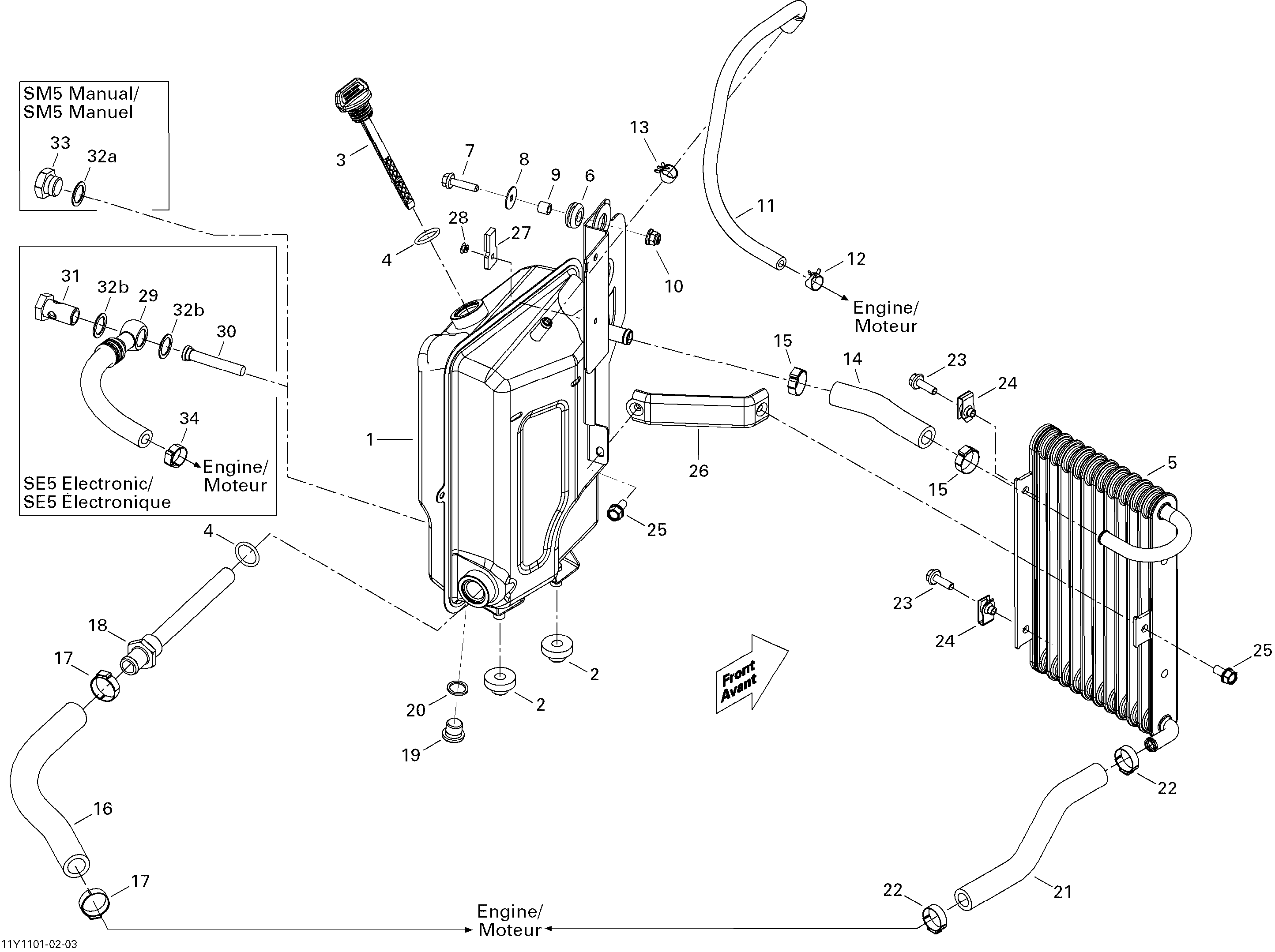

02- Oil System SE5 для BRP Spyder RS Roadster SE5 - 2011
-
№АртикулНазвание
-
1519000246 Oil TankOil Tank
-
2709200285 GrommetGrommet
-
3519000155 Oil CapOil Cap
-
4709000218 O-RingO-Ring
-
5519000123 Oil RadiatorOil Radiator
-
6293720053 GrommetGrommet
-
7207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
8224060201 Flat WasherFlat Washer
-
9293900045 BushingBushing
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11519000208 Formed HoseFormed Hose
-
12414415200 Universal Spring ClampUniversal Spring Clamp
-
13414655700 Spring ClampSpring Clamp
-
14519000199 12,7 mm Hose12,7 mm Hose
-
15293650186 Oetiker ClampOetiker Clamp
-
16519000200 15,9 mm Hose15,9 mm Hose
-
17509000552 Gear ClampGear Clamp
-
18519000219 StrainerStrainer
-
19705500504 Fill Level PlugFill Level Plug
-
20705500506 Copper WasherCopper Washer
-
21519000199 12,7 mm Hose12,7 mm Hose
-
22293650186 Oetiker ClampOetiker Clamp
-
23207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
24250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
25210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
26519000175 Radiator SupportRadiator Support
-
27515176209 Deutsch Gray Clip. SE5Deutsch Gray Clip. SE5
-
28390402400 Pop Rivet 3/16''. SE5Pop Rivet 3/16''. SE5
-
29519000140 Hose. SE5Hose. SE5
-
30519000144 Strainer. SE5Strainer. SE5
-
31705600527 Banjo Bolt. SE5Banjo Bolt. SE5
-
32b519000148 Copper Washer. SE5Copper Washer. SE5
-
34293650030 Oetiker Clamp. SE5Oetiker Clamp. SE5
