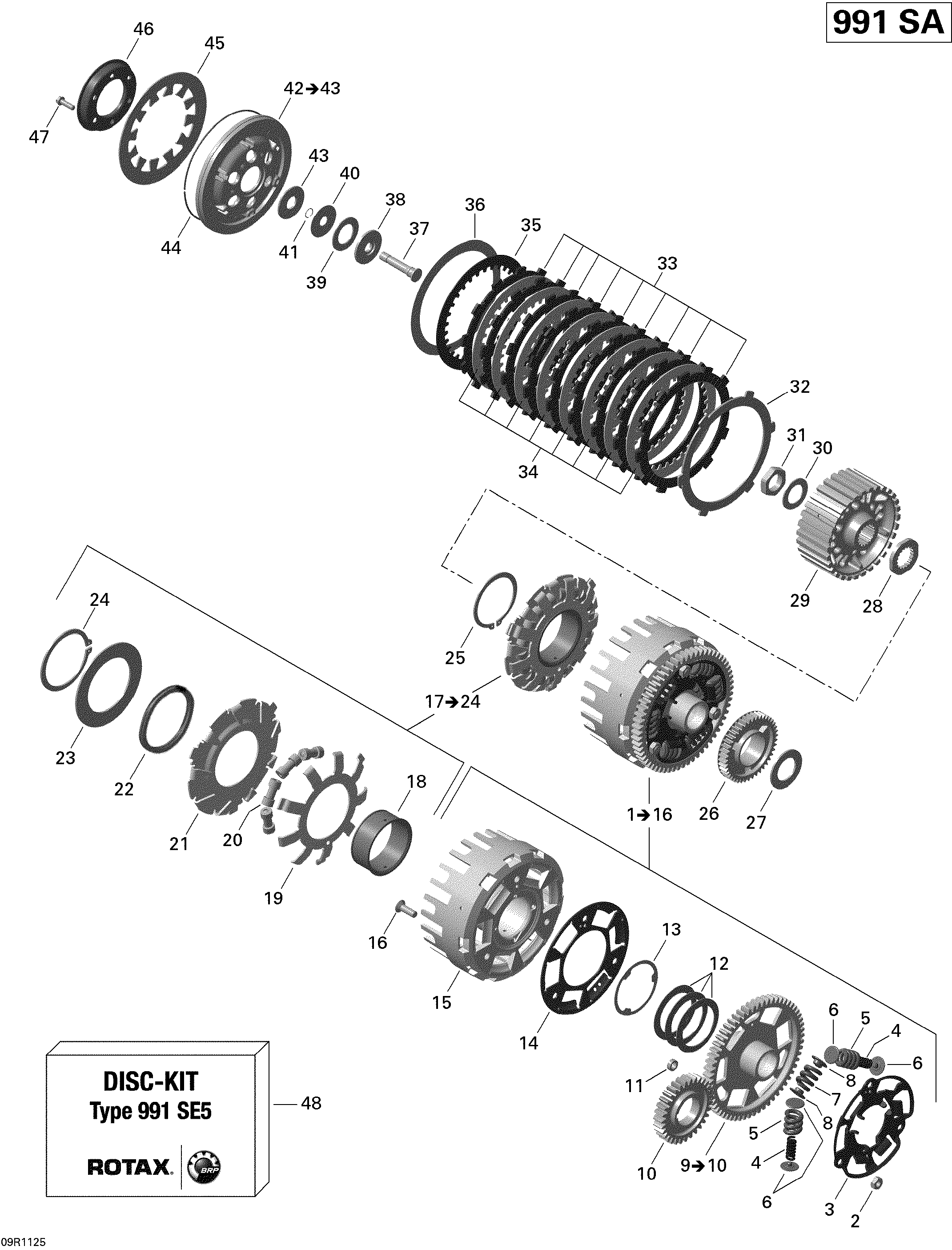

05- Clutch для BRP Spyder RS Roadster SE5 - 2011
-
№АртикулНазвание
-
2232081414 Hex. Nut M8Hex. Nut M8
-
3420259583 Outer Support PlateOuter Support Plate
-
4420238140 Internal Compression SpringInternal Compression Spring
-
5420238135 Compression SpringCompression Spring
-
6420247971 Spring RetainerSpring Retainer
-
7420238130 Compression SpringCompression Spring
-
8420247976 Spring RetainerSpring Retainer
-
9420684815 Primary Drive Gear Ass'y. Includes 9 to 10Primary Drive Gear Ass'y. Includes 9 to 10
-
11420247614 Spacer SleeveSpacer Sleeve
-
12420239395 Disc SpringDisc Spring
-
13420627916 Thrust WasherThrust Washer
-
14420259685 Support PlateSupport Plate
-
15420659720 Clutch DrumClutch Drum
-
16420941835 Flat Head Screw, M8 X 25Flat Head Screw, M8 X 25
-
17420685545 Centrifugal Clutch Ass'y. Includes 17 to 24Centrifugal Clutch Ass'y. Includes 17 to 24
-
18420659852 BushingBushing
-
19420659821 CamCam
-
20420229947 Centrifugal WeightCentrifugal Weight
-
21420659740 Pressure PlatePressure Plate
-
22420238922 Wave SpringWave Spring
-
23420626390 Stop PlateStop Plate
-
24420245080 Retaining RingRetaining Ring
-
25420245070 Retaining RingRetaining Ring
-
26420634476 Oil Gear Pump, 42 TeethOil Gear Pump, 42 Teeth
-
27420626540 Thrust WasherThrust Washer
-
28420627225 Thrust WasherThrust Washer
-
29420659750 Clutch HubClutch Hub
-
30420245830 Spring WasherSpring Washer
-
31420242950 Hex. Nut M24Hex. Nut M24
-
32420659970 Plate 2.5 mm. See Item 48, Disc KitPlate 2.5 mm. See Item 48, Disc Kit
-
35420281535 Adjustment Plate KitAdjustment Plate Kit
-
36420238860 Disc Spring. See Item 48, Disc KitDisc Spring. See Item 48, Disc Kit
-
37420659797 PinPin
-
38420659890 Thrust WasherThrust Washer
-
39420632700 Needle BearingNeedle Bearing
-
40420626560 Thrust WasherThrust Washer
-
41420245440 Snap RingSnap Ring
-
42420659737 Pressure Plate Ass'y. Includes 42 to 43Pressure Plate Ass'y. Includes 42 to 43
-
43420626570 Thrust WasherThrust Washer
-
44420245250 Retaining RingRetaining Ring
-
45420238530 Disc Spring. See Item 48, Disc KitDisc Spring. See Item 48, Disc Kit
-
46420259860 Plate InnerPlate Inner
-
47420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
48420281935 Disc Kit, Type 991 SE5Disc Kit, Type 991 SE5
