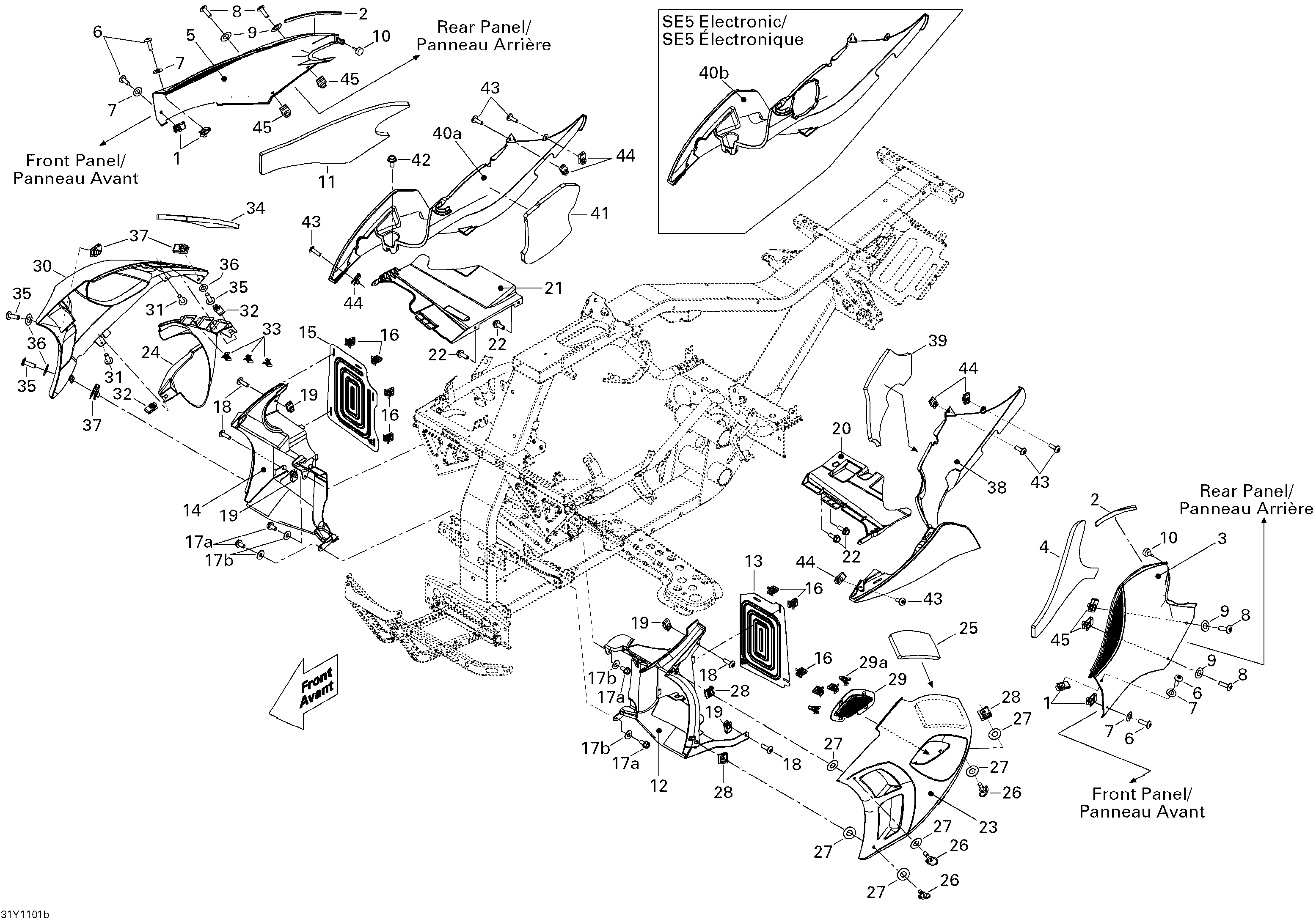

09- Body And Accessories Side SE5 для BRP Spyder RS Roadster SE5 - 2011
-
№АртикулНазвание
-
1250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
2293250087 Gasket, NeopreneGasket, Neoprene
-
3705003891 LH Upper Side Panel, Pearl White. White Pearl ModelLH Upper Side Panel, Pearl White. White Pearl Model
-
3705004622 LH Upper Side Panel, Metallic Magnesium. Magnesium-Black ModelLH Upper Side Panel, Metallic Magnesium. Magnesium-Black Model
-
3705004626 LH Upper Side Panel, Alloy Orange. RS-S Alloy Orange-Black ModelLH Upper Side Panel, Alloy Orange. RS-S Alloy Orange-Black Model
-
4518325517 LH Upper Side Panel FoamLH Upper Side Panel Foam
-
5705003892 RH Upper Side Panel, Pearl White. White Pearl ModelRH Upper Side Panel, Pearl White. White Pearl Model
-
5705004623 RH Upper Side Panel, Metallic Magnesium. Magnesium-Black ModelRH Upper Side Panel, Metallic Magnesium. Magnesium-Black Model
-
5705004627 RH Upper Side Panel, Alloy Orange. RS-S Alloy Orange-Black ModelRH Upper Side Panel, Alloy Orange. RS-S Alloy Orange-Black Model
-
6250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
7705003207 Plastic WasherPlastic Washer
-
8250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
9705003207 Plastic WasherPlastic Washer
-
10708000759 Rubber StopperRubber Stopper
-
11518325518 RH Upper Side Panel FoamRH Upper Side Panel Foam
-
12705005010 LH Flashing CapLH Flashing Cap
-
13705005011 LH Radiator GridLH Radiator Grid
-
14705001486 RH Radiator Hub CapRH Radiator Hub Cap
-
15705002518 RH Radiator GrillRH Radiator Grill
-
16517302785 ClipClip
-
17a210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
17b234062670 Flat WasherFlat Washer
-
18250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
19250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
20705002331 LH Deflector PanelLH Deflector Panel
-
21705002332 RH Deflector PanelRH Deflector Panel
-
22210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
23705004643 LH Side Panel, Metallic Magnesium. Magnesium-Black ModelLH Side Panel, Metallic Magnesium. Magnesium-Black Model
-
23705004645 LH Side Panel, Alloy Orange. RS-S Alloy Orange-Black ModelLH Side Panel, Alloy Orange. RS-S Alloy Orange-Black Model
-
23705005098 LH Side Panel, White Pearl. White Pearl ModelLH Side Panel, White Pearl. White Pearl Model
-
24705002831 Heat DeflectorHeat Deflector
-
25518324749 LH Side Panel FoamLH Side Panel Foam
-
26705002649 Quarter Turn ScrewQuarter Turn Screw
-
27705002650 WasherWasher
-
28705002651 Quarter Turn NutQuarter Turn Nut
-
29705002369 LH Lateral GrillLH Lateral Grill
-
29a517302785 ClipClip
-
30705004644 RH Side Panel, Metallic Magnesium. Magnesium-Black ModelRH Side Panel, Metallic Magnesium. Magnesium-Black Model
-
30705004646 RH Side Panel, Alloy Orange. RS-S Alloy Orange-Black ModelRH Side Panel, Alloy Orange. RS-S Alloy Orange-Black Model
-
30705005097 RH Side Panel, White Pearl. White Pearl ModelRH Side Panel, White Pearl. White Pearl Model
-
31250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
32250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
33517302785 ClipClip
-
34518324750 RH Side Panel FoamRH Side Panel Foam
-
35250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
36705003207 Plastic WasherPlastic Washer
-
37250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
38705001612 LH Rocker PanelLH Rocker Panel
-
39518324753 LH Rocker Panel FoamLH Rocker Panel Foam
-
40b705002478 RH Rocker Panel, Semi-Automatic. SE5RH Rocker Panel, Semi-Automatic. SE5
-
41518324754 RH Rocker Panel FoamRH Rocker Panel Foam
-
42210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
43250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
44250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
45250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
