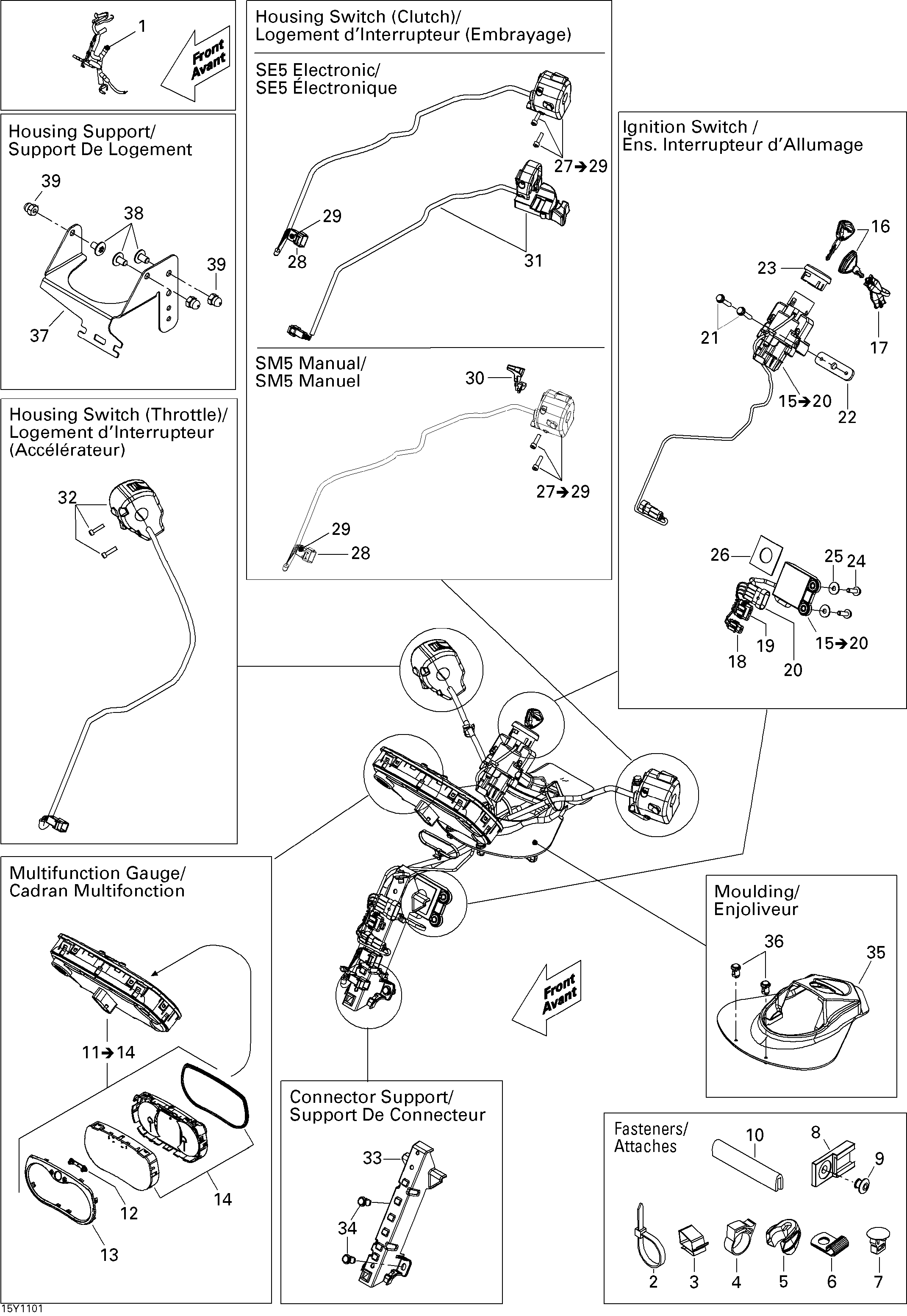

10- Electrical Accessories, Steering SE5 для BRP Spyder RS Roadster SE5 - 2011
-
№АртикулНазвание
-
1710001731 Frame Harness. SE5Frame Harness. SE5
-
2414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
2293750009 Tie-Rap 173 mm. SE5Tie-Rap 173 mm. SE5
-
2293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
4293650082 ClampClamp
-
5710001452 Wire BracketWire Bracket
-
6415052400 AttacheAttache
-
7293750044 Tie Rap MountTie Rap Mount
-
8270000141 ClipClip
-
9390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
10271001530 TrimTrim
-
11710002707 Speedometer Program Indicator. Includes 11 to 14Speedometer Program Indicator. Includes 11 to 14
-
12415129355 Speedometer ButtonSpeedometer Button
-
13415129348 Gauge RingGauge Ring
-
14415129349 LensLens
-
15219800196 Ignition Switch. Includes 15 to 20Ignition Switch. Includes 15 to 20
-
16710001211 KeyKey
-
17710001102 CoverCover
-
18409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
19409209700 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
20710000576 Housing, 4circuitsHousing, 4circuits
-
21207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
22710001365 Switch SupportSwitch Support
-
23710001194 Switch CoverSwitch Cover
-
24210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
25234062410 Flat Washer 6 mmFlat Washer 6 mm
-
26293830091 Rubber BumperRubber Bumper
-
27515176197 Housing Switch. Includes 27 to 29Housing Switch. Includes 27 to 29
-
28710001148 HousingHousing
-
29710001149 LockLock
-
31515176198 SE5 Shift Switch Housing. SE5SE5 Shift Switch Housing. SE5
-
32710001488 Housing SwitchHousing Switch
-
33710001328 Connector SupportConnector Support
-
34293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
35710002074 MouldingMoulding
-
36390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
37705202289 Housing SupportHousing Support
-
38250000349 Torx Truss Screw M6 X 10Torx Truss Screw M6 X 10
-
39232361493 Domed Nut M6Domed Nut M6
