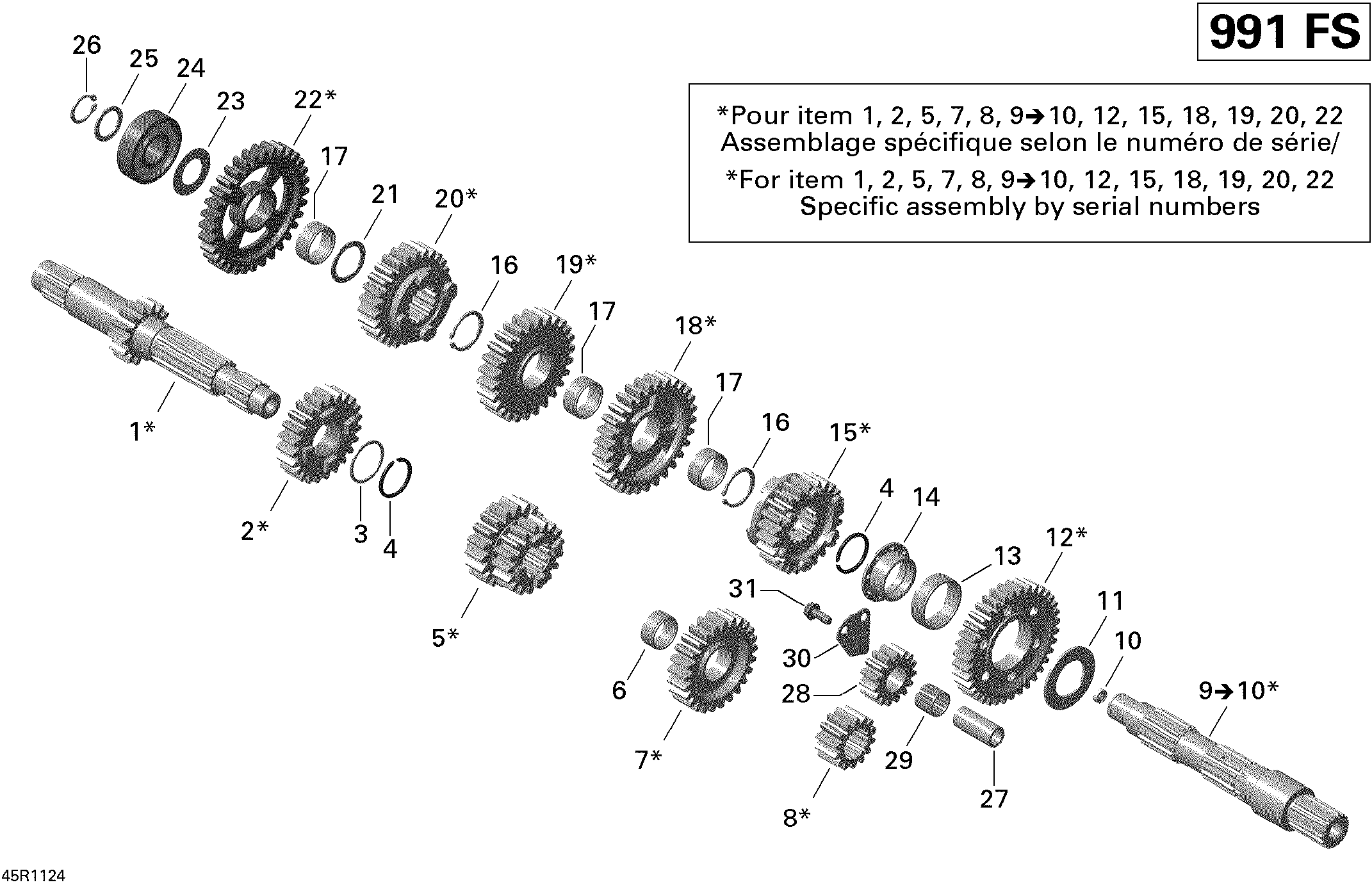

05- Gear Box для BRP Spyder RS Roadster SM5 - 2011
-
№АртикулНазвание
-
1420620602 Clutch Shaft. Serial number lower than 8454845Clutch Shaft. Serial number lower than 8454845
-
1420620604 Clutch Shaft. Serial number 8454846 and upClutch Shaft. Serial number 8454846 and up
-
2420434446 Free Pinion, 23 Teeth Ass'y. Serial number lower than 8454845Free Pinion, 23 Teeth Ass'y. Serial number lower than 8454845
-
2420434447 Free Pinion, 23 Teeth. Serial number 8454846 and upFree Pinion, 23 Teeth. Serial number 8454846 and up
-
3420627120 Thrust WasherThrust Washer
-
4420245815 Snap RingSnap Ring
-
5420434410 Pinion Gear, 17/19 Teeth. Serial number lower than 8454845Pinion Gear, 17/19 Teeth. Serial number lower than 8454845
-
5420434411 Pinion Gear, 17/19 Teeth. Serial number 8454846 and upPinion Gear, 17/19 Teeth. Serial number 8454846 and up
-
6420232530 Needle BearingNeedle Bearing
-
7420434461 Free Pinion, 25 Teeth. Serial number lower than 8454845Free Pinion, 25 Teeth. Serial number lower than 8454845
-
7420434462 Free Pinion, 25 Teeth. Serial number 8454846 and upFree Pinion, 25 Teeth. Serial number 8454846 and up
-
8420434482 Pinion Gear, 14 Teeth. Serial number lower than 8454845Pinion Gear, 14 Teeth. Serial number lower than 8454845
-
8420434483 Pinion Gear, 14 Teeth. Serial number 8454846 and upPinion Gear, 14 Teeth. Serial number 8454846 and up
-
9420620612 Main Shaft. Includes 9 to 10, Serial number lower than 8454845Main Shaft. Includes 9 to 10, Serial number lower than 8454845
-
9420620616 Main Shaft. Includes 9 to 10, Serial number 8454846 and upMain Shaft. Includes 9 to 10, Serial number 8454846 and up
-
10420930500 Oil SealOil Seal
-
11420626380 Thrust RingThrust Ring
-
12420434502 Free Pinion, 36 Teeth. Serial number lower than 8454845Free Pinion, 36 Teeth. Serial number lower than 8454845
-
12420434503 Free Pinion, 36 Teeth. Serial number 8454846 and upFree Pinion, 36 Teeth. Serial number 8454846 and up
-
13420632195 Needle CageNeedle Cage
-
14420632530 BushingBushing
-
15420434471 Pinion Gear, 24 Teeth. Serial number lower than 8454845Pinion Gear, 24 Teeth. Serial number lower than 8454845
-
15420434472 Pinion Gear, 24 Teeth. Serial number 8454846 and upPinion Gear, 24 Teeth. Serial number 8454846 and up
-
16420845775 Retaining RingRetaining Ring
-
17420632070 Needle BearingNeedle Bearing
-
18420434421 Pinion Gear, 29 Teeth. Serial number lower than 8454845Pinion Gear, 29 Teeth. Serial number lower than 8454845
-
18420434422 Pinion Gear, 29 Teeth. Serial number 8454846 and upPinion Gear, 29 Teeth. Serial number 8454846 and up
-
19420434431 Pinion Gear, 26 Teeth. Serial number lower than 8454845Pinion Gear, 26 Teeth. Serial number lower than 8454845
-
19420434432 Pinion Gear, 26 Teeth. Serial number 8454846 and upPinion Gear, 26 Teeth. Serial number 8454846 and up
-
20420434451 Pinion Gear, 26 Teeth. Serial number lower than 8454845Pinion Gear, 26 Teeth. Serial number lower than 8454845
-
20420434452 Pinion Gear, 26 Teeth. Serial number 8454846 and upPinion Gear, 26 Teeth. Serial number 8454846 and up
-
21420427106 WasherWasher
-
22420434402 Pinion Gear, 32 Teeth. Serial number lower than 8454845Pinion Gear, 32 Teeth. Serial number lower than 8454845
-
22420481030 Gear Set. Serial number 8454846 and upGear Set. Serial number 8454846 and up
-
23420827110 ShimShim
-
24420632070 Needle BearingNeedle Bearing
-
25420227442 Thrust WasherThrust Washer
-
26420945665 Retaining RingRetaining Ring
-
27420229450 BoltBolt
-
28420434372 Pinion Gear, 15 TeethPinion Gear, 15 Teeth
-
29420432030 Needle CageNeedle Cage
-
30420224740 Locking TieLocking Tie
-
31420240580 Taptite Screw M6 X 16Taptite Screw M6 X 16
