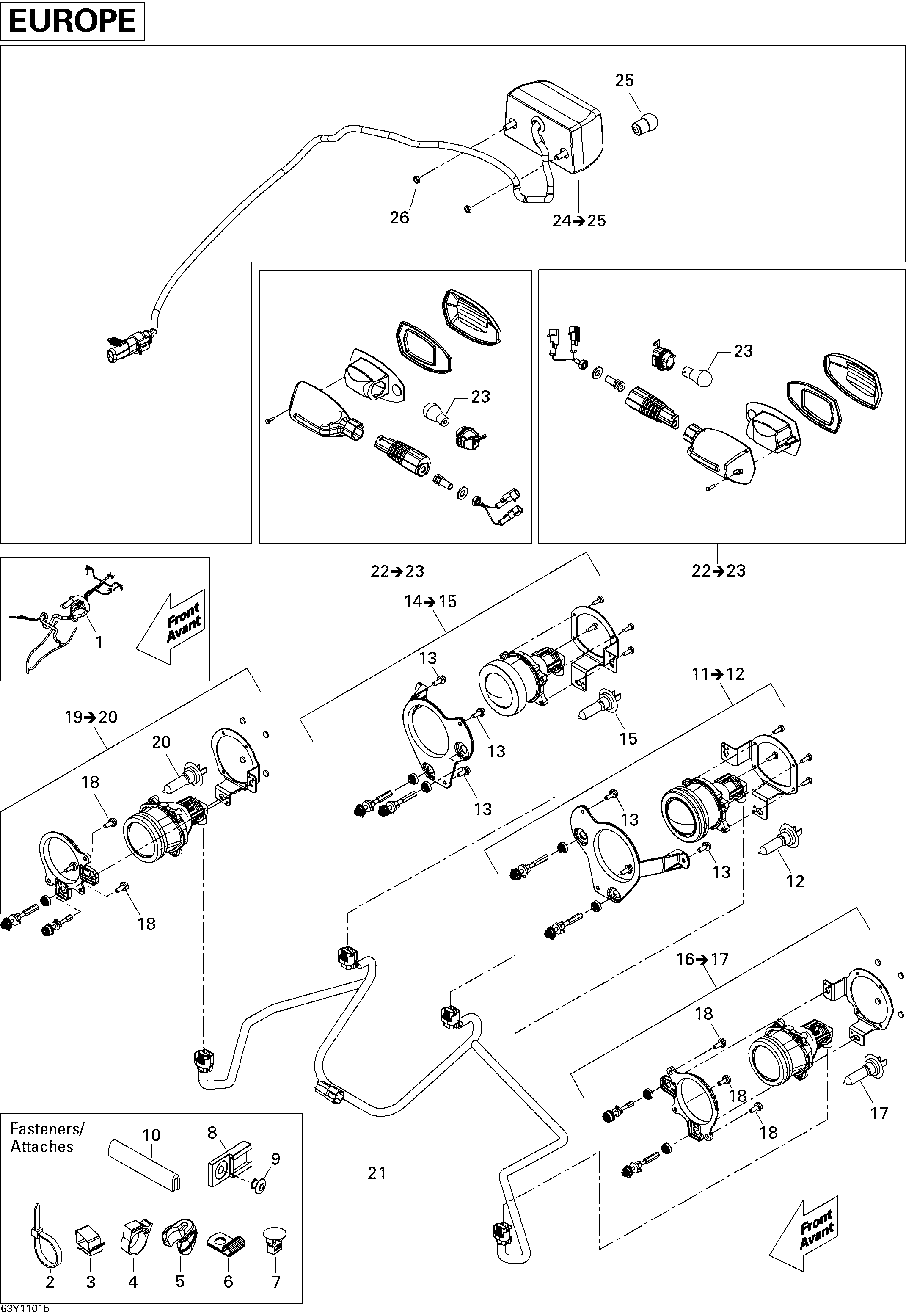

10- Lighting System Europe SM5 для BRP Spyder RS Roadster SM5 - 2011
-
№АртикулНазвание
-
1710001730 Frame Harness. SM5Frame Harness. SM5
-
2414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
2293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
3414227300 Clip. SM5Clip. SM5
-
4293650082 ClampClamp
-
5710001452 Wire BracketWire Bracket
-
6415052400 AttacheAttache
-
7293750044 Tie Rap MountTie Rap Mount
-
8270000141 ClipClip
-
9390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
10271001530 TrimTrim
-
11710002500 LH High Beam Ass'y. Includes 11 to 12LH High Beam Ass'y. Includes 11 to 12
-
12415129249 Halogen BulbHalogen Bulb
-
13207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
14710002499 RH High Beam Ass'y. Includes 14 to 15RH High Beam Ass'y. Includes 14 to 15
-
15415129249 Halogen BulbHalogen Bulb
-
16710002498 LH Low Beam Ass'y. Includes 16 to 17LH Low Beam Ass'y. Includes 16 to 17
-
17415129249 Halogen BulbHalogen Bulb
-
18207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
19710002497 RH Low Beam Ass'y. Includes 19 to 20RH Low Beam Ass'y. Includes 19 to 20
-
20415129249 Halogen BulbHalogen Bulb
-
21710000793 Beam Harness Ass'yBeam Harness Ass'y
-
22710000707 Rear Turn Signal Ass'y. Includes 22 to 23Rear Turn Signal Ass'y. Includes 22 to 23
-
23715900043 Bulb 12V 21WBulb 12V 21W
-
24710001993 Licence Light. Includes 24 to 25Licence Light. Includes 24 to 25
-
25415129261 BulbBulb
-
26233251494 Elastic Flanged NutElastic Flanged Nut
