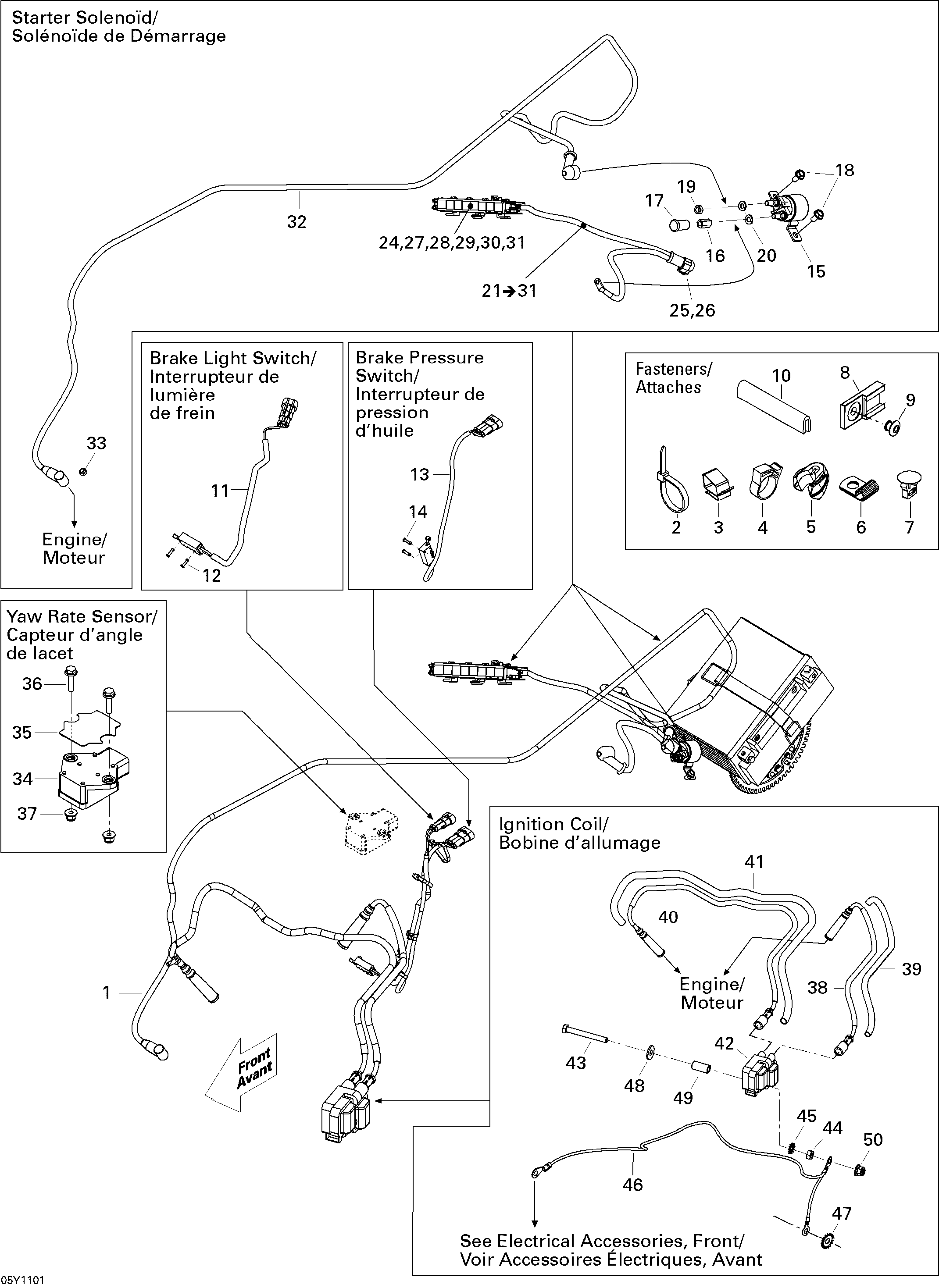

10- Electrical Accessories SM5 для BRP Spyder RS Roadster SM5 - 2011
-
№АртикулНазвание
-
1710001730 Frame Harness. SM5Frame Harness. SM5
-
2414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
2293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
3414227300 Clip. SM5Clip. SM5
-
4293650082 ClampClamp
-
5710001452 Wire BracketWire Bracket
-
6415052400 AttacheAttache
-
7293750044 Tie Rap MountTie Rap Mount
-
8270000141 ClipClip
-
9390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
10271001530 TrimTrim
-
11710001357 Brake Light Switch Ass'yBrake Light Switch Ass'y
-
12293150150 Pop RivetPop Rivet
-
13710001379 Brake Pressure Switch Ass'yBrake Pressure Switch Ass'y
-
14293150150 Pop RivetPop Rivet
-
15710001364 Starter RelayStarter Relay
-
16250100117 Hex. Coupling Nut M6Hex. Coupling Nut M6
-
17710001610 BootBoot
-
18210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
19232061600 Hex. Nut M6Hex. Nut M6
-
20234161601 Lock Washer Helical M6Lock Washer Helical M6
-
21710002079 Positive Cable (Bat/Sol/Fus). Includes 21 to 31Positive Cable (Bat/Sol/Fus). Includes 21 to 31
-
24710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
25710000495 Protector CapProtector Cap
-
26710000539 Open BarrelOpen Barrel
-
27710001046 Fuse, 25 AMPFuse, 25 AMP
-
28710001047 Fuse, 40 AMPFuse, 40 AMP
-
29710001078 Fuse, 20 AMPFuse, 20 AMP
-
30710001200 Fuse 30 amp.Fuse 30 amp.
-
31710002054 Fuse, 60 AMPFuse, 60 AMP
-
32710000794 Positive CablePositive Cable
-
33232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
34710002051 Yaw Angle SensorYaw Angle Sensor
-
35293830127 Rubber BumperRubber Bumper
-
36207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
37233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
38707000399 Cable Ass'yCable Ass'y
-
39415079900 Tubing 10 mmTubing 10 mm
-
40707000518 Cable Ass'yCable Ass'y
-
41415079900 Tubing 10 mmTubing 10 mm
-
42278001546 Ignition CoilIgnition Coil
-
43207065544 Hex. Screw M6 X 55Hex. Screw M6 X 55
-
44232061414 Hex. Nut M6Hex. Nut M6
-
45234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
46710002091 Ground CableGround Cable
-
47250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
48234062410 Flat Washer 6 mmFlat Washer 6 mm
-
49512059812 SpacerSpacer
-
50233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
