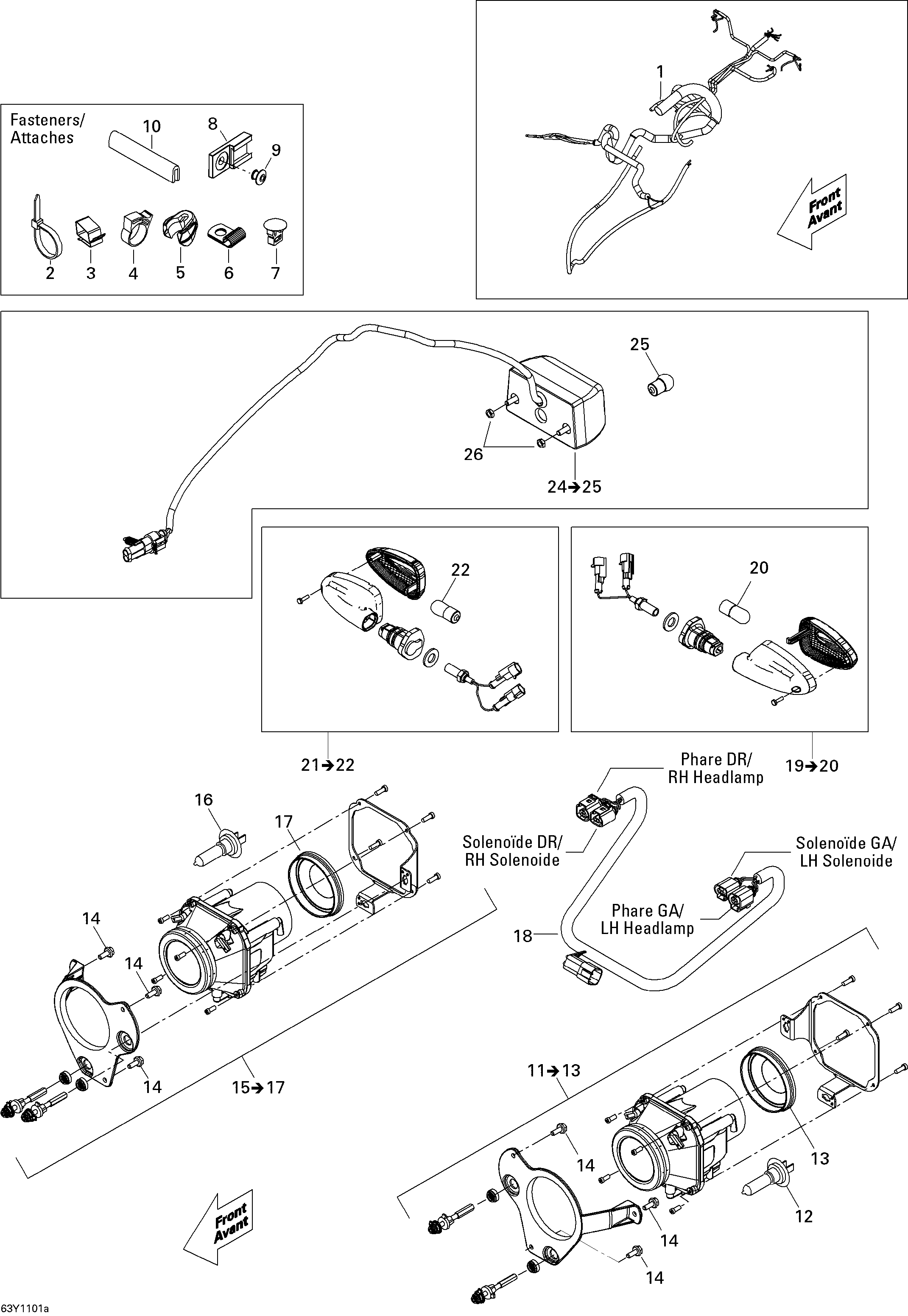

10- Lighting System SM5 для BRP Spyder RS Roadster SM5 - 2011
-
№АртикулНазвание
-
1710001730 Frame Harness. SM5Frame Harness. SM5
-
2414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
2293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
3414227300 Clip. SM5Clip. SM5
-
4293650082 ClampClamp
-
5710001452 Wire BracketWire Bracket
-
6415052400 AttacheAttache
-
7293750044 Tie Rap MountTie Rap Mount
-
8270000141 ClipClip
-
9390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
10271001530 TrimTrim
-
11710002412 LH Bi-Halogen Beam Ass'y. Includes 11 to 13LH Bi-Halogen Beam Ass'y. Includes 11 to 13
-
12219400069 Halogen BulbHalogen Bulb
-
13219400070 CapCap
-
14207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
15710002411 RH Bi-Halogen Beam Ass'y. Includes 15 to 17RH Bi-Halogen Beam Ass'y. Includes 15 to 17
-
16219400069 Halogen BulbHalogen Bulb
-
17219400070 CapCap
-
18710000792 Beam Harness Ass'yBeam Harness Ass'y
-
19710001290 LH Rear Turn Signal Ass'y. Includes 19 to 20LH Rear Turn Signal Ass'y. Includes 19 to 20
-
20219800039 Bulb 12V/10W, AmberBulb 12V/10W, Amber
-
21710001337 RH Rear Turn Signal Ass'y. Includes 21 to 22RH Rear Turn Signal Ass'y. Includes 21 to 22
-
22219800039 Bulb 12V/10W, AmberBulb 12V/10W, Amber
-
24710001994 Licence Light. Includes 24 to 25Licence Light. Includes 24 to 25
-
25415129261 BulbBulb
-
26233251494 Elastic Flanged NutElastic Flanged Nut
