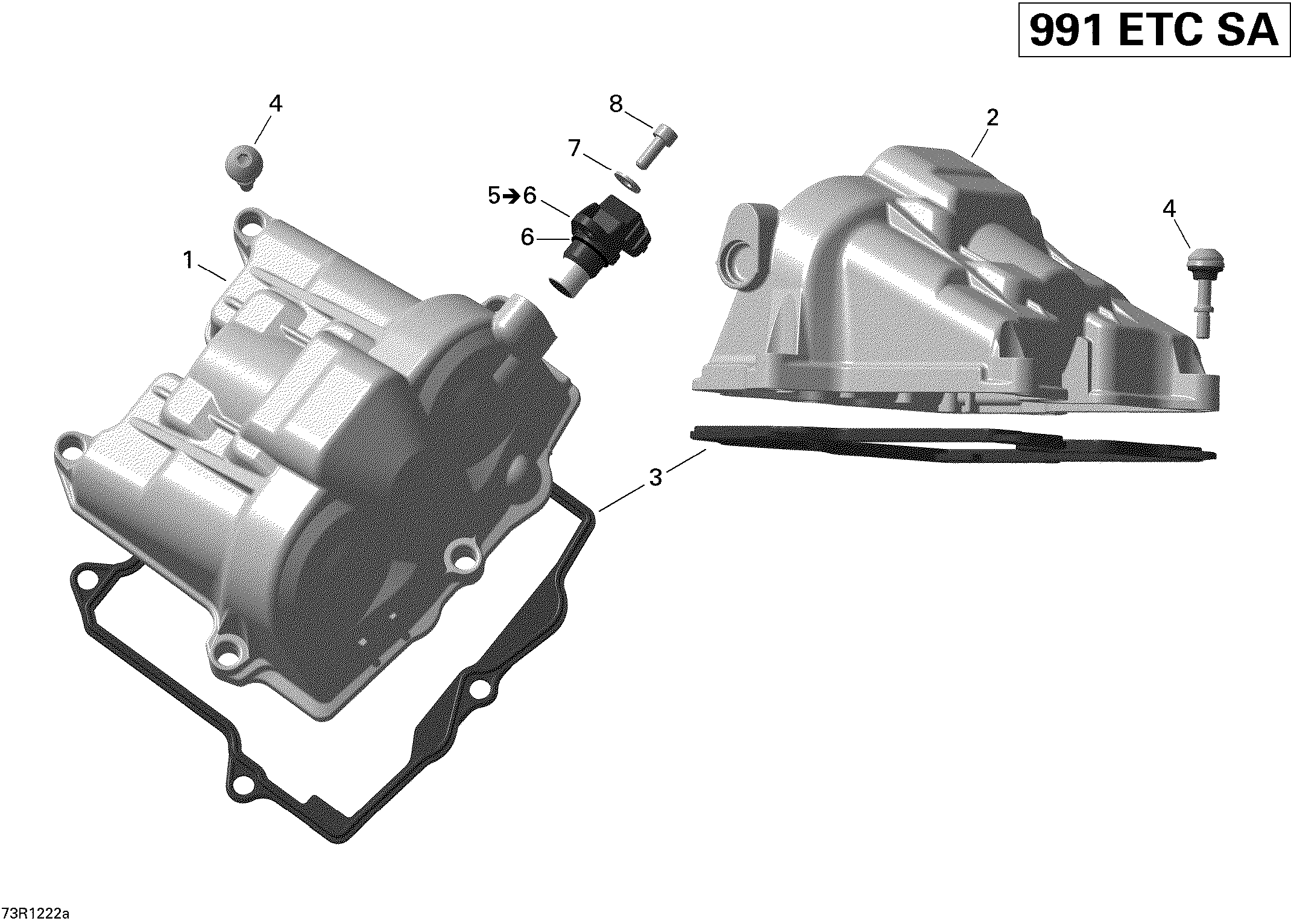

01- Valve Cover для BRP Spyder RT SE5 - 2012
-
№АртикулНазвание
-
1420611320 Valve Cover, FrontValve Cover, Front
-
2420611325 Valve Cover, RearValve Cover, Rear
-
3420650345 Valve Cover GasketValve Cover Gasket
-
4420241625 Distance ScrewDistance Screw
-
5420664045 Camshaft Position Sensor. Includes 5 to 6Camshaft Position Sensor. Includes 5 to 6
-
6420631890 O-RingO-Ring
-
7224061121 Flat WasherFlat Washer
-
8420241236 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
