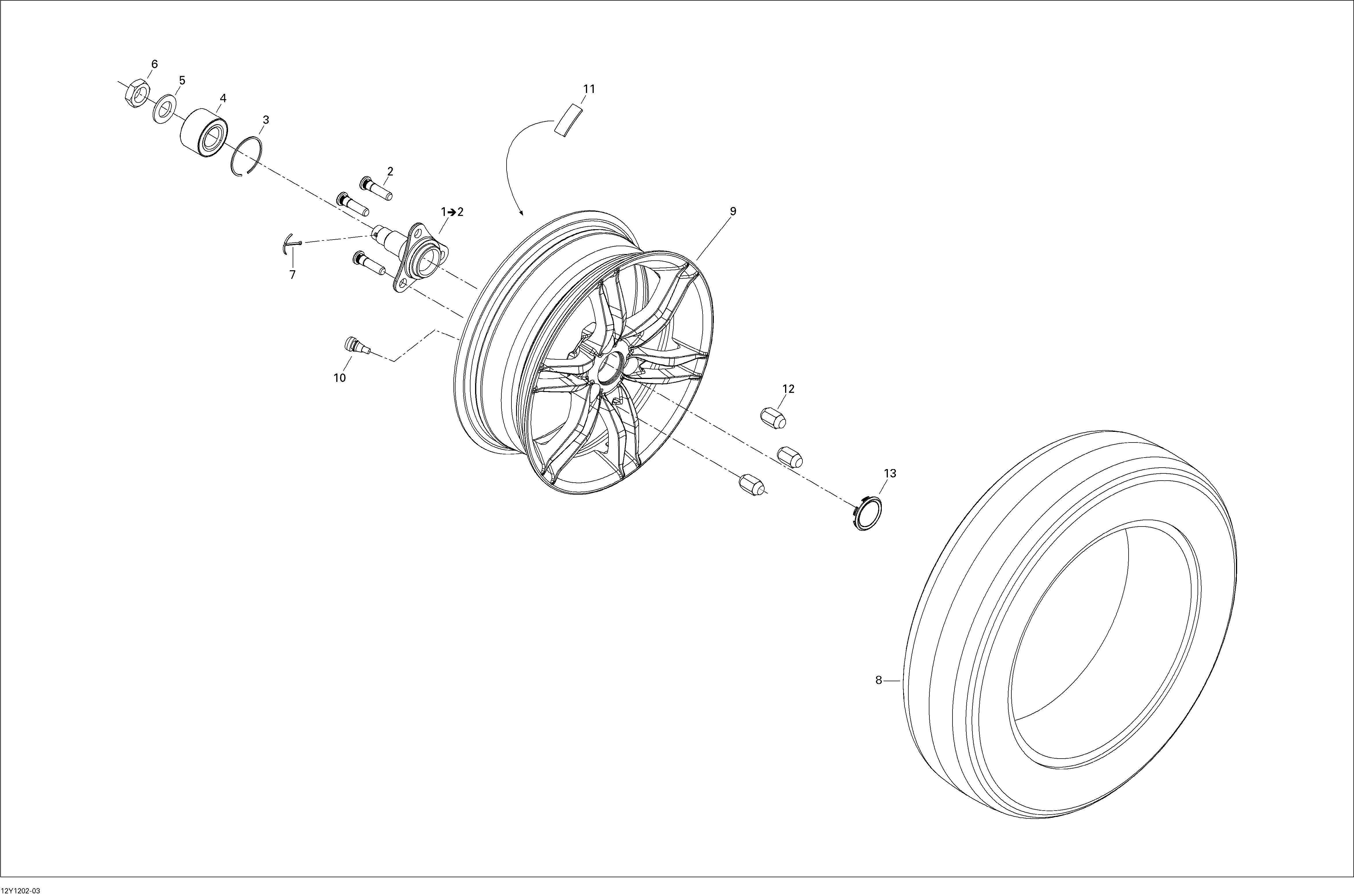

07- Drive System, Front для BRP Spyder RT SE5 - 2012
-
№АртикулНазвание
-
1706201159 Hub Ass'y. Includes 1 to 2Hub Ass'y. Includes 1 to 2
-
2250300024 Wheel Stud M12 X 1.5Wheel Stud M12 X 1.5
-
3293370019 CirclipCirclip
-
4293350040 Cone BearingCone Bearing
-
5250200094 Flat WasherFlat Washer
-
6250100103 Hex. Jam Nut M24Hex. Jam Nut M24
-
7250400047 Cotter PinCotter Pin
-
8706201411 Front TireFront Tire
-
9706200757 Front Rim, Metallic Silver. RT ModelFront Rim, Metallic Silver. RT Model
-
9706200757 Front Rim, Metallic Silver. RT Techno Europe ModelFront Rim, Metallic Silver. RT Techno Europe Model
-
9706200757 Front Rim, Metallic Silver. RT A&C ModelFront Rim, Metallic Silver. RT A&C Model
-
9706201499 Front Rim, Smoked Chrome. RT-S ModelFront Rim, Smoked Chrome. RT-S Model
-
10705400193 Rim Valve With CapRim Valve With Cap
-
11705501430 Adhesive WeightAdhesive Weight
-
12250100057 Wheel Nut M12 X 1.5Wheel Nut M12 X 1.5
-
13705400388 Wheel CapWheel Cap
