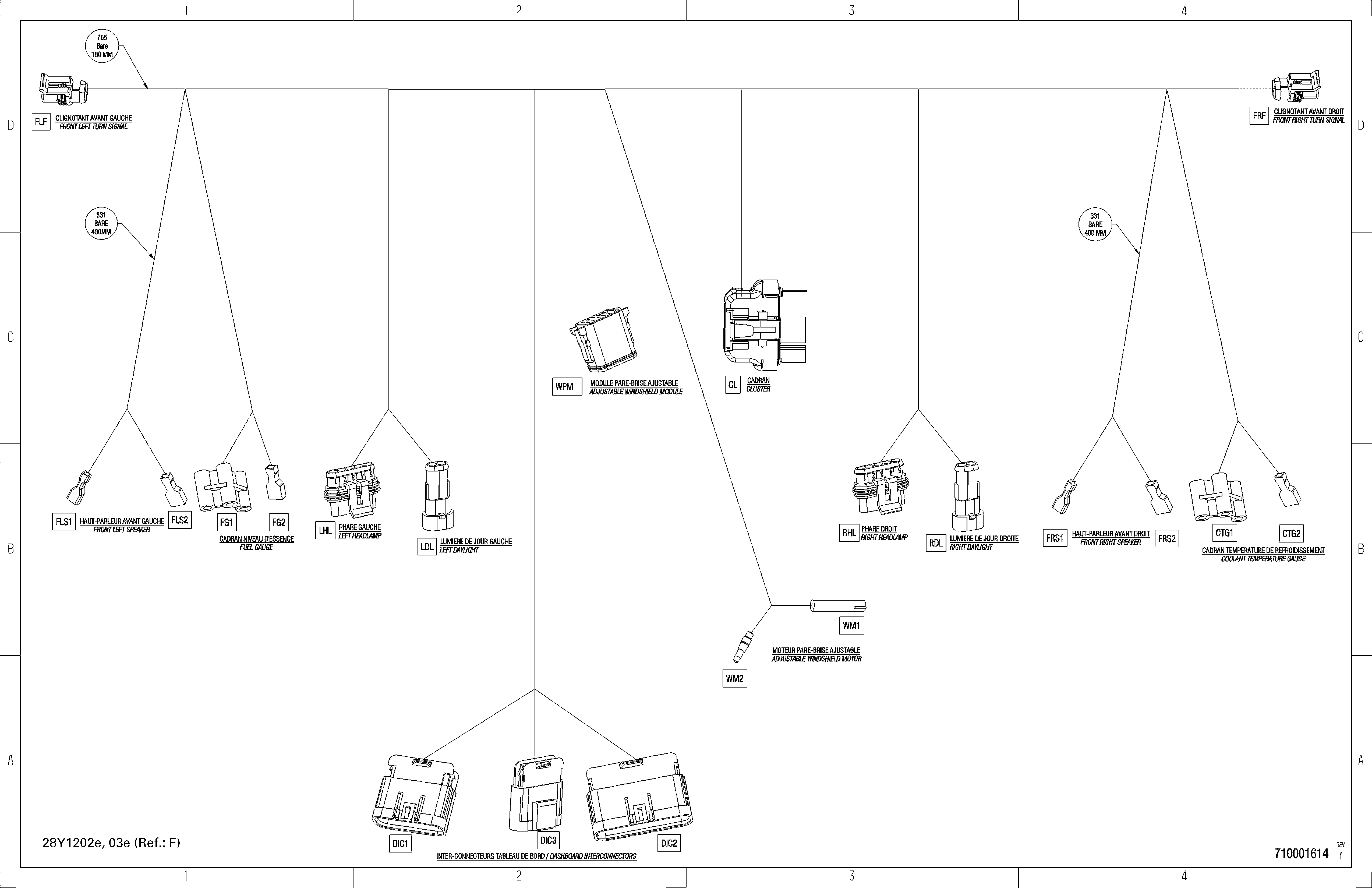

10- Electrical Harness , Console для BRP Spyder RT SE5 - 2012
-
№АртикулНазвание
-
1710001614 Console Harness. Includes 1 to WPMConsole Harness. Includes 1 to WPM
-
331710000244 Protector Tube, 4 mmProtector Tube, 4 mm
-
530710000488 Coding Tape, RedCoding Tape, Red
-
CL515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
CL515175802 Retainer BlockRetainer Block
-
CL515175812 PlugPlug
-
CL710000399 Female HousingFemale Housing
-
CL515175803 Wire SealWire Seal
-
CL710001131 Female TerminalFemale Terminal
-
CL515175806 Female TerminalFemale Terminal
-
CTG1710002072 Housing ConnectorHousing Connector
-
CTG2409010700 Female TerminalFemale Terminal
-
DIC1710001227 HousingHousing
-
DIC1710001225 CapCap
-
DIC1710001332 Seal WireSeal Wire
-
DIC1710001863 TerminalTerminal
-
DIC1710001224 TerminalTerminal
-
DIC2710001856 HousingHousing
-
DIC2710002075 PlugPlug
-
DIC2278002186 Wire SealWire Seal
-
DIC2710001857 TerminalTerminal
-
DIC2710001859 TerminalTerminal
-
DIC3710001231 HousingHousing
-
DIC3710001332 Seal WireSeal Wire
-
DIC3710001863 TerminalTerminal
-
DIC3710001224 TerminalTerminal
-
FG1710002072 Housing ConnectorHousing Connector
-
FG2409010700 Female TerminalFemale Terminal
-
FLF409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
FLF515176621 Wire SealWire Seal
-
FLF710001340 Female TerminalFemale Terminal
-
FLS1710000082 Female TerminalFemale Terminal
-
FLS2409010700 Female TerminalFemale Terminal
-
FRF409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
FRF515176621 Wire SealWire Seal
-
FRF710001340 Female TerminalFemale Terminal
-
FRS1710000082 Female TerminalFemale Terminal
-
FRS2409010700 Female TerminalFemale Terminal
-
LDL409209400 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
LDL515176621 Wire SealWire Seal
-
LDL515176164 Male TerminalMale Terminal
-
LHL710000780 ConnectorConnector
-
LHL278001013 Wire SealWire Seal
-
LHL278001014 Female TerminalFemale Terminal
-
RDL409209400 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
RDL515176621 Wire SealWire Seal
-
RDL515176164 Male TerminalMale Terminal
-
RHL710000780 ConnectorConnector
-
RHL409013700 PlugPlug
-
RHL278001013 Wire SealWire Seal
-
RHL278001014 Female TerminalFemale Terminal
-
WM1278001007 Insulated SheathInsulated Sheath
-
WM1710000421 Female TerminalFemale Terminal
-
WM2278001008 Insulated SheathInsulated Sheath
-
WM2278002261 Female TerminalFemale Terminal
-
WPM278002377 Female Terminal Housing, 12 CircuitsFemale Terminal Housing, 12 Circuits
-
WPM515175679 Female Lock, 12 CircuitsFemale Lock, 12 Circuits
-
WPM278001665 Female TerminalFemale Terminal
