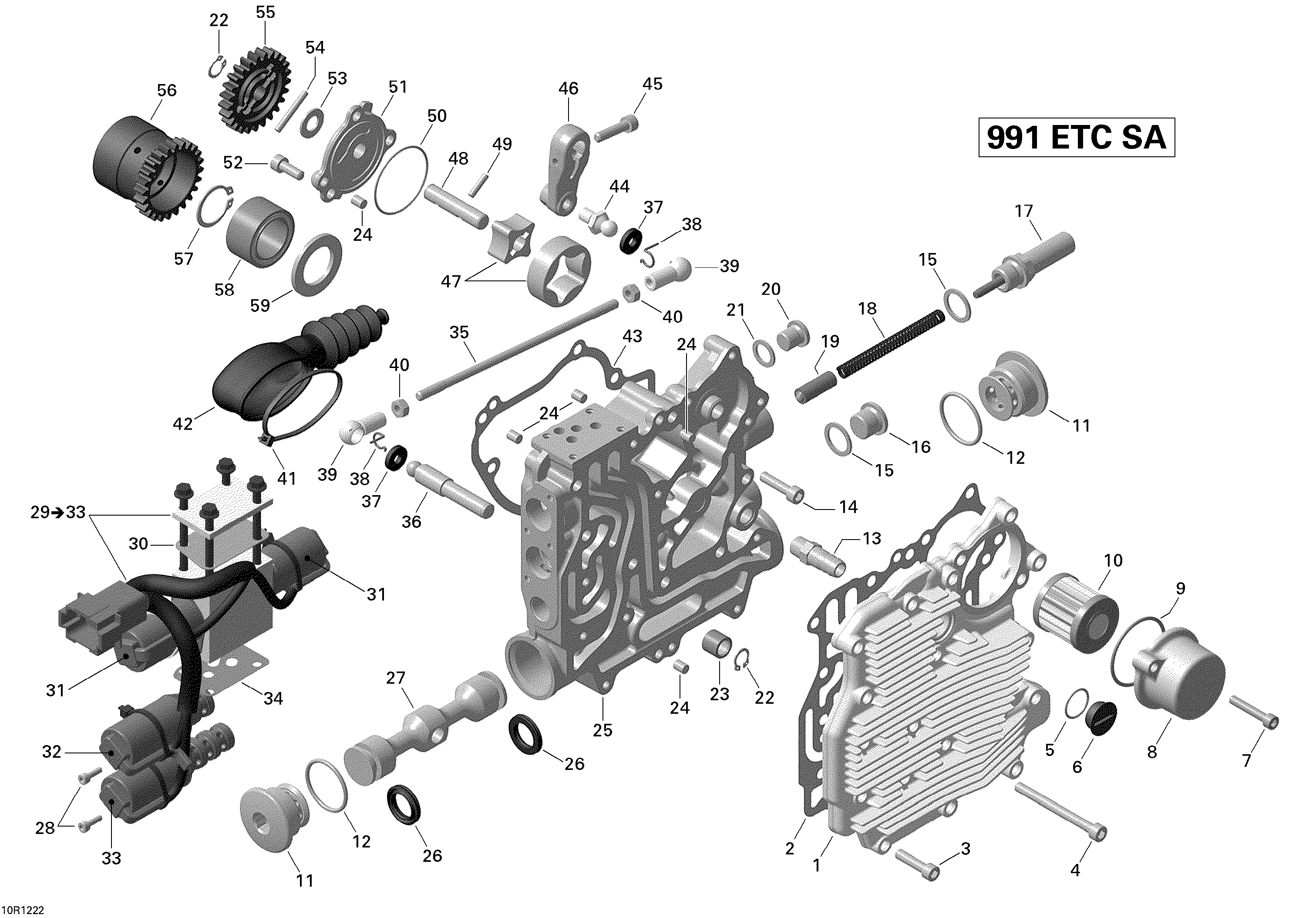

05- Hydraulic Shifting для BRP Spyder RT SE5 - 2012
-
№АртикулНазвание
-
1420611500 Hydraulic CoverHydraulic Cover
-
2420430661 GasketGasket
-
3205062544 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
4420241261 Allen Screw, M6 X 65Allen Screw, M6 X 65
-
5420250890 O-RingO-Ring
-
6420241801 Drain PlugDrain Plug
-
7420241811 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
8420211506 Filter CoverFilter Cover
-
9420430920 O-RingO-Ring
-
10420256454 Oil FilterOil Filter
-
11420441300 Plug ScrewPlug Screw
-
12420430590 O-ringO-ring
-
13420840446 Nipple 12/8Nipple 12/8
-
14205062544 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
15420430623 Gasket RingGasket Ring
-
16420240234 Plug Screw M16 X 1.5Plug Screw M16 X 1.5
-
17420441335 Plug ScrewPlug Screw
-
18420238845 SpringSpring
-
19420256510 Pressure Regulating PistonPressure Regulating Piston
-
20420841923 Plug Screw M12Plug Screw M12
-
21420250015 Washer, CopperWasher, Copper
-
22420245330 Snap RingSnap Ring
-
23420232030 Needle BushingNeedle Bushing
-
24420232210 Center PinCenter Pin
-
25420611492 Hydraulic HousingHydraulic Housing
-
26420431340 Piston LiningPiston Lining
-
27420656260 Hydraulic PistonHydraulic Piston
-
28420440291 Socket Head Screw M4 X 12Socket Head Screw M4 X 12
-
29420656635 Solenoid Valve Ass'y. Includes 29 to 33Solenoid Valve Ass'y. Includes 29 to 33
-
30420650635 GasketGasket
-
31420256548 Solenoid ValveSolenoid Valve
-
32420256562 Solenoid ValveSolenoid Valve
-
33420256553 Solenoid ValveSolenoid Valve
-
34420650630 Solenoid Valve GasketSolenoid Valve Gasket
-
35420257890 Gear Shift RodGear Shift Rod
-
36420229050 Guide PinGuide Pin
-
37420260940 Gasket RingGasket Ring
-
38420245270 CirclipCirclip
-
39420651490 Ball JointBall Joint
-
40232061414 Hex. Nut M6Hex. Nut M6
-
41420651396 Tie RapTie Rap
-
42420460670 BellowBellow
-
43420431270 GasketGasket
-
44420651505 Ball EndBall End
-
45205062544 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
46420257881 Gear Shift LeverGear Shift Lever
-
47420256671 Oil Pump Rotor, PressureOil Pump Rotor, Pressure
-
48420620710 Oil Pump ShaftOil Pump Shaft
-
49420232730 Needle PinNeedle Pin
-
50420831160 O-RingO-Ring
-
51420612140 Oil Pump CoverOil Pump Cover
-
52420241236 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
53420627345 Thrust WasherThrust Washer
-
54420232430 Needle PinNeedle Pin
-
55420434610 Oil Pump Gear, 25 TeethOil Pump Gear, 25 Teeth
-
56420434601 Oil Pump Gear, 24 TeethOil Pump Gear, 24 Teeth
-
57420945870 CirclipCirclip
-
58420632640 Needle BearingNeedle Bearing
-
59420227391 Thrust WasherThrust Washer
