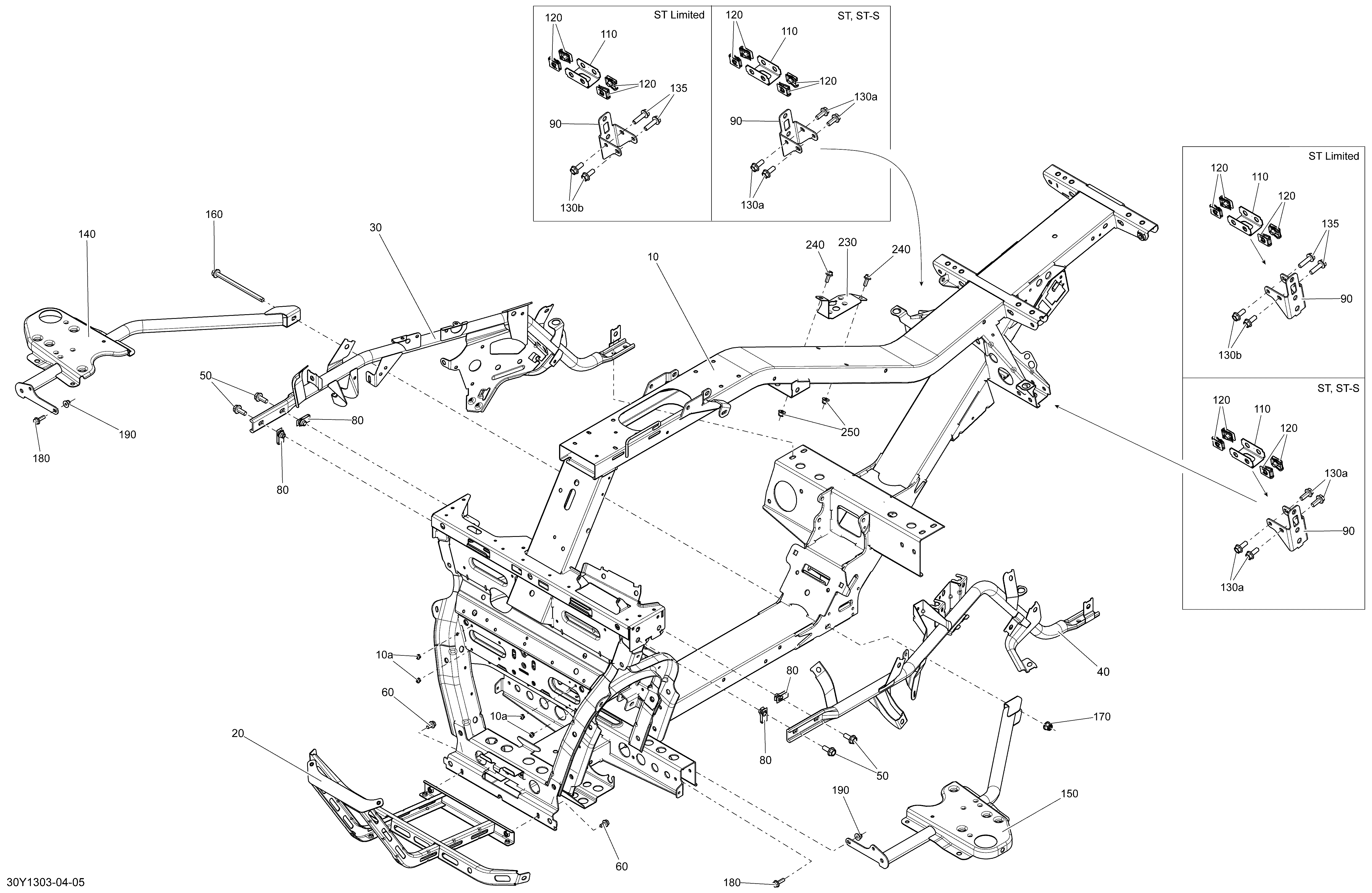

09- Frame для BRP Spyder ST Limited SE5 - 2013
-
№АртикулНазвание
-
10705203234 Frame Ass`y. Includes 10 to 10aFrame Ass`y. Includes 10 to 10a
-
10a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
20705201326 Front FrameFront Frame
-
30705202590 RH Upper Side SupportRH Upper Side Support
-
40705202681 LH Upper Side SupportLH Upper Side Support
-
50207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
60207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
80250100118 Panel Nut M8 X 1.25Panel Nut M8 X 1.25
-
90705202963 Rear SupportRear Support
-
110705202484 U-BracketU-Bracket
-
120250100069 Panet Nut M8 X 1.25Panet Nut M8 X 1.25
-
130b207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
135207583044 Hex. Flanged Screw M8 X 30, Scotch GripHex. Flanged Screw M8 X 30, Scotch Grip
-
140705202680 RH Lower Side SupportRH Lower Side Support
-
150705202626 LH Lower Side SupportLH Lower Side Support
-
160230683034 Hex. Flanged Screw M8 X 130Hex. Flanged Screw M8 X 130
-
170233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
180207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
190250100130 Elastic Flange Nut M6Elastic Flange Nut M6
-
230705202891 Latch SupportLatch Support
-
240207661646 Hex. Flange Screw M6 X 16Hex. Flange Screw M6 X 16
-
250233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
