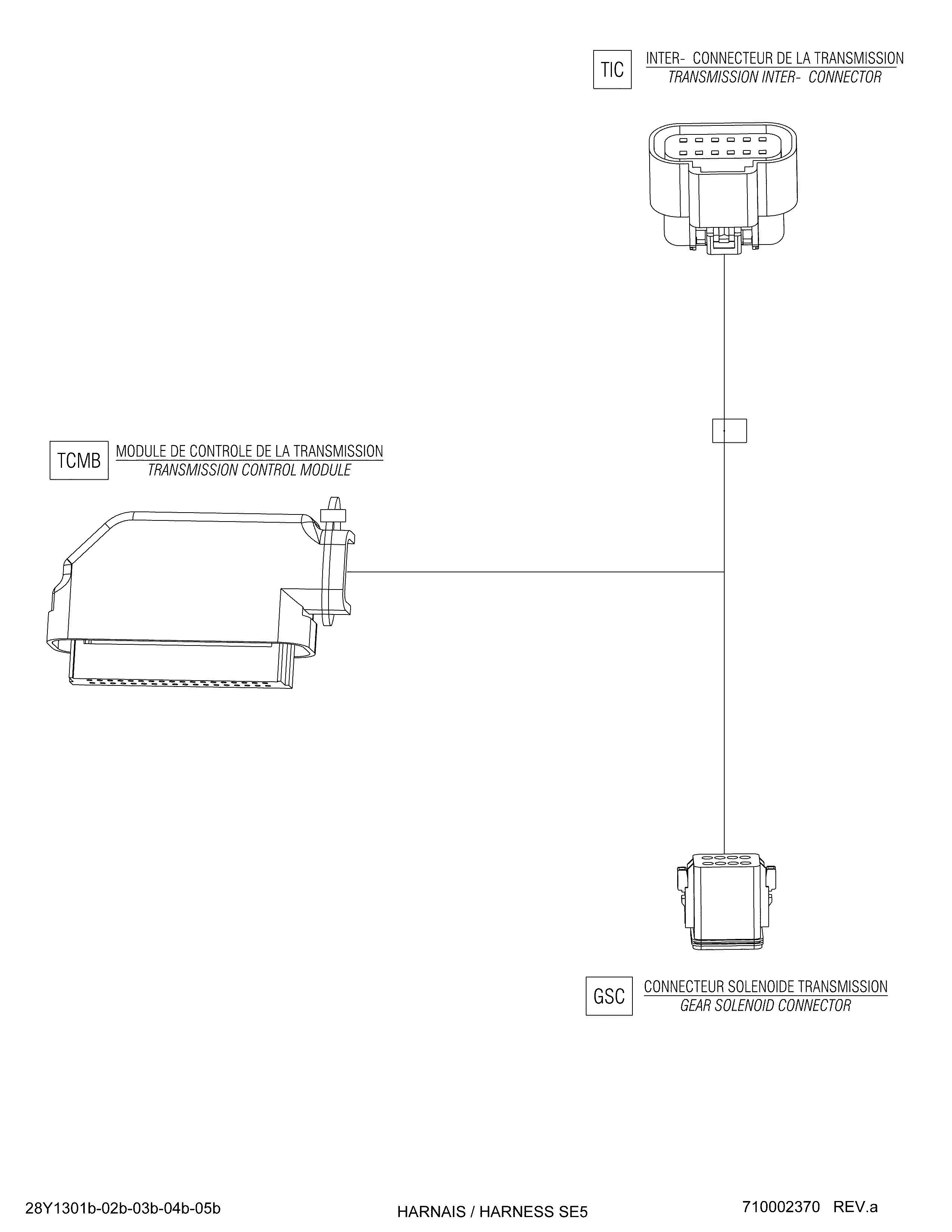

10- Electrical Harness SE5 для BRP Spyder ST Limited SE5 - 2013
-
№АртикулНазвание
-
1710002370 Frame SE5. Includes 1 to TICFrame SE5. Includes 1 to TIC
-
GSC710001936 ConnectorConnector
-
GSC278001744 Secondary Lock, 8 CircuitsSecondary Lock, 8 Circuits
-
GSC278001665 Female TerminalFemale Terminal
-
TCMB515176223 Female Terminal Housing, 36 CircuitsFemale Terminal Housing, 36 Circuits
-
TCMB515176224 Terminal SupportTerminal Support
-
TCMB515175812 PlugPlug
-
TCMB515176221 Female HousingFemale Housing
-
TCMB515176222 Wire SealWire Seal
-
TCMB515175806 Female TerminalFemale Terminal
-
TCMB710001131 Female TerminalFemale Terminal
-
TCMB710002714 Tie-RapTie-Rap
-
TIC515177152 Housing ConnectorHousing Connector
-
TIC710001225 CapCap
-
TIC710001332 Seal WireSeal Wire
-
TIC710001233 SealSeal
-
TIC710001229 TerminalTerminal
-
TIC710001228 TerminalTerminal
