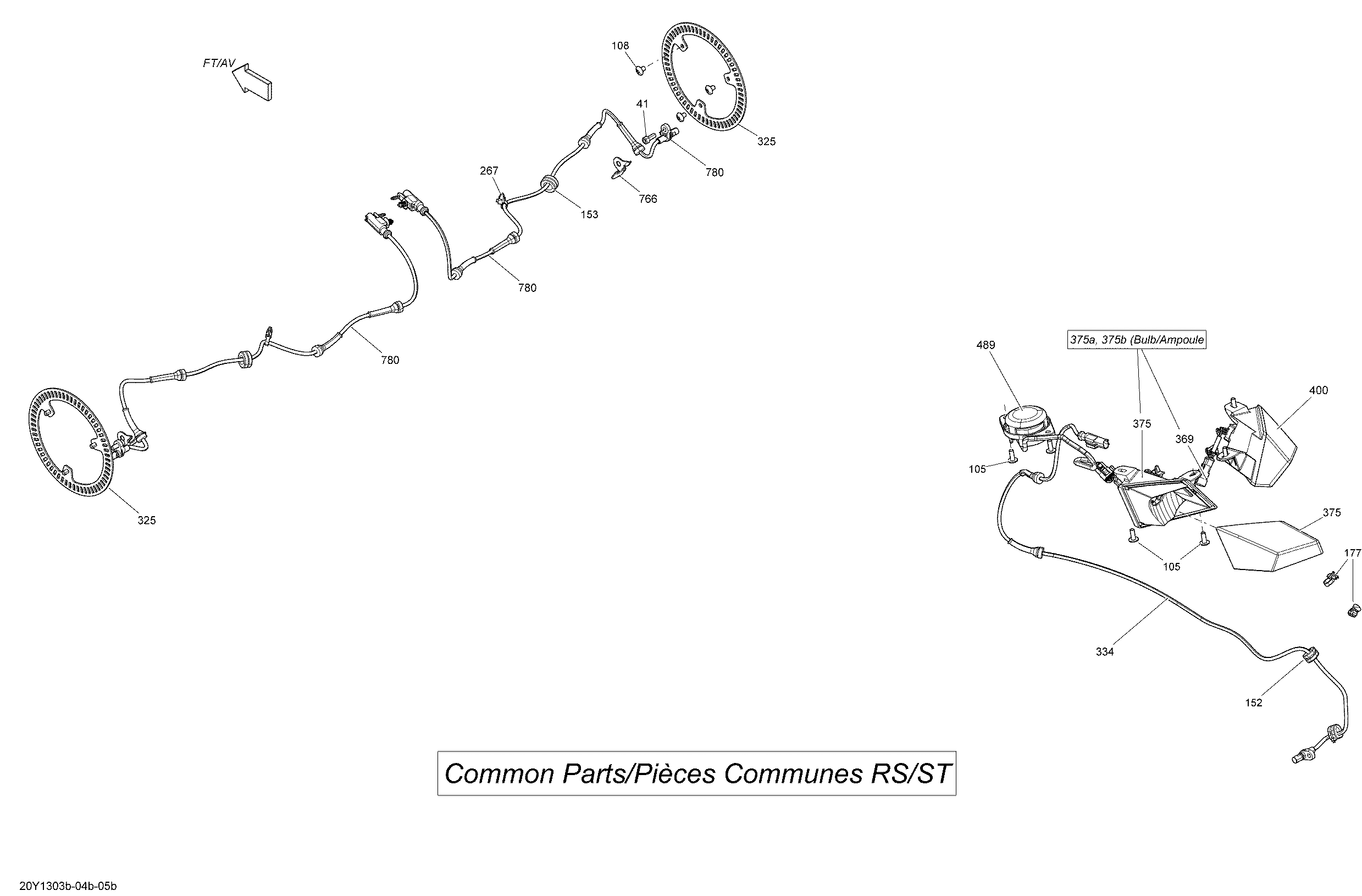

10- Electrical System Common Parts для BRP Spyder ST Limited SE5 - 2013
-
№АртикулНазвание
-
41205561660 Socket Head Screw M6 X 16, Scotch GripSocket Head Screw M6 X 16, Scotch Grip
-
105250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
108250000210 Torx Truss Screw M6 X 10Torx Truss Screw M6 X 10
-
152293720084 GrommetGrommet
-
153293720095 GrommetGrommet
-
177293750044 Tie Rap MountTie Rap Mount
-
267515175220 Tie RapTie Rap
-
325705601191 Front Tone WheelFront Tone Wheel
-
334706200560 Speed SensorSpeed Sensor
-
369710000568 HousingHousing
-
375710000706 LH Tail Light Ass'yLH Tail Light Ass'y
-
400710000869 RH Tail Light Ass'yRH Tail Light Ass'y
-
489710001346 Passenger Detection SwitchPassenger Detection Switch
-
766710003090 Speed Sensor HolderSpeed Sensor Holder
-
780710003091 Speed SensorSpeed Sensor
-
375a520000758 BulbBulb
-
375b219800122 Flasher BulbFlasher Bulb
