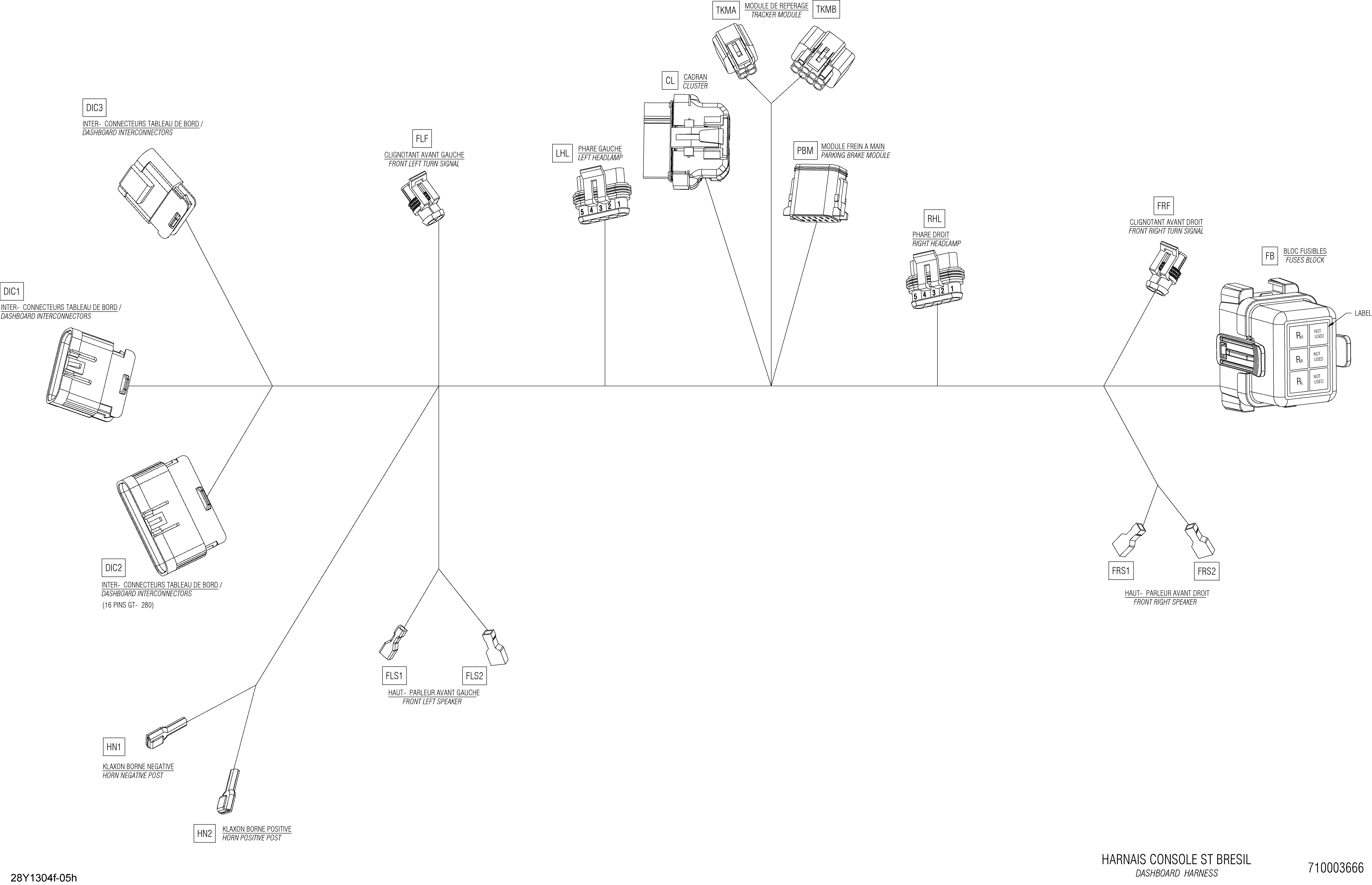

10- Electrical Harness Console Brazil для BRP Spyder ST Limited SE5 - 2013
-
№АртикулНазвание
-
CL515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
CL515175802 Retainer BlockRetainer Block
-
CL515175812 PlugPlug
-
CL710000399 Female HousingFemale Housing
-
CL515175803 Wire SealWire Seal
-
CL515175806 Female TerminalFemale Terminal
-
CL710001131 Female TerminalFemale Terminal
-
DIC1710001227 HousingHousing
-
DIC1710001225 CapCap
-
DIC1710001332 Seal WireSeal Wire
-
DIC1710001233 SealSeal
-
DIC1710001223 TerminalTerminal
-
DIC1710001224 TerminalTerminal
-
DIC2710001856 HousingHousing
-
DIC2710002075 PlugPlug
-
DIC2710001817 Protector CapProtector Cap
-
DIC2278002186 Wire SealWire Seal
-
DIC2710001860 SealSeal
-
DIC2710001857 TerminalTerminal
-
DIC2710001859 TerminalTerminal
-
DIC3710001231 HousingHousing
-
DIC3710001332 Seal WireSeal Wire
-
DIC3710001233 SealSeal
-
DIC3710001223 TerminalTerminal
-
DIC3710001224 TerminalTerminal
-
FB278002825 Fuse CoverFuse Cover
-
FB516005569 Fuse DecalFuse Decal
-
FB278002824 Case Ass'yCase Ass'y
-
FB278000216 Wire SealWire Seal
-
FB710001778 RelayRelay
-
FB710001778 RelayRelay
-
FB710001778 RelayRelay
-
FB278001065 Wire SealWire Seal
-
FB710000918 Female TerminalFemale Terminal
-
FB278002578 TerminalTerminal
-
FLF409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
FLF515176621 Wire SealWire Seal
-
FLF710001340 Female TerminalFemale Terminal
-
FLS1710000082 Female TerminalFemale Terminal
-
FLS2409010700 Female TerminalFemale Terminal
-
FRF409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
FRF515176621 Wire SealWire Seal
-
FRF710001340 Female TerminalFemale Terminal
-
FRS1710000082 Female TerminalFemale Terminal
-
FRS2409010700 Female TerminalFemale Terminal
-
HN1710000115 Rubber Envelope TerminalRubber Envelope Terminal
-
HN2710000115 Rubber Envelope TerminalRubber Envelope Terminal
-
LHL710000780 ConnectorConnector
-
LHL278001013 Wire SealWire Seal
-
LHL278001014 Female TerminalFemale Terminal
-
PBM278002377 Female Terminal Housing, 12 CircuitsFemale Terminal Housing, 12 Circuits
-
PBM515175679 Female Lock, 12 CircuitsFemale Lock, 12 Circuits
-
PBM293000052 Sealing CapSealing Cap
-
PBM278001665 Female TerminalFemale Terminal
-
RHL710000780 ConnectorConnector
-
RHL409013700 PlugPlug
-
RHL278001013 Wire SealWire Seal
-
RHL278001014 Female TerminalFemale Terminal
-
TKMA710000188 Housing Tab, 4 CircuitsHousing Tab, 4 Circuits
-
TKMA710000187 Lock, 4 CircuitsLock, 4 Circuits
-
TKMA278003051 Female TerminalFemale Terminal
-
TKMB710003748 Housing TabHousing Tab
-
TKMB710003747 Lock 4 CircuitsLock 4 Circuits
-
TKMB278003051 Female TerminalFemale Terminal
