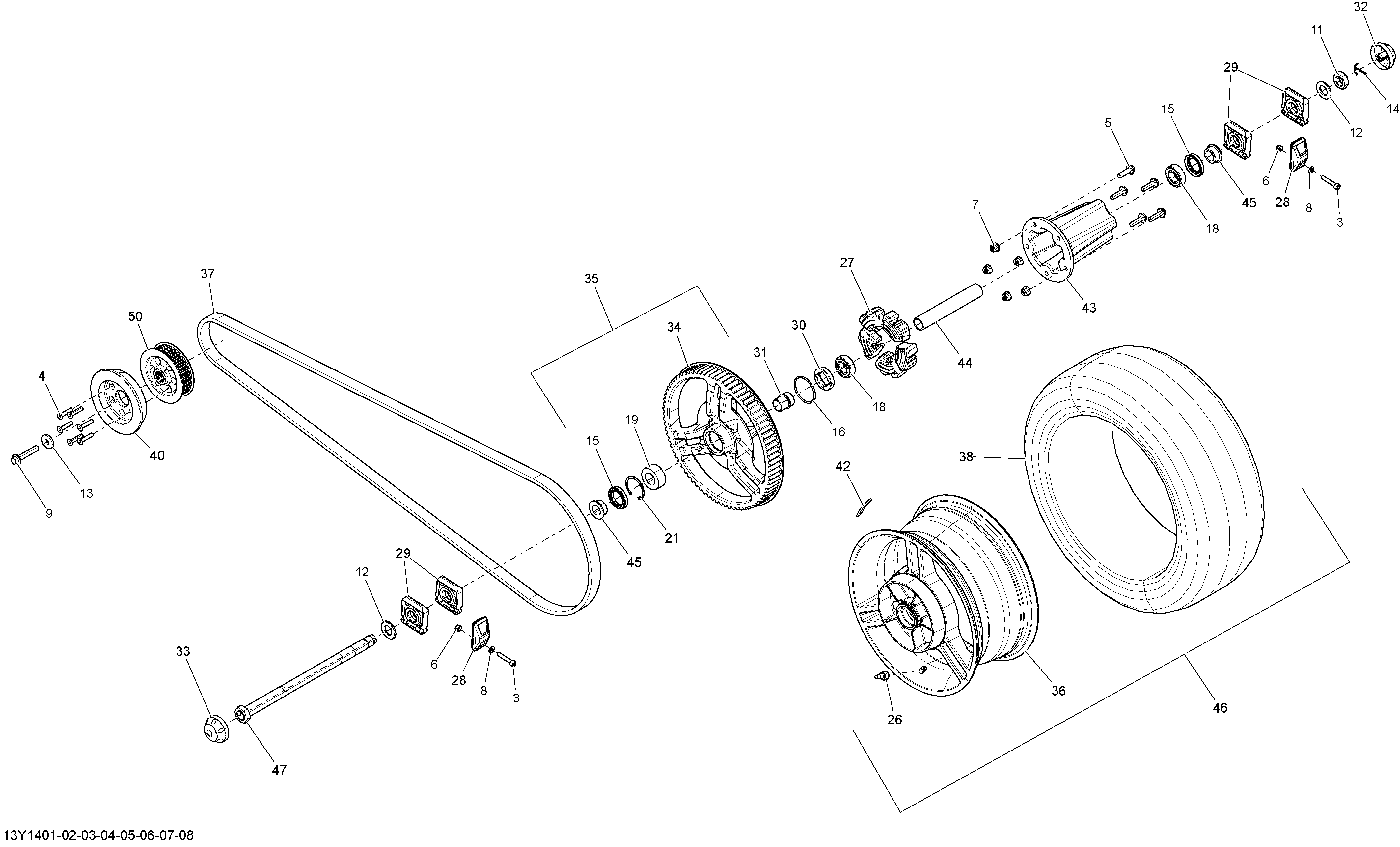

08- Drive System, Rear _13Y1403 для BRP Spyder RT Limited SE6 - 2014
-
№АртикулНазвание
-
3250000514 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
5207503587 Flanged Hex. Screw M10 X 35, Scotch GripFlanged Hex. Screw M10 X 35, Scotch Grip
-
6250100141 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
7233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
8234081410 Flat Washer 8 mmFlat Washer 8 mm
-
9250000250 Flanged Hex. Screw M12 X 65, Scotch GripFlanged Hex. Screw M12 X 65, Scotch Grip
-
11250100103 Hex. Jam Nut M24Hex. Jam Nut M24
-
12250200094 Flat WasherFlat Washer
-
13250200052 WasherWasher
-
14250400047 Cotter PinCotter Pin
-
15293200094 Seal. Model-RT LTDSeal. Model-RT LTD
-
15293200094 SealSeal
-
16293300124 O-RingO-Ring
-
18293350067 Ball BearingBall Bearing
-
19293350065 Double Row Bearing. Model-RT LTDDouble Row Bearing. Model-RT LTD
-
21293370053 Circlip. Model-RT LTDCirclip. Model-RT LTD
-
26705400193 Rim Valve With Cap. Model-RT LTDRim Valve With Cap. Model-RT LTD
-
27705500736 DamperDamper
-
28705500758 Adjustment SupportAdjustment Support
-
29705500770 Sliding BlockSliding Block
-
30705500852 NutNut
-
31705500853 SpacerSpacer
-
32705501022 Cap RHCap RH
-
33705501081 Cap LHCap LH
-
35705502016 Carbon Black Pulley Ass'y, 79 Teeth. Model-RT LTDCarbon Black Pulley Ass'y, 79 Teeth. Model-RT LTD
-
36705501722 Carbon Black Rear Wheel Rim. Model-RT LTDCarbon Black Rear Wheel Rim. Model-RT LTD
-
37705501304 Drive Belt. Model-RTDrive Belt. Model-RT
-
38705501604 Rear Tire. Model-RT LTDRear Tire. Model-RT LTD
-
42705501430 Adhesive Weight. Model-RT LTDAdhesive Weight. Model-RT LTD
-
43705501598 Carbon Black Rear Wheel Hub. Model-RT LTDCarbon Black Rear Wheel Hub. Model-RT LTD
-
44705502093 SpacerSpacer
-
45705501602 SpacerSpacer
-
47705501691 Rear Wheel AxleRear Wheel Axle
-
50705501986 Black 28 Teeth Sprocket. Model-RTBlack 28 Teeth Sprocket. Model-RT
