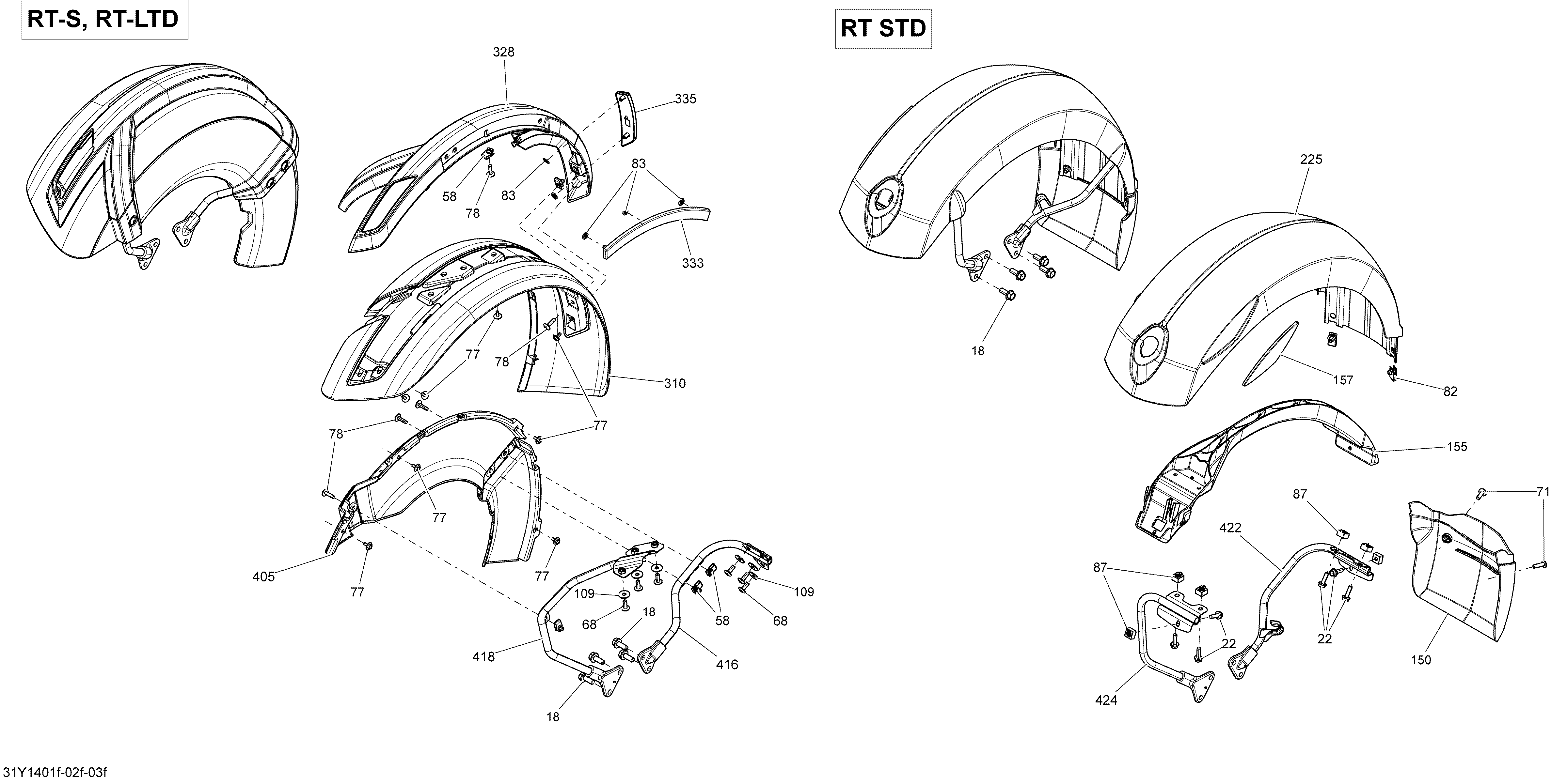

09- Body And Accessories Front Fender_31Y1403f для BRP Spyder RT Limited SE6 - 2014
-
№АртикулНазвание
-
18207582034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
58250000079 Panel Nut M5 X 0.8. Model-RT LTDPanel Nut M5 X 0.8. Model-RT LTD
-
68250000348 Torx Truss Screw M6 X 16. Model-RT LTDTorx Truss Screw M6 X 16. Model-RT LTD
-
77250000585 Plastite Screw K-40 M4 X 10. Model-RT LTDPlastite Screw K-40 M4 X 10. Model-RT LTD
-
78250000586 Torx Truss M5 X 20. Model-RT LTDTorx Truss M5 X 20. Model-RT LTD
-
82250100113 Panel Nut, M6 X 1.0. Model-RT LTDPanel Nut, M6 X 1.0. Model-RT LTD
-
83250100163 Pressure Nut. Model-RT LTDPressure Nut. Model-RT LTD
-
87269500725 Nut Housing Ass'yNut Housing Ass'y
-
109250200082 Flat Washer. Model-RT LTDFlat Washer. Model-RT LTD
-
310705008023 Black Current Met LH Front Fender. Model-Black Current MetBlack Current Met LH Front Fender. Model-Black Current Met
-
310705008022 Black Current Met RH Front Fender. Model-Black Current MetBlack Current Met RH Front Fender. Model-Black Current Met
-
310705008033 Cognac LH Front Fender. Model-CognacCognac LH Front Fender. Model-Cognac
-
310705008032 Cognac RH Front Fender. Model-CognacCognac RH Front Fender. Model-Cognac
-
310705008031 Platinum Silver LH Front Fender. Model-Platinum Silver SatPlatinum Silver LH Front Fender. Model-Platinum Silver Sat
-
310705008030 Platinum Silver RH Front Fender. Model-Platinum Silver SatPlatinum Silver RH Front Fender. Model-Platinum Silver Sat
-
310705006509 White LH Front Fender. Model-Vegas White PearlWhite LH Front Fender. Model-Vegas White Pearl
-
310705006510 White RH Front Fender. Model-Vegas White PearlWhite RH Front Fender. Model-Vegas White Pearl
-
328705008006 Black Current LH Fr Fender Moulding. Model-Black Current MetBlack Current LH Fr Fender Moulding. Model-Black Current Met
-
328705008007 Black Current RH Fr Fender Moulding. Model-Black Current MetBlack Current RH Fr Fender Moulding. Model-Black Current Met
-
328705008012 Cognac LH Front Fender Moulding. Model-CognacCognac LH Front Fender Moulding. Model-Cognac
-
328705008013 Cognac RH Front Fender Moulding. Model-CognacCognac RH Front Fender Moulding. Model-Cognac
-
328705008014 Plat. Silver LH Fr Fender Moulding. Model-Platinum Silver SatPlat. Silver LH Fr Fender Moulding. Model-Platinum Silver Sat
-
328705008015 Plat Silver RH Fr Fender Moulding. Model-Platinum Silver SatPlat Silver RH Fr Fender Moulding. Model-Platinum Silver Sat
-
328705006520 White LH Front Fender Moulding. Model-Vegas White PearlWhite LH Front Fender Moulding. Model-Vegas White Pearl
-
328705006521 White RH Front Fender Moulding. Model-Vegas White PearlWhite RH Front Fender Moulding. Model-Vegas White Pearl
-
333705008661 Yellow LH Reflector. Model-RT LTDYellow LH Reflector. Model-RT LTD
-
333705008662 Yellow RH Reflector. Model-RT LTDYellow RH Reflector. Model-RT LTD
-
335219800275 LH Rear Reflector Ass'y. Model-LTD Europe, Australie, Brezil, JaponLH Rear Reflector Ass'y. Model-LTD Europe, Australie, Brezil, Japon
-
335705005667 LH Rear Reflector. Model-RT LTD North AmericaLH Rear Reflector. Model-RT LTD North America
-
405705007616 LH Inner Fender. Model-RT LTDLH Inner Fender. Model-RT LTD
-
405705007617 RH Inner Fender. Model-RT LTDRH Inner Fender. Model-RT LTD
-
416705008116 LH Painted Fender Rear Support. Model-RT LTDLH Painted Fender Rear Support. Model-RT LTD
-
416705008117 RH Painted Fender Rear Support. Model-RT LTDRH Painted Fender Rear Support. Model-RT LTD
-
418705005264 RH Painted Fender Front Support. Model-RT LTDRH Painted Fender Front Support. Model-RT LTD
-
418705005265 LH Painted Fender Front Support. Model-RT LTDLH Painted Fender Front Support. Model-RT LTD
