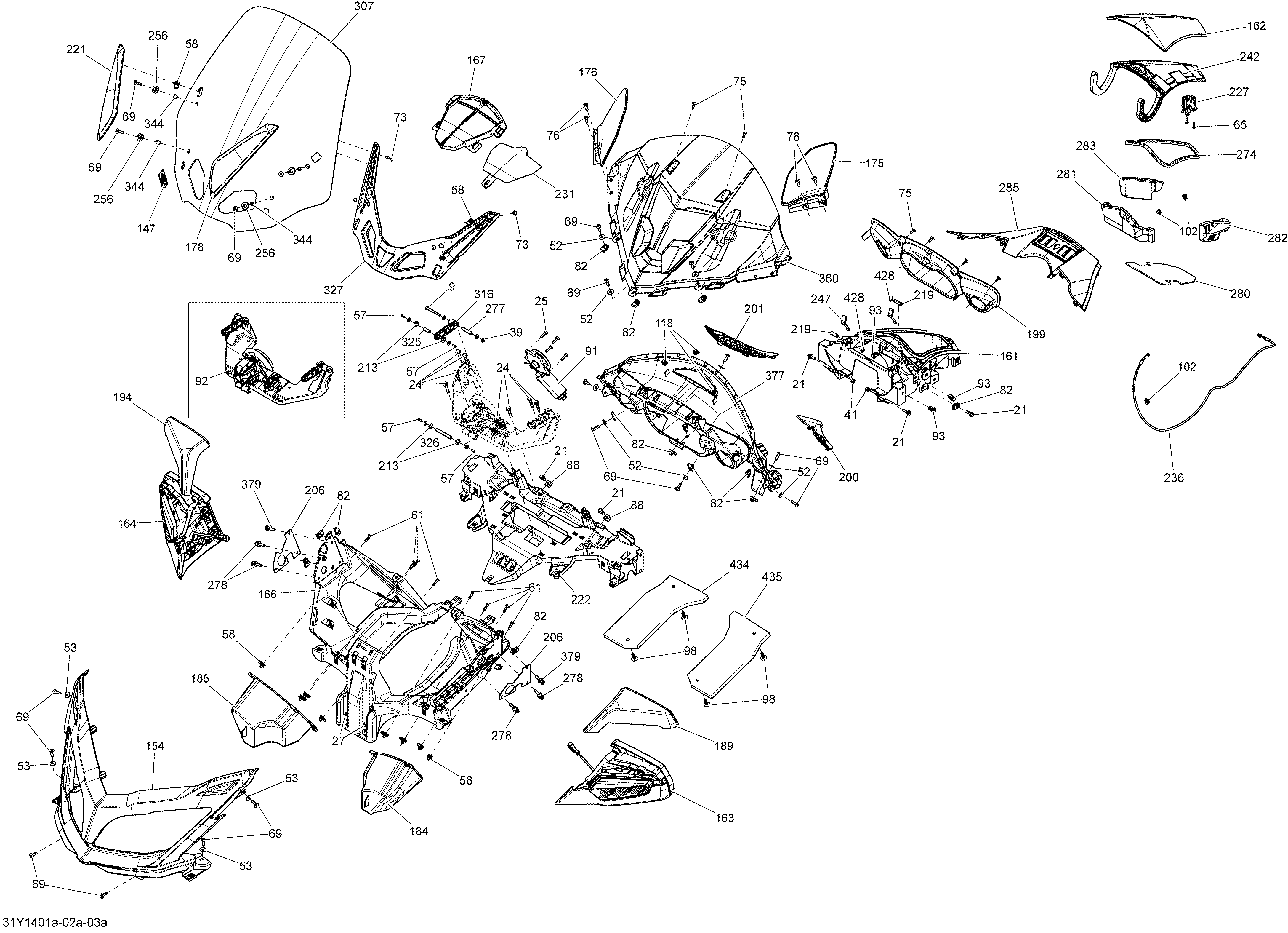

09- Body And Accessories Windshield_31Y1403a для BRP Spyder RT Limited SE6 - 2014
-
№АртикулНазвание
-
9207065060 Hex. Screw M6 X 50Hex. Screw M6 X 50
-
21207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
24207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
27210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
39232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
41232862412 Square Nut M6Square Nut M6
-
52234062410 Flat Washer 6 mmFlat Washer 6 mm
-
53234062670 Flat Washer, StainlessFlat Washer, Stainless
-
57219800355 Retainer Pin KitRetainer Pin Kit
-
58250000079 Panel Nut M5 X 0.8. Model-RT S, RT LTDPanel Nut M5 X 0.8. Model-RT S, RT LTD
-
61250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
65250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
69250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
73250000455 Torx Screw M5 X 25Torx Screw M5 X 25
-
75250000487 Torx Screw, Nylon Patch, M5 X 14Torx Screw, Nylon Patch, M5 X 14
-
76250000488 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
82250100113 Panel Nut, M6 X 1.0. Model-RT S, RT LTDPanel Nut, M6 X 1.0. Model-RT S, RT LTD
-
88269501166 Nut Housing Ass'yNut Housing Ass'y
-
91278002579 Parking Barke/Windshield MotorParking Barke/Windshield Motor
-
92705007069 Windshield Motor Support Ass'yWindshield Motor Support Ass'y
-
93293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
98293730006 Black DartBlack Dart
-
102414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
118517302785 ClipClip
-
147704903339 Caution Decal, WindshieldCaution Decal, Windshield
-
154705007343 Black Current Front Console. Model-Black Current MetBlack Current Front Console. Model-Black Current Met
-
154705007574 Cognac Front Console. Model-CognacCognac Front Console. Model-Cognac
-
154705007575 Platinum Silver Front Console. Model-Platinum Silver SatPlatinum Silver Front Console. Model-Platinum Silver Sat
-
154705007276 White Front Console. Model-WhiteWhite Front Console. Model-White
-
161705002726 Glove BoxGlove Box
-
162705007591 Cognac Glove Box Cover. Model-CognacCognac Glove Box Cover. Model-Cognac
-
162705007592 Platinum Silver Glove Box Cover. Model-Platinum Silver SatPlatinum Silver Glove Box Cover. Model-Platinum Silver Sat
-
162705006973 White Glove Box Cover. Model-WhiteWhite Glove Box Cover. Model-White
-
162705006359 Black Current Glove Box Cover. Model-Black Current MetBlack Current Glove Box Cover. Model-Black Current Met
-
163705004687 LH Mirror Ass'yLH Mirror Ass'y
-
164705004688 RH Mirror Ass'yRH Mirror Ass'y
-
166705002743 Console SupportConsole Support
-
167705002746 Guide Chart SupportGuide Chart Support
-
175705002841 LH Upper Air DeflectorLH Upper Air Deflector
-
176705002842 RH Upper Air DeflectorRH Upper Air Deflector
-
178219400191 Chrome Windshield Cap Kit. Model-RT LTDChrome Windshield Cap Kit. Model-RT LTD
-
184705003092 LH Speaker HousingLH Speaker Housing
-
185705003093 RH Speaker HousingRH Speaker Housing
-
189705007399 Chrome LH Upper Mirror Shell. Model-RT LTDChrome LH Upper Mirror Shell. Model-RT LTD
-
194705007400 Chrome RH Upper Mirror Shell. Model-RT LTDChrome RH Upper Mirror Shell. Model-RT LTD
-
199705003163 Dashboard BezelDashboard Bezel
-
200705003199 LH Speaker GrillLH Speaker Grill
-
201705003200 RH Speaker GrillRH Speaker Grill
-
206705003779 Console Support PlateConsole Support Plate
-
213705003267 SleeveSleeve
-
219219800355 Retainer Pin KitRetainer Pin Kit
-
221219400191 Chrome Windshield Cap Kit. Model-RT LTDChrome Windshield Cap Kit. Model-RT LTD
-
222705003384 Console Cross-SupportConsole Cross-Support
-
227705007380 Push LatchPush Latch
-
231705003472 Guide ChartGuide Chart
-
236705007381 Glove Box CableGlove Box Cable
-
242705006111 Glove Box Door Ass'yGlove Box Door Ass'y
-
247705003748 Glove Box SpringGlove Box Spring
-
256705003756 Windshield GrommetWindshield Grommet
-
274219800143 Neoprene Seal, MeterNeoprene Seal, Meter
-
277NLA Inner Sleeve. Order 219800321Inner Sleeve. Order 219800321
-
278705004322 Spherical Head StudSpherical Head Stud
-
280705004424 Heat ShieldHeat Shield
-
281219800172 Outer Front Insulation FoamOuter Front Insulation Foam
-
282219800172 Outer Front Insulation FoamOuter Front Insulation Foam
-
283219800172 Outer Front Insulation FoamOuter Front Insulation Foam
-
285705004461 Center PanelCenter Panel
-
307705004740 WindshieldWindshield
-
316219800197 Rear ArmRear Arm
-
325219800355 Retainer Pin KitRetainer Pin Kit
-
326219800355 Retainer Pin KitRetainer Pin Kit
-
327705005405 Windshield SupportWindshield Support
-
344705005756 SleeveSleeve
-
360705006186 Upper ConsoleUpper Console
-
377705006655 Dashboard Ass'yDashboard Ass'y
-
379705004323 Spherical Head StudSpherical Head Stud
-
428705600272 CirclipCirclip
-
434707800341 RH Acoustic FoamRH Acoustic Foam
-
435707800349 LH Acoustic FoamLH Acoustic Foam
