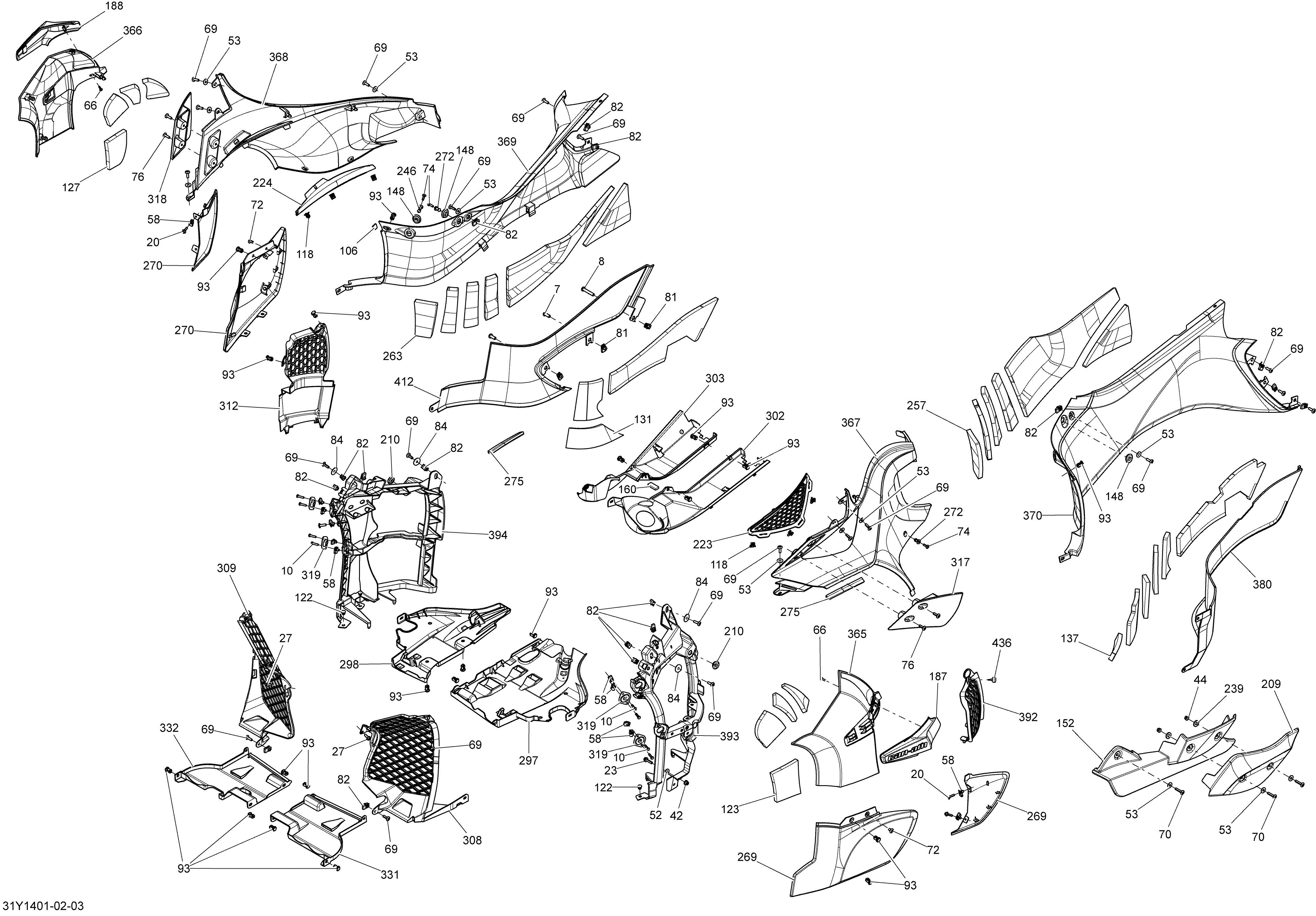

09- Body And Accessories _31Y1403 для BRP Spyder RT Limited SE6 - 2014
-
№АртикулНазвание
-
7205482060 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
8205484560 Socket Screw M8 X 45Socket Screw M8 X 45
-
10207152060 Hex. Screw M5 X 20Hex. Screw M5 X 20
-
20207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
23207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
27210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
42233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
44233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
52234062410 Flat Washer 6 mmFlat Washer 6 mm
-
53234062670 Flat WasherFlat Washer
-
58250000079 Panel Nut M5 X 0.8. Model-RT LTDPanel Nut M5 X 0.8. Model-RT LTD
-
66250000294 Torx Screw K40 X 16Torx Screw K40 X 16
-
69250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
70250000371 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
72250000454 Torx Screw M6 X 12Torx Screw M6 X 12
-
74250000459 Torx Screw, K50X16Torx Screw, K50X16
-
76250000488 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
81250100111 Panel Nut M8Panel Nut M8
-
82250100113 Panel Nut, M6 X 1.0. Model-RT LTDPanel Nut, M6 X 1.0. Model-RT LTD
-
84250200029 Washer M6Washer M6
-
93293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
106293830143 Rubber PadRubber Pad
-
118517302785 ClipClip
-
122518321954 Fastener PanelFastener Panel
-
123518324751 LH Side Panel FoamLH Side Panel Foam
-
127518324752 RH Side Panel FoamRH Side Panel Foam
-
131518324756 RH Lower Panel FoamRH Lower Panel Foam
-
137518327490 LH Lower Panel FoamLH Lower Panel Foam
-
148705000321 Oval WasherOval Washer
-
152705002092 Lower Belt GuardLower Belt Guard
-
160293200003 Neoprene Seal, MeterNeoprene Seal, Meter
-
187219400195 Chrome Side Panel Cap Kit. Model-RT LTDChrome Side Panel Cap Kit. Model-RT LTD
-
188219400195 Chrome Side Panel Cap Kit. Model-RT LTDChrome Side Panel Cap Kit. Model-RT LTD
-
209705003250 Belt Guard CapBelt Guard Cap
-
210705003264 GrommetGrommet
-
223705003385 LH Upper Side Panel GrillLH Upper Side Panel Grill
-
224705003386 RH Upper Side Panel GrillRH Upper Side Panel Grill
-
239705003696 Adhesive SpacerAdhesive Spacer
-
246705003746 Angled KnobAngled Knob
-
257705003757 LH Upper Lateral Panel FoamLH Upper Lateral Panel Foam
-
263705003758 RH Upper Lateral Panel FoamRH Upper Lateral Panel Foam
-
269705003759 LH Water Deflector Ass'yLH Water Deflector Ass'y
-
270705003760 RH Water Deflector Ass'yRH Water Deflector Ass'y
-
272705003842 KnobKnob
-
275293200020 Seal, MeterSeal, Meter
-
297705004610 LH Deflector PannelLH Deflector Pannel
-
298705004611 RH Deflector PannelRH Deflector Pannel
-
302705004631 LH Tank Cover Ass'yLH Tank Cover Ass'y
-
303705004632 RH Tank Cover Ass'yRH Tank Cover Ass'y
-
308705004789 LH Radiatior MouldingLH Radiatior Moulding
-
309705004790 RH Radiatior MouldingRH Radiatior Moulding
-
312705004803 RH Side GrillRH Side Grill
-
317705004924 LH Lower Air DeflectorLH Lower Air Deflector
-
318705004925 RH Lower Air DeflectorRH Lower Air Deflector
-
319705005055 Grommet Ass'yGrommet Ass'y
-
331705005438 LH Skid PlateLH Skid Plate
-
332705005439 RH Skid PlateRH Skid Plate
-
365705006312 Black Current LH Lateral Side Panel. Model-Black Current MetBlack Current LH Lateral Side Panel. Model-Black Current Met
-
365705007595 Cognac LH Lateral Side Panel. Model-CognacCognac LH Lateral Side Panel. Model-Cognac
-
365705007597 Platinum Silver LH Lateral Side Panel. Model-Platinum Silver SatPlatinum Silver LH Lateral Side Panel. Model-Platinum Silver Sat
-
365705006158 White LH Lateral Side Panel. Model-WhiteWhite LH Lateral Side Panel. Model-White
-
365705006177 White RH Upper Lateral Panel. Model-WhiteWhite RH Upper Lateral Panel. Model-White
-
366705006310 Black Current RH Lateral Side Panel. Model-Black Current MetBlack Current RH Lateral Side Panel. Model-Black Current Met
-
366705007596 Cognac RH Lateral Side Panel. Model-CognacCognac RH Lateral Side Panel. Model-Cognac
-
366705007598 Platinum Silver RH Lateral Side Panel. Model-Platinum Silver SatPlatinum Silver RH Lateral Side Panel. Model-Platinum Silver Sat
-
366705006157 White RH Lateral Side Panel. Model-WhiteWhite RH Lateral Side Panel. Model-White
-
367705006328 Black Current LH Upper Panel. Model-Black Current MetBlack Current LH Upper Panel. Model-Black Current Met
-
367705007601 Cognac LH Upper Panel. Model-CognacCognac LH Upper Panel. Model-Cognac
-
367705007603 Platinum Silver LH Upper Panel. Model-Platinum Silver SatPlatinum Silver LH Upper Panel. Model-Platinum Silver Sat
-
367705006168 White LH Upper Panel. Model-WhiteWhite LH Upper Panel. Model-White
-
368705006327 Black Current RH Upper Panel. Model-Black Current MetBlack Current RH Upper Panel. Model-Black Current Met
-
368705007602 Cognac RH Upper Panel. Model-CognacCognac RH Upper Panel. Model-Cognac
-
368705007604 Platinum Silver RH Upper Panel. Model-Platinum Silver SatPlatinum Silver RH Upper Panel. Model-Platinum Silver Sat
-
368705006167 White RH Upper Panel. Model-WhiteWhite RH Upper Panel. Model-White
-
369705006338 Black Current RH Upper Lateral Panel. Model-Black Current MetBlack Current RH Upper Lateral Panel. Model-Black Current Met
-
369705007608 Cognac RH Upper Lateral Panel. Model-CognacCognac RH Upper Lateral Panel. Model-Cognac
-
369705007610 Plat Silver RH Upper Lateral Panel. Model-Platinum Silver SatPlat Silver RH Upper Lateral Panel. Model-Platinum Silver Sat
-
370705006339 Black Current LH Upper Lateral Panel. Model-Black Current MetBlack Current LH Upper Lateral Panel. Model-Black Current Met
-
370705007607 Cognac LH Upper Lateral Panel. Model-CognacCognac LH Upper Lateral Panel. Model-Cognac
-
370705007609 Platinum Silver LH Upper Lateral Panel. Model-Platinum Silver SatPlatinum Silver LH Upper Lateral Panel. Model-Platinum Silver Sat
-
370705006178 White LH Upper Lateral Panel. Model-WhiteWhite LH Upper Lateral Panel. Model-White
-
380705006820 LH Lower PannelLH Lower Pannel
-
392705007307 LH Side GrillLH Side Grill
-
393705007308 LH Side Panel Support Ass'yLH Side Panel Support Ass'y
-
394705007309 RH Side Panel Support Ass'yRH Side Panel Support Ass'y
-
412705007736 RH Lower PannelRH Lower Pannel
-
436708000759 Rubber StopperRubber Stopper
