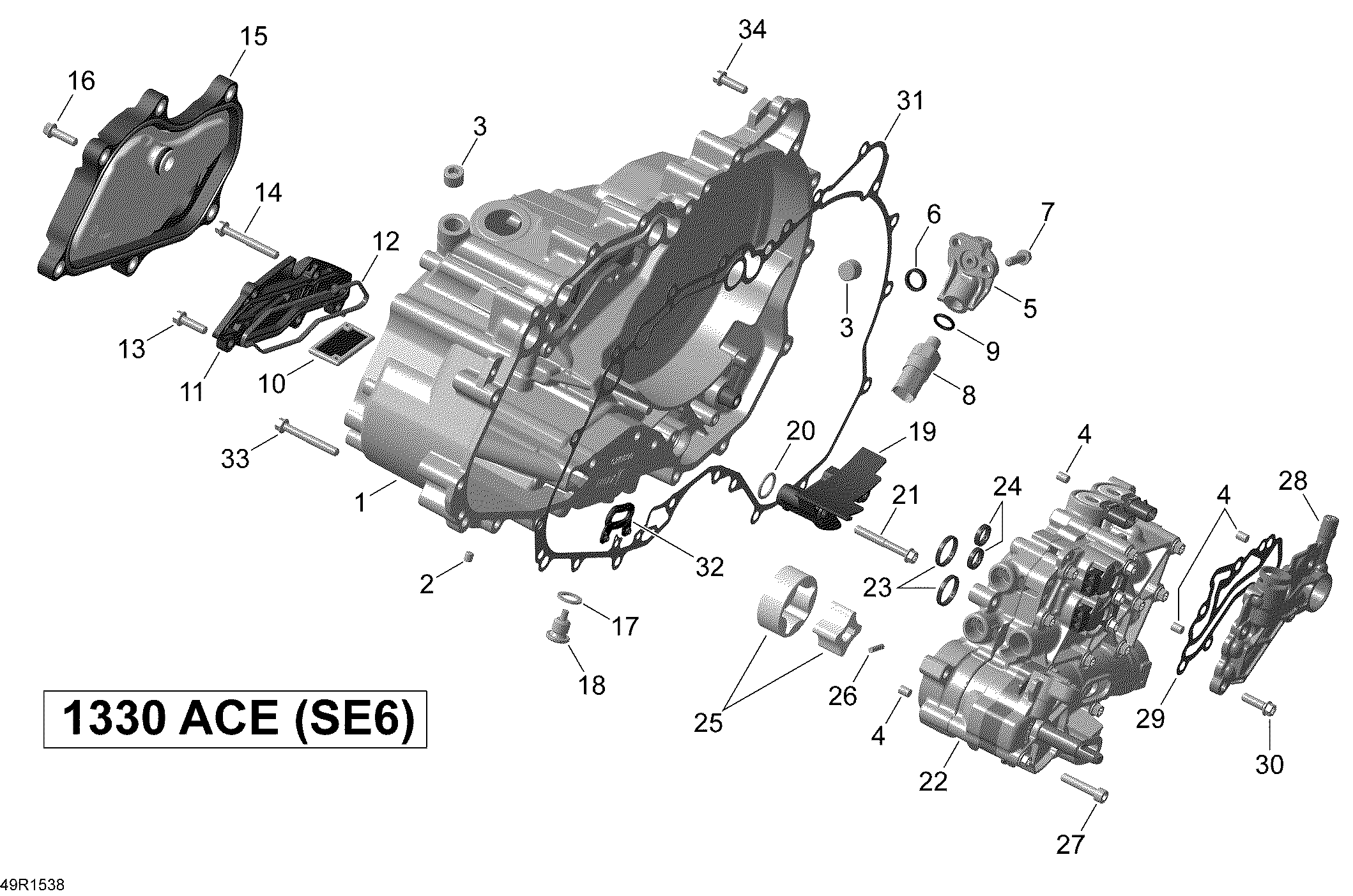

01- Clutch Cover _49R1538 для BRP Spyder F3-S SE6 - 2015
-
№АртикулНазвание
-
1420210899 Clutch Cover Ass'y. Includes 1 to 4Clutch Cover Ass'y. Includes 1 to 4
-
2420841770 Plug Screw M6Plug Screw M6
-
3420641308 Plug Screw M14 X 1.5Plug Screw M14 X 1.5
-
4420232210 Center PinCenter Pin
-
5420212174 Pressure Sensor HousingPressure Sensor Housing
-
6420450310 GasketGasket
-
7420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
8420264160 Oil Pressure Switch Ass'y. Includes 8 to 9Oil Pressure Switch Ass'y. Includes 8 to 9
-
9420450350 O-RingO-Ring
-
10420656990 Oil SieveOil Sieve
-
11420210871 Oil Duct CoverOil Duct Cover
-
12420250630 GasketGasket
-
13420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
14420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
15420211156 Oil Filter CoverOil Filter Cover
-
16420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
17420250640 Copper WasherCopper Washer
-
18420241782 Magnetic Drain Plug M12 X 1.5Magnetic Drain Plug M12 X 1.5
-
19420224085 Oil Guiding PlateOil Guiding Plate
-
20420430220 O-RingO-Ring
-
21420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
22420210982 Hydraulic Housing Ass'y. Includes 22 to 24Hydraulic Housing Ass'y. Includes 22 to 24
-
23420450240 GasketGasket
-
24420450310 GasketGasket
-
25420456290 Oil Pump RotorOil Pump Rotor
-
26420232731 Needle PinNeedle Pin
-
27205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
28420211122 Valve HousingValve Housing
-
29420450290 GasketGasket
-
30420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
31420450032 Gasket. Include 32Gasket. Include 32
-
32420450032 Gasket. Include 31Gasket. Include 31
-
33420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
34420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
