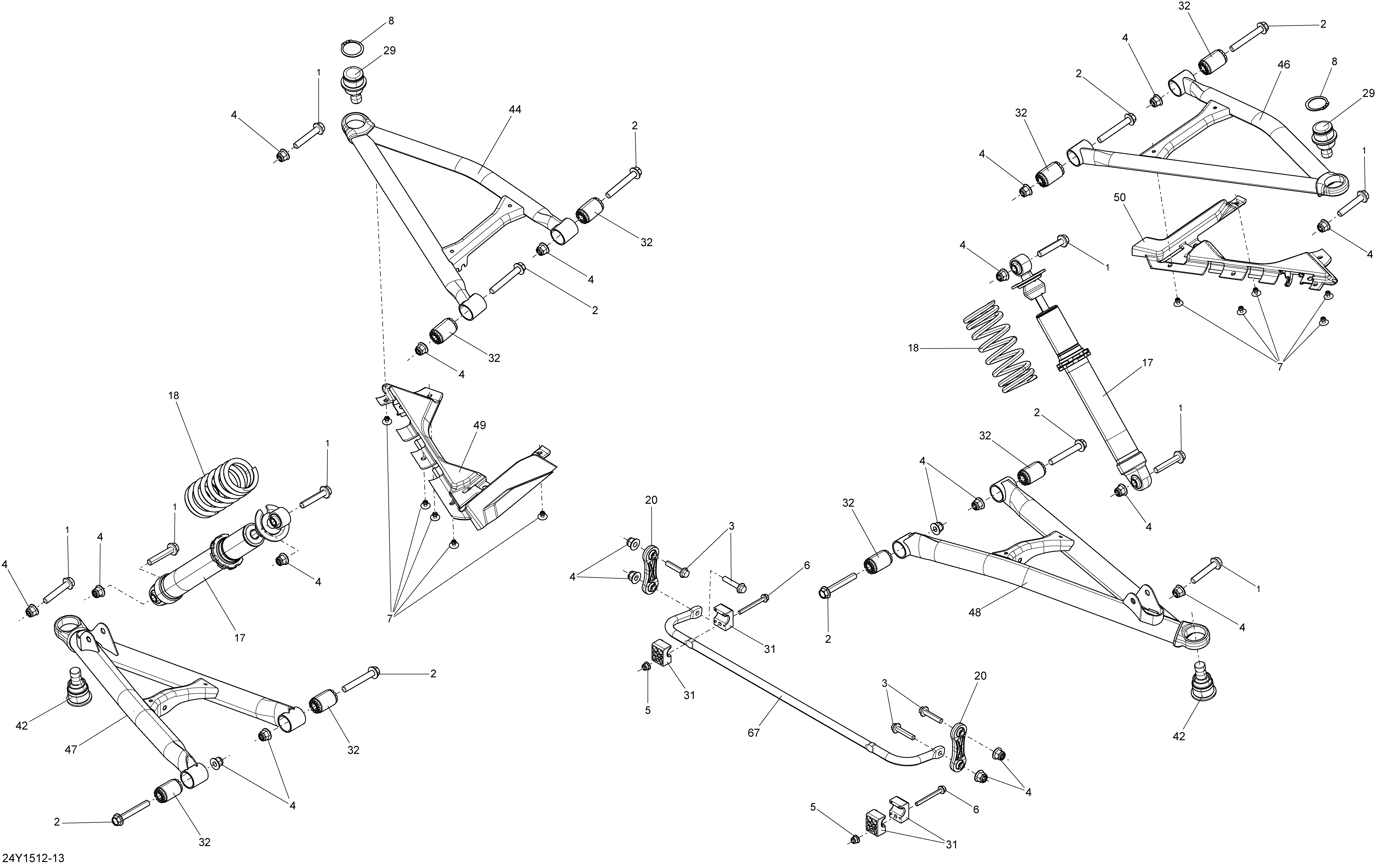

07- Suspension, Front _24Y1513 для BRP Spyder F3-S SE6 - 2015
-
№АртикулНазвание
-
1207605554 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
2207607056 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
3207684054 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
4233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
5233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6250000397 Hex. Flanged Screw M6 X 60Hex. Flanged Screw M6 X 60
-
7293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
8293370035 CirclipCirclip
-
17706001699 ShockShock
-
18706001771 SpringSpring
-
20706200671 Tie RodTie Rod
-
29706201371 Ball JointBall Joint
-
31706201429 BushingBushing
-
32706201519 Suspension Arm BushingSuspension Arm Bushing
-
42706201739 Ball JointBall Joint
-
44706201988 Carbon Black LH Upper Arm. Model-BlackCarbon Black LH Upper Arm. Model-Black
-
44706201988 Carbon Black LH Upper Arm. Model-RedCarbon Black LH Upper Arm. Model-Red
-
44706202007 Red LH Upper Arm. Model-MagnesiumRed LH Upper Arm. Model-Magnesium
-
44706202007 Red LH Upper Arm. Model-WhiteRed LH Upper Arm. Model-White
-
46706201989 Carbon Black RH Upper Arm. Model-BlackCarbon Black RH Upper Arm. Model-Black
-
46706201989 Carbon Black RH Upper Arm. Model-RedCarbon Black RH Upper Arm. Model-Red
-
46706202008 Red RH Upper Arm. Model-MagnesiumRed RH Upper Arm. Model-Magnesium
-
46706202008 Red RH Upper Arm. Model-WhiteRed RH Upper Arm. Model-White
-
47706201990 LH Lower Arm. Model-BlackLH Lower Arm. Model-Black
-
47706201990 LH Lower Arm. Model-RedLH Lower Arm. Model-Red
-
47706202009 Red LH Lower Arm. Model-MagnesiumRed LH Lower Arm. Model-Magnesium
-
47706202009 Red LH Lower Arm. Model-WhiteRed LH Lower Arm. Model-White
-
48706201991 Carbon Black RH Lower Arm. Model-BlackCarbon Black RH Lower Arm. Model-Black
-
48706201991 Carbon Black RH Lower Arm. Model-RedCarbon Black RH Lower Arm. Model-Red
-
48706202010 Red RH Lower Arm. Model-MagnesiumRed RH Lower Arm. Model-Magnesium
-
48706202010 Red RH Lower Arm. Model-WhiteRed RH Lower Arm. Model-White
-
49706201842 Cable CapCable Cap
-
50706201843 RH Cable CapRH Cable Cap
-
67706202018 Sway BarSway Bar
