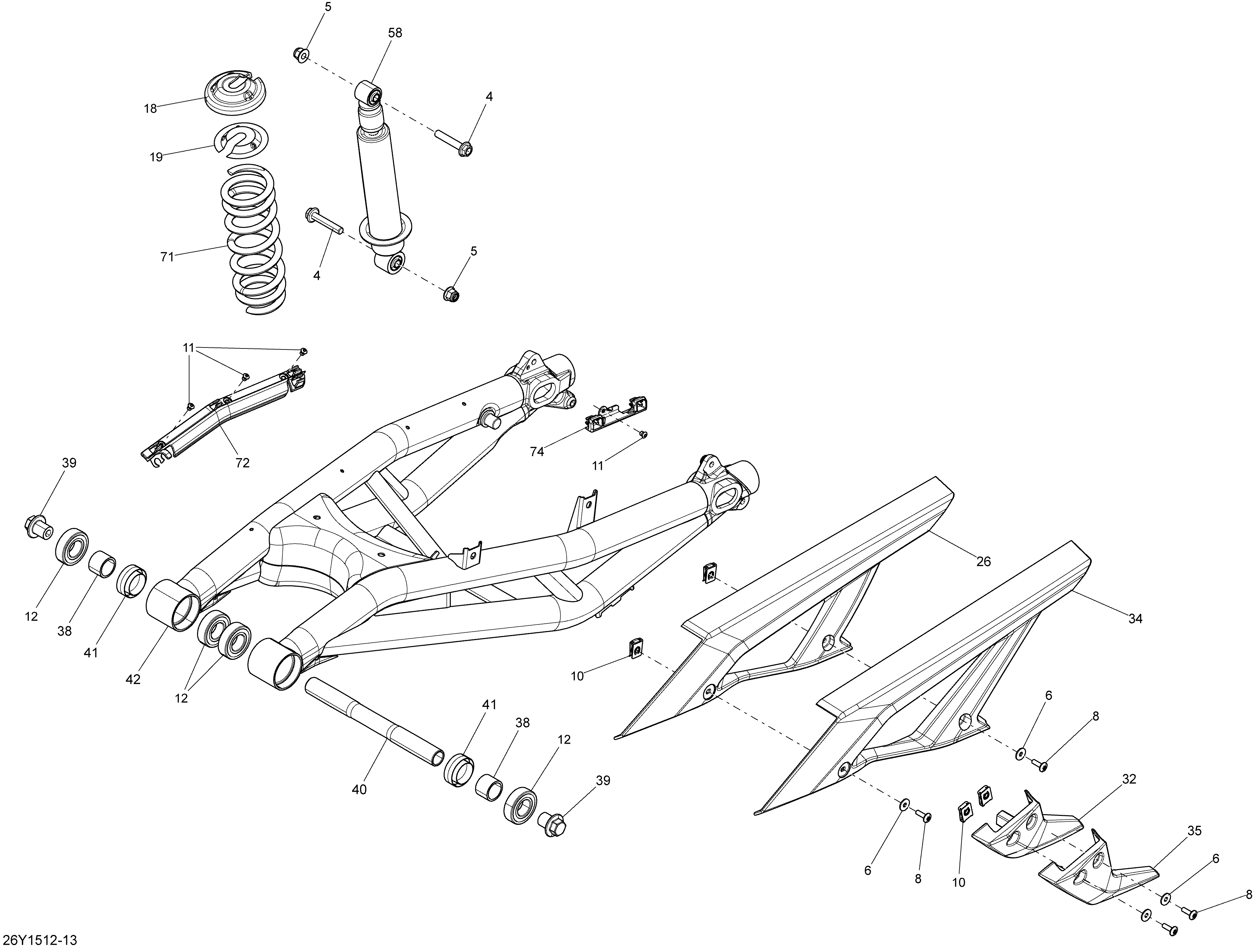

08- Suspension, Rear _26Y1513 для BRP Spyder F3-S SE6 - 2015
-
№АртикулНазвание
-
4207605554 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
5233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
6234062670 Flat Washer, StainlessFlat Washer, Stainless
-
8250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
10250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
11293150102 Rivet 3/16''Rivet 3/16''
-
11293150102 Rivet 3/16''Rivet 3/16''
-
12293350055 Ball BearingBall Bearing
-
18503193781 Spring StopperSpring Stopper
-
19503193782 CapCap
-
26705010380 Upper Belt Guard. Model-Australia, Brazil, Europe, JapanUpper Belt Guard. Model-Australia, Brazil, Europe, Japan
-
32705008756 Lower Belt Guard. Model-Australia, Brazil, Europe, JapanLower Belt Guard. Model-Australia, Brazil, Europe, Japan
-
34705010381 Upper Belt Guard. Model-North AmericaUpper Belt Guard. Model-North America
-
35705009059 Lower Belt Guard. Model-North AmericaLower Belt Guard. Model-North America
-
38706001152 SpacerSpacer
-
39706001579 Bolt M20Bolt M20
-
40706001182 Swing Arm AxleSwing Arm Axle
-
40a415107300 InsertInsert
-
41706001366 SleeveSleeve
-
42706001995 Carbon Black Swing Arm. Model-Dragon RedCarbon Black Swing Arm. Model-Dragon Red
-
42706001996 Can-Am Red Swing Arm. Model-Pure MagnesiumCan-Am Red Swing Arm. Model-Pure Magnesium
-
42706001996 Can-Am Red Swing Arm. Package-S Vegas White PearlCan-Am Red Swing Arm. Package-S Vegas White Pearl
-
42706001996 Can-Am Red Swing Arm. Package-S Steel Black MetCan-Am Red Swing Arm. Package-S Steel Black Met
-
58706001703 ShockShock
-
71706002113 SpringSpring
-
72706202131 Cable CapCable Cap
-
74706202264 Cable CapCable Cap
