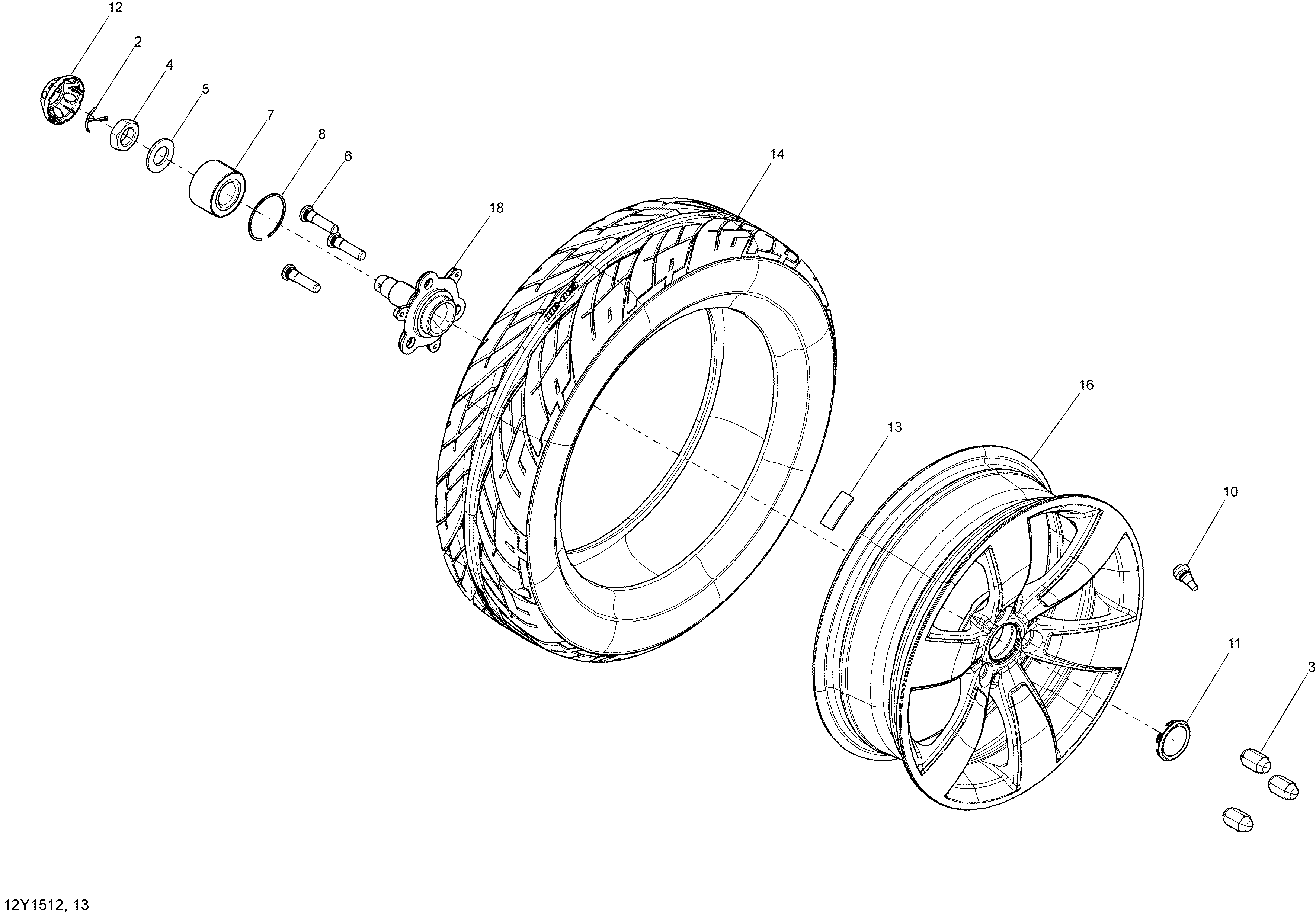

07- Drive System, Front _12Y1513 для BRP Spyder F3-S SE6 - 2015
-
№АртикулНазвание
-
2250400047 Cotter PinCotter Pin
-
3250100057 Chrome Wheel Nut M12 X 1.5Chrome Wheel Nut M12 X 1.5
-
4250100170 Hex. Jam Nut M24Hex. Jam Nut M24
-
5250200156 Flat WasherFlat Washer
-
6250300024 Wheel Stud M12 X 1.5Wheel Stud M12 X 1.5
-
7293350040 Cone BearingCone Bearing
-
8293370019 CirclipCirclip
-
10705400193 Rim Valve With CapRim Valve With Cap
-
11705400388 Wheel CapWheel Cap
-
12705401100 Wheel CapWheel Cap
-
13705502106 Self Adhesive WeightSelf Adhesive Weight
-
14706201324 Front TireFront Tire
-
16706201943 Deep Black Front RimDeep Black Front Rim
-
18706201895 Wheel Hub Ass'yWheel Hub Ass'y
