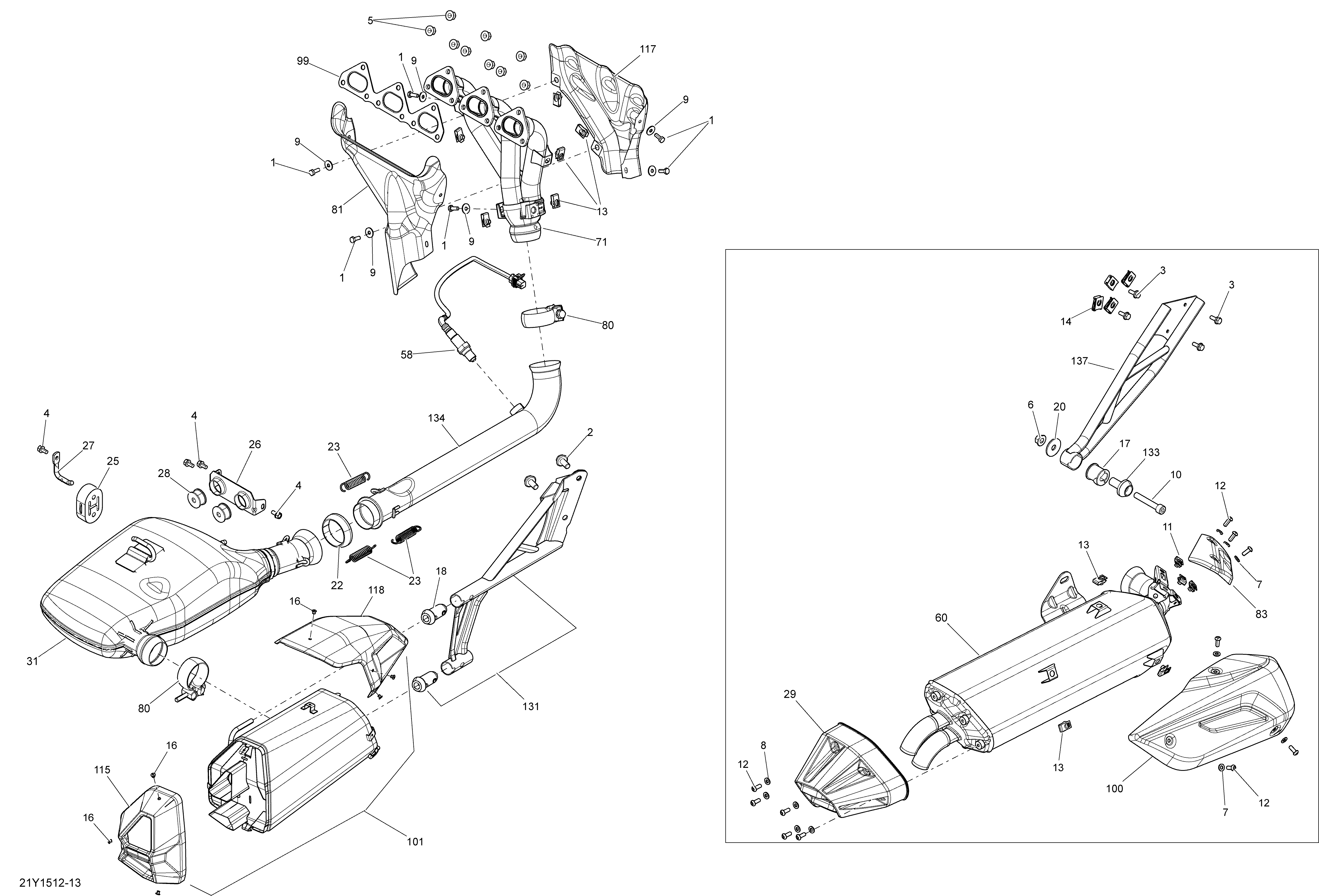

01- Exhaust System _21Y1513 для BRP Spyder F3-S SM6 - 2015
-
№АртикулНазвание
-
1207361660 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
2207502044 Flanged Hex Screw M10 X 20Flanged Hex Screw M10 X 20
-
3207561644 Hex. Flanged Screw M6 X 16, Scotch Grip. Long MufflerHex. Flanged Screw M6 X 16, Scotch Grip. Long Muffler
-
4210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
5233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
6233101600 Hex. Flanged Nut M10. Long MufflerHex. Flanged Nut M10. Long Muffler
-
7234061600 Flat Washer M6, Stainless. Chrome Long MufflerFlat Washer M6, Stainless. Chrome Long Muffler
-
7234061670 Flat Washer 6 mm. Carbon Black Long MufflerFlat Washer 6 mm. Carbon Black Long Muffler
-
8234061670 Flat Washer 6 mm. Carbon Black Long MufflerFlat Washer 6 mm. Carbon Black Long Muffler
-
8234061600 Flat Washer M6, Stainless. Chrome Long MufflerFlat Washer M6, Stainless. Chrome Long Muffler
-
9234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
10244006060 Socket Screw M10 X 60Socket Screw M10 X 60
-
11250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
12250000437 Socket Screw, M6 X 16. Chrome Long MufflerSocket Screw, M6 X 16. Chrome Long Muffler
-
12250000616 Socket Screw, M6 X 16. Carbon Black Long MufflerSocket Screw, M6 X 16. Carbon Black Long Muffler
-
13250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
14250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
16293150059 Pop-Rivet 5/32Pop-Rivet 5/32
-
17293830162 Anti-Vibration RubberAnti-Vibration Rubber
-
18293830167 Rubber BushingRubber Bushing
-
20506150000 Washer 10 mm. Long MufflerWasher 10 mm. Long Muffler
-
22514054174 Exhaust GasketExhaust Gasket
-
23415107100 SpringSpring
-
25707600638 Rubber BumperRubber Bumper
-
26707600661 Front BracketFront Bracket
-
27707600666 Retaining RodRetaining Rod
-
28707600702 Anti-Vibration RubberAnti-Vibration Rubber
-
29707600950 Chrome Muffler End Cap. Chrome Long MufflerChrome Muffler End Cap. Chrome Long Muffler
-
29707601048 Carbon Black Muffler End Cap. Carbon Black Long MufflerCarbon Black Muffler End Cap. Carbon Black Long Muffler
-
31707600793 Primary MufflerPrimary Muffler
-
58707600872 Oxygen SensorOxygen Sensor
-
60707601342 Chrome Muffler Ass'y. Chrome Long MufflerChrome Muffler Ass'y. Chrome Long Muffler
-
60707601341 Carbon Black Muffler Ass'y. Carbon Black Long MufflerCarbon Black Muffler Ass'y. Carbon Black Long Muffler
-
71707600937 Exhaust ManifoldExhaust Manifold
-
80707600980 Exhaust ClampExhaust Clamp
-
81707601028 Inner Heat DeflectorInner Heat Deflector
-
83707601054 Carbon Black Heat Shield. Long MufflerCarbon Black Heat Shield. Long Muffler
-
99707601257 Exhaust SealExhaust Seal
-
100707601383 Chrome Heat Shield. Chrome Long MufflerChrome Heat Shield. Chrome Long Muffler
-
100707601381 Carbon Black Heat Shield. Carbon Black Long MufflerCarbon Black Heat Shield. Carbon Black Long Muffler
-
101707601398 Chrome Muffler Ass'y. Chrome Short MufflerChrome Muffler Ass'y. Chrome Short Muffler
-
101707601559 Carbon Black Muffler Ass'y. Carbon Black Short MufflerCarbon Black Muffler Ass'y. Carbon Black Short Muffler
-
115707601507 Chrome Muffler End Cap. Chrome Short MufflerChrome Muffler End Cap. Chrome Short Muffler
-
115707601561 Carbon Black Muffler End Cap. Carbon Black Short MufflerCarbon Black Muffler End Cap. Carbon Black Short Muffler
-
117707601504 External Heat DeflectorExternal Heat Deflector
-
118707601506 Chrome Heat Shield. Chrome Short MufflerChrome Heat Shield. Chrome Short Muffler
-
118707601560 Carbon Black Heat Shield. Carbon Black Short MufflerCarbon Black Heat Shield. Carbon Black Short Muffler
-
131707601550 Muffler SupportMuffler Support
-
133707601657 Bushing. Long MufflerBushing. Long Muffler
-
134707601605 Exhaust Tuned PipeExhaust Tuned Pipe
-
137707601683 Muffler Support. Long MufflerMuffler Support. Long Muffler
